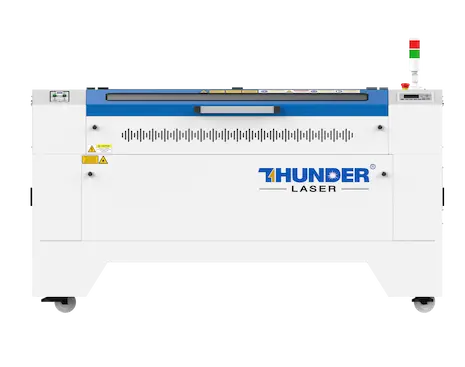

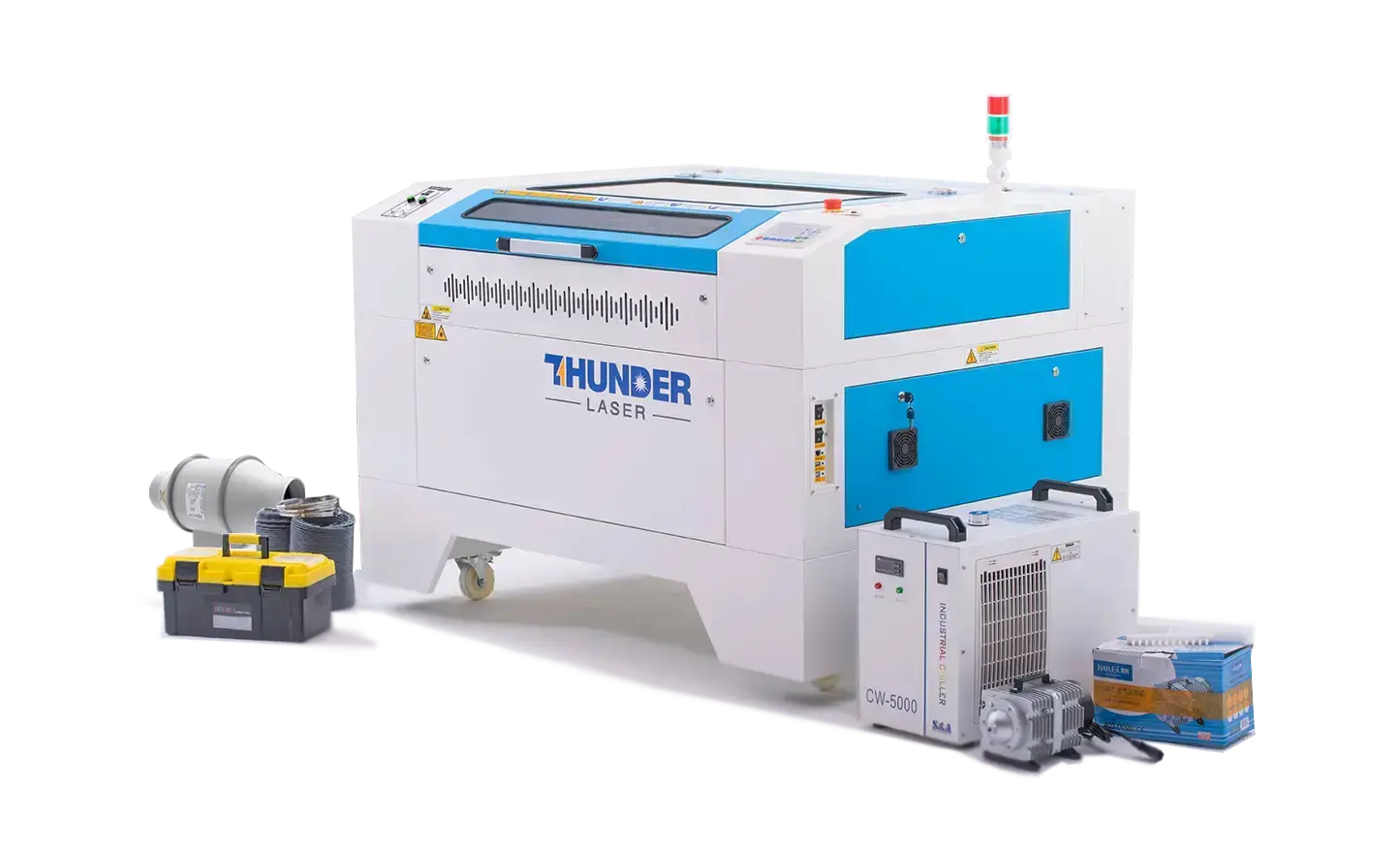

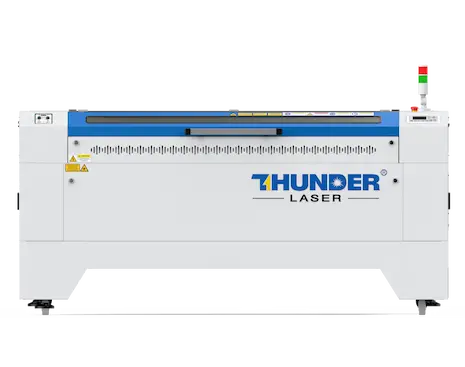

Nova Laser Cutting Machine

Equipped with a cutting-edge hybrid servo, THUNDER LASER’s Nova Laser Cutting Machine works faster and more silent than competitors, leading to consistently accurate cuts. Its proprietary dual air-assist system can be set separately, allowing different processing effects for diverse 3D cutting.



Top-tier components, quality production, and a strict inspection process guarantee that our machines have unbeatable stability and require minimal maintenance. Moreover, our CE class 1 and FDA class 2-certified machines have advanced safety features that give operators more confidence to make any 3D design.

Laser Type : DC CO2

Work Area : 600 x400 up to 1600x1000mm

Laser Power : 40w, 60w, 80w, 100w, 130w

Z-axis : 150mm, 230mm

企业微信20220224 104720@2x

Features

Hybrid Servo motor

Hybrid Servo motors

Thunder Laser cutting machine use the Hybrid servo motor. This motor works with low noise and high speed. Meanwhile it has the impact protection and high security to work stable. The more important thing is that this motor can provide very fast acceleration and through the closed-loop control it can make sure the high speed working without losing steps, which can greatly increase the working efficiency of the laser machine.

High Quality laser tube

Every laser tube must pass the strict quality control test before installed on the Thunder laser cutting machine. After finished assembling the laser cutting machine, we will make many tests of cutting and engraving to further make sure the working quality and stability of laser cutting and engraving machine. After these tests, the low quality laser tube with bad laser beam, unstable laser output power, and slow response to switch would be ruled out. That’s why Thunder Laser cutting machine can send out the more refined laser dot and offer the more delicate cutting engraving effect.

High Quality laser tube
Dual Air Assist system

Dual Air Assist system

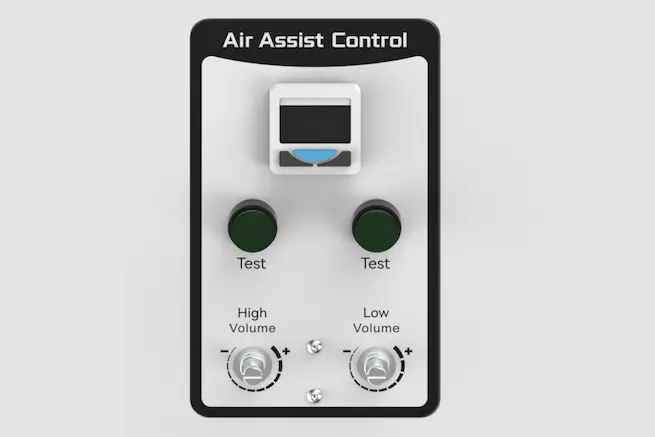

There’re 2 modes for air assist. Cut and Engrave. The 2 air solenoids are controlled with the smart board. There are also 2 needle valves mounted on the front left panel so you can adjust the flow for each mode as well as momentary push buttons to test the flow. When you press a button the corresponding stage activates for 10 seconds.



So now you can define high(Cut) or low(Engrave) air assist by toggling the air assist function in each layer. With air OFF you get the engrave mode automatically. It offer ON and OFF in the drop down to CUT and Engrave in the current version (this is specific to the Thunder Laser version of RDWorks). All you need to remember when applying layer settings is that air assist OFF will activate the Engrave stage and air assist ON will activate the Cut stage.



This also works on Lightburn software, for engraving just toggle air assist off in the cut settings in lightburn. For cutting, toggle air assist ON and it will choose the cut air stage.

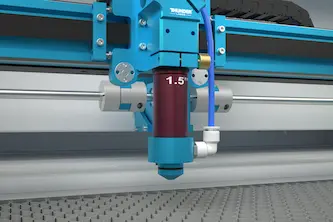

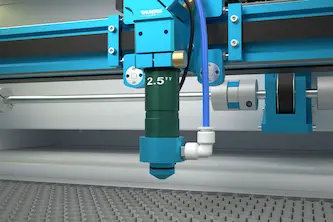

Quick & Accurarte Autofocus

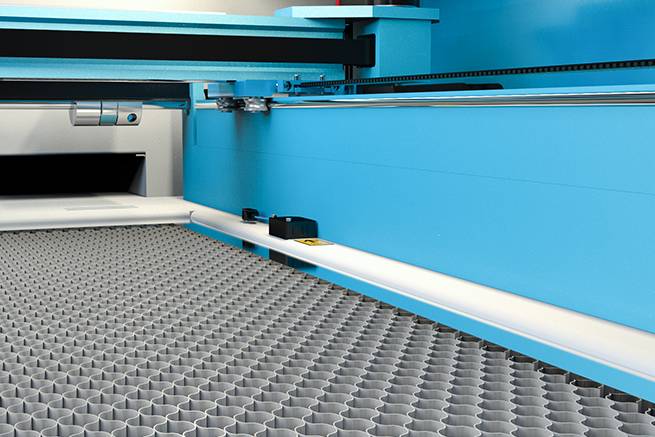

In order to achieve the best cutting result by wood laser cutting machine, we will make the laser beam focus when it contact the material on laser cutter engraver, and the smaller laser beam, the better performance. Auto focus function can move up and down the working table to make sure the most proper distance between the material and the focal lens.



By using the auto focus function of acrylic laser cutter, users can focus quickly and accurately before cutting and engraving which saves the time of cutting and engraving and brings the better cutting engraving result.

Quick Accurarte Autofocus
Red dot pointer

Red dot pointer

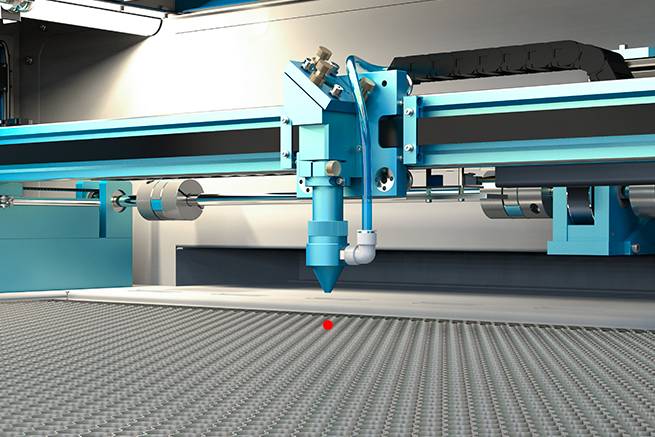

As we know co2 laser is invisible, we cannot get the position of laser dot while laser engraving machine working. However, we need to know the accurate position before dealing with the material most of the time, then how can we achieve it? The special red dot pointer of Thunder Laser engraver cutter can help you to solve this problem. Thunder Laser engraver cutter use a special laser beam combiner to combine the 650nm wavelength of red light and the 1064nm wavelength of co2 laser engraving cutting machine into one path so the invisible co2 laser becomes visible. The red dot pointer helps you to clear the accurate laser position before cutting and engraving, to greatly reduce the deviation and to save your time and material waste.

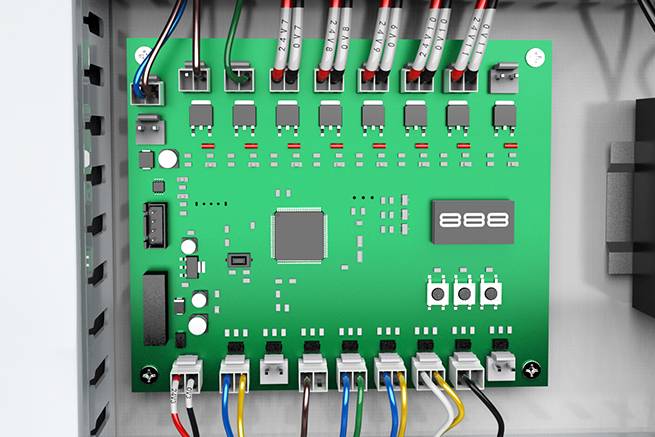

Smart Energy safety board

Smart board is used to control exhaust fan, air pump and alarm lamp while laser working.



The smart board is specially designed by Thunder Laser to automatically control the on/off of exhaust fan and air pump according to the need of the laser work.



It facilitates energy saving and noise reduction. Meanwhile, colors of alarm lamp are also controlled by it to show the working state of the laser.



For example:



When the machine is not at work, or working with the top cover close, the alarm lamp is in green color.



If the top cover opened during laser working, the alarm lamp turns red.Besides, manually or automatically you can extend the working time of exhaust fan, air assist by setting on the smart board.

Quick Accurarte Autofocus

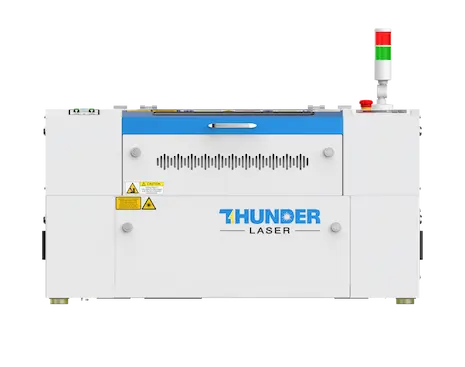

nova 5

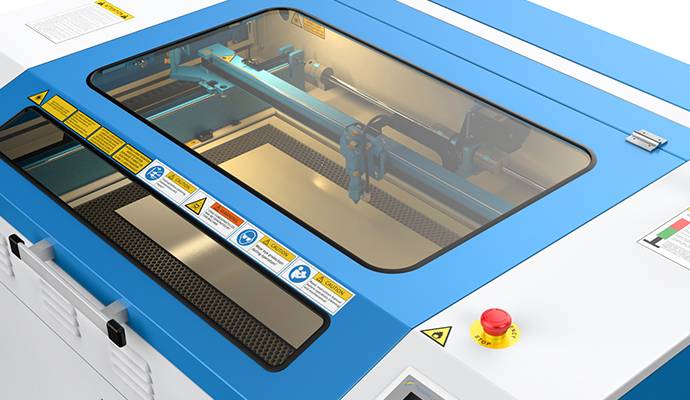

Safety Is Our Priority

User safety plays a significant role in designing and manufacturing our Nova Laser Cutting machines, giving the operators the confidence to use the machine entirely. In addition to the essential safety devices placed on the machine, like emergency stops, alarm lamps, water protection switches, and earth wiring, we have other security measures in place to protect users.



The built-in heat detector alarm automatically switches on in the event of abnormal machine activity. Additionally, our Nova laser is equipped with 5x open flap protection. Also, the durable protection window made from tempered glass material keeps the laser within the production space, keeping the operators away from the laser beam.

3D Cutting

Unleash
Your Inspiration

We constantly strive to elevate 3D processing, and our Nova Laser Cutting Machine allows for advanced designing as no other machine can. From the motorized table that allows for different focus distances and dual air-assist system that can be switched between different layers, you can achieve any 3D design concept on various materials.

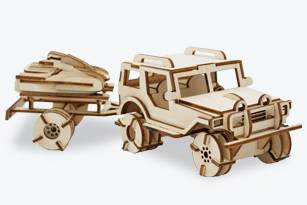

laser cutting sample

Explore in Depth

3. Dual Air Assist system

Dual Air Assist system

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Aenean euismod bibendumstrsdtydtyd

Learn More >

4. Quick Accurarte Autofocus Quick Accurarte Autofocus



Lorem ipsum dolor sit amet, consectetur adipiscing elit. Aenean euismod bibendumstrsdtydtyd

Learn More >

5. Red dot pointer Red dot pointer

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Aenean euismod bibendumstrsdtydtyd

Learn More >

1. Hybrid Servo motor300副本 Hybrid Servo Motor



Lorem ipsum dolor sit amet, consectetur adipiscing elit. Aenean euismod bibendumstrsdtydtyd

Learn More >

2. High Quality laser tube High Quality laser tube

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Aenean euismod bibendumstrsdtydtyd

Learn More >

6. Smart Energy safety board Smart Energy safety board

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Aenean euismod bibendumstrsdtydtyd

Learn More >

highlights picture

Technical Data

Laser System NOVA 24 NOVA 35 NOVA 51 NOVA 63
Laser Tube Wattage 40-60Watt 80-100Watt 100-130Watt 100-130Watt

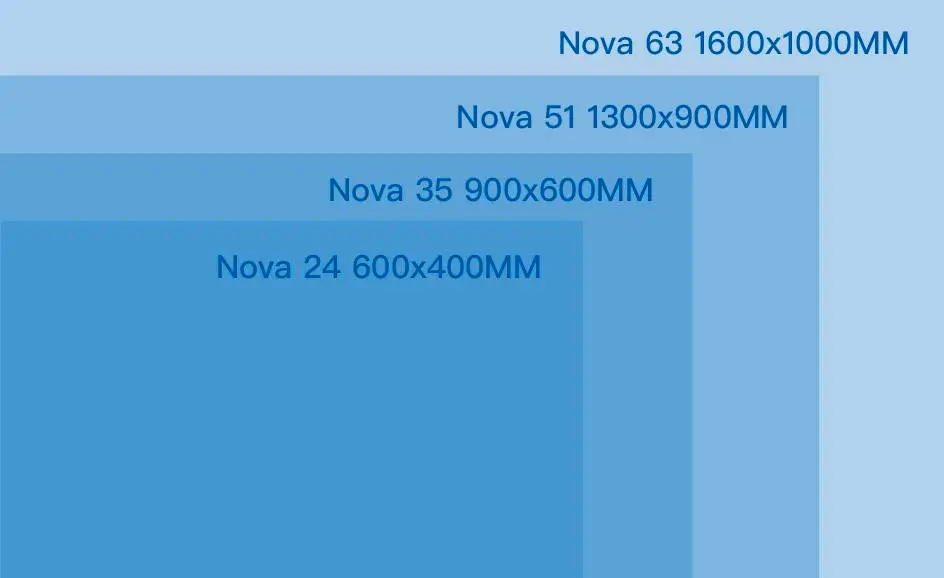

Work Area 600x400mm(23.6″ x 15.7″) 900x600mm(35.4″ x 23.6″) 1300x900mm(51.2″x35.4″) 1600x1000mm(63.0″x39.4″)
Max Part Size (WxLxH) Front door closed 700x530x170mm(after taking out the honeycomb bed)(27.6″ x 20.9″ x6.7″) 1000x730x230mm(39.4″ x 28.7″ x9.0″) 1400x1030x230mm(55.1″ x 40.6″ x9.0″) 1700x1130x230mm(66.9″ x 44.5″ x9.0″)
Pass-through door 700x∞x20mm(27.6″ x ∞” x 0.8″) 1000x∞x20mm(39.4″ x ∞” x0.8″) 1400x∞x20mm(55.1″ x ∞” x0.8″) 1700x∞x20mm(66.9″ x ∞” x0.8″)
Table Size 700x530mm(27.6″ x 20.9″) 1000x730mm(39.4″ x 28.7″) 1400x1030mm(55.1″ x40.6″) 1700x1130mm(66.9″ x 44.5″)
Z Axis Height 150mm(5.9″) 230mm(9.1″) 230mm(9.1″) 230mm(9.1″)
Dimensions(WxDxH) 1070x810x610mm(42.1″ x 31.9″ x24″) 1500x1105x1040mm(59.1″ x 43.5″ x40.9″) 1900x1405x1040mm(74.8″ x 55.3″ x40.9″) 2200x1505x1040mm(86.6″ x 59.3″ x40.9″)
Net Weight 130kgs(287lbs) 310kgs(683lbs) 430kgs(948lbs) 470kgs(1036lbs)
Laser Type Sealed Co2 Glass Laser Tube
Cooling Water Cooled
Motion Control System High-Speed Hybrid servo motors
Maximum Speed 1000mm/S(39.4 IPS)
Speed and Power Control (engraving depth) Computer or manually controlled speed and power from 0-100%. Vector color mapping sets speed and power settings using RGB color mapping.
Operating Modes Optimized raster, vector, and combined mode

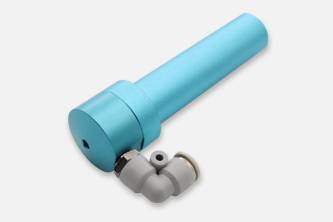

Resolution(DPI) User-controlled from 100 to 500DPI(standard laser head), up to 1000 DPI(HR head)
Computer Interface Ethernet and USB Connection
Compatible Operating Systems Windows XP/2000/Vista/7/8/10
Buffer Memory 128MB Standard
Display Panel 3.5″ LCD panel showing current file, total working time, laser power, speed, etc.
Electrical Requirements 110 to 240 volts, 50 or 60 Hz, single phase
Ventilation System Integral exhaust fan. There is 1 output port, 5.7″ (145 mm) in diameter in the rear of the case.



Compatible Materials

Material Engrave Cut Material Engrave Cut
Wood Rubber
Acrylic Wood Veneer
Delrin Fiberglass
Cloth Plastic
Leather Cork
Mat Board Corian
Melamine Twill
Paper Anodized Aluminum ×
Mylar Painted Metals ×
Pressboard Tile ×
Glass × Stainless Steel * ×
Coated Metals × Brass * ×
Ceramics × Titanium * ×
Marble × Bare Metal * ×

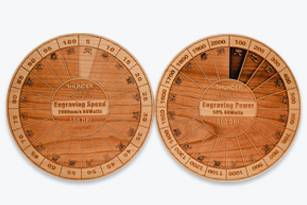

What THUNDER LASER Cutter
Can Create

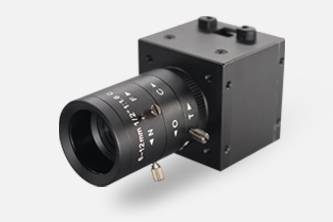

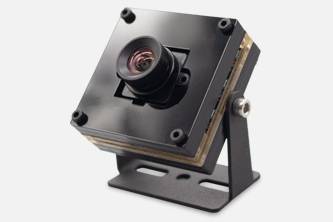

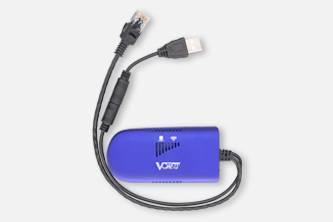

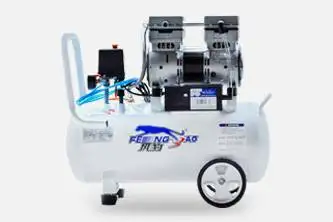

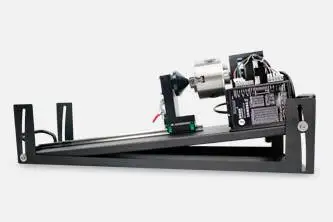

Optional Accessories
