How to Clean a CO₂ Laser Cutter Lens & Mirrors?

Smoke, dust, and processing residue can gradually build up on laser optics during cutting and engraving. A dirty lens or mirror can reduce laser performance, affect engraving and cutting results, and increase heat on the optical surface.

Regular inspection and proper cleaning help keep your CO₂ laser optics performing consistently and extend their service life. This guide explains how to clean a laser cutter lens and mirrors safely, what tools to use, how often to inspect your optics, and how to identify signs of contamination or damage.

For a broader machine-care routine beyond the optical system, see our laser cutter maintenance guide.

1. When Should You Clean a Laser Cutter Lens and Mirrors?

How often you should clean your laser cutter lens and mirrors depends on daily operating time, how frequently the machine is used, and the amount of smoke and residue produced by the materials you process. Materials that generate more smoke, dust, or residue, such as acrylic and rubber, can contaminate the optics faster, so regular inspection is more useful than relying on a fixed cleaning interval.

Check the lens and mirrors when you notice:

• Reduced cutting power or a need for additional passes
• Inconsistent engraving results
• Visible dust, haze, smoke residue, or spots on the optical surface
• More residue than usual after processing smoky or dusty materials
• Unusual heat buildup around the lens or optics

The condition of the optics should always determine the actual cleaning timing. Visible dust, haze, smoke residue, oil-like deposits, or an unexpected drop in cutting or engraving performance are all reasons to inspect and clean the optics sooner.

Our technical team recommends using the following schedule as a practical starting point:

A practical inspection and cleaning schedule based on laser usage intensity and operating frequency.

For frequently used machines, make optical inspection part of your routine maintenance. After a large batch of smoke-heavy or residue-heavy jobs, we recommend inspecting and cleaning the lens and mirrors at the end of the working day, even when the machine would normally fall into a lighter-use cleaning schedule.

A simple rule is to combine operating time + material residue + visual inspection when deciding when to clean. A lightly used machine processing clean jobs may go much longer between cleanings, while a machine performing several hours of smoke-heavy engraving may need attention the same day.

2. What Do You Need to Clean a Laser Cutter Lens and Mirrors?

Prepare the correct cleaning tools before touching any optical surface. Laser lenses and mirrors use delicate coatings, so clean tools and an approved cleaning solution are essential.

Recommended tools and cleaning materials for maintaining coated laser lenses and mirrors.

Recommended cleaner: Use the lens cleaning solution supplied with your Thunder Laser whenever available. For replacement cleaning fluids, choose an optical-grade cleaner specifically suitable for coated laser optics and follow the cleaning guidance for your machine model. Some Thunder Laser documentation recommends anhydrous ethanol for specific optics; always confirm compatibility with the lens or mirror coating before use.

Avoid isopropyl alcohol (IPA) unless specifically approved for the optic. Thunder Laser has received reports of IPA damaging certain lens coatings.

Different focal lenses can also use different optical constructions and coatings. See our CO₂ laser lens guide for more information about common lens types and focal lengths.

2.1 What Should You Avoid When Cleaning Laser Optics?

A laser optic can be damaged by unsuitable cleaning materials or excessive pressure. Keep the following away from the lens and mirrors unless your machine documentation specifically approves them:

• Household glass cleaner
• Paper towels, facial tissue, or other rough paper products
• Used or contaminated cleaning cloths
• Compressed air that may release moisture or propellant onto the optic
• Sharp tools or abrasive materials
• Cleaning solvents that have not been approved for that optical component

Always use a fresh, clean tissue or swab for each cleaning pass. Reusing a contaminated swab can drag particles across the optical coating and increase the risk of scratching.

If you have questions about the correct cleaning solution or procedure for your machine and optical components, contact our technical team at tech@thunderlaser.com for comprehensive support.

3. How to Clean a CO₂ Laser Focus Lens: Step-by-Step

The following procedure uses the Thunder Laser Nova Series as an example. The same general maintenance principles can also apply to other CO₂ laser machines, while the exact disassembly and lens orientation should follow the documentation for your specific model.

Step-by-step video showing the basic lens and mirror cleaning workflow.

3.1 Turn Off the Machine and Let the Optics Cool

Turn off the laser machine completely and disconnect it from the power source before working on the lens. We recommend waiting 5–10 minutes after shutdown to ensure the system is safe and any residual heat has dissipated, especially if the machine has just finished a job.

Before removing the focus lens, review the procedure for your machine model and note the original assembly configuration so the lens holder and related components can be restored correctly after cleaning.

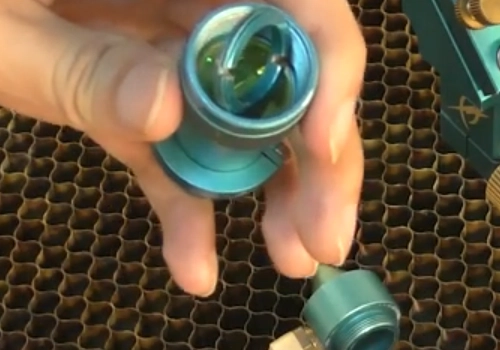

3.2 Remove the Focus Lens Carefully

Wear clean, powder-free gloves to avoid transferring fingerprints or oil to the optical surfaces.

First, lower the laser bed to ensure there is sufficient distance between the laser head and the bed. Then move the laser head to a more open, central area of the machine. Place a clean, soft cloth on the laser bed directly underneath the laser head to protect the bed and small components during removal.

Remove the laser head or lens holder according to the procedure for your laser model. Use the supplied lens tool where applicable and handle the lens only by its edges.

3.3 Gently Remove Dust with a Bulb Blower

Before wiping the lens, use a bulb blower to gently remove dust or particles from the optical surface. Do not blow on the lens with your mouth, as saliva can create additional contamination. A bulb blower removes loose dust without requiring direct contact with the coated surface.

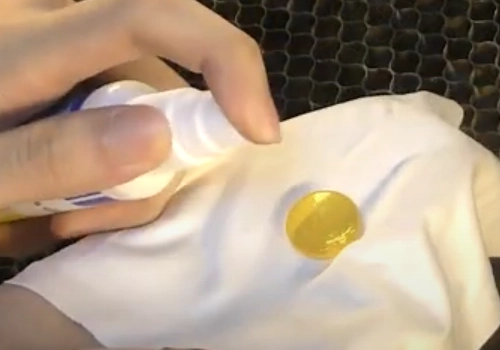

3.4 Clean the Lens with the Approved Cleaning Solution

Apply a small amount of the approved optical cleaning solution to a clean optical swab or lint-free optical tissue. Gently wipe the lens in a circular motion or Z-pattern, starting from the center and moving outward. Avoid excessive pressure because coated optical surfaces can be scratched by trapped contamination.

Apply a small amount of approved optical cleaner and wipe the lens gently with clean optical material.

3.5 Inspect the Lens Under a Bright Light

After cleaning, hold the lens under a bright light and inspect it from different angles.

Check for:

• Dust or particles
• Haze or cloudy areas
• Cleaning streaks
• Persistent dark or burned spots
• Scratches
• Cracks
• Visible coating damage

If residue remains, repeat the cleaning process with a fresh swab or tissue. Persistent burn marks, cracks, or coating damage may indicate that the lens requires replacement.

3.6 Reinstall the Focus Lens Correctly

Once the lens is clean and dry, reinstall it in the correct orientation and secure the lens holder according to the instructions for your machine model. Confirm that all parts are properly seated before returning the machine to operation.

4. How to Clean CO₂ Laser Mirrors: Step-by-Step

CO₂ laser mirrors guide the laser beam from the laser source to the focusing lens. Smoke, dust, and fine particles on the mirror surface can reduce the amount of laser energy that reaches the material and may gradually damage the mirror coating.

The following procedure uses the Thunder Laser Nova Series as an example. For routine maintenance, we recommend cleaning the mirrors directly in their installed position. Keep the mirror mounts and adjustment screws in their original settings throughout the cleaning process.

4.1 Identify and Inspect the Laser Mirrors

Power off the machine completely and disconnect it from the power source. Wait at least 10 minutes before working around the optical system. Locate the mirrors along the laser beam path and inspect each optical surface under a bright light.

Inspect each mirror under a bright light and look for:

• Dust or loose particles
• Smoke film or haze
• Fingerprints or oily residue
• Dark or burned spots
• Scratches
• Cracks
• Peeling or damaged optical coating

Pay particular attention to contamination around the center of the mirror, where the laser beam normally strikes.

4.2 Remove Loose Dust First

Use a bulb blower to gently remove loose dust and particles from the mirror surface before any contact cleaning.

Hold the blower close enough to direct air across the surface without allowing the nozzle to touch the mirror. Removing loose particles first reduces the chance of dragging abrasive contamination across the optical coating during cleaning.

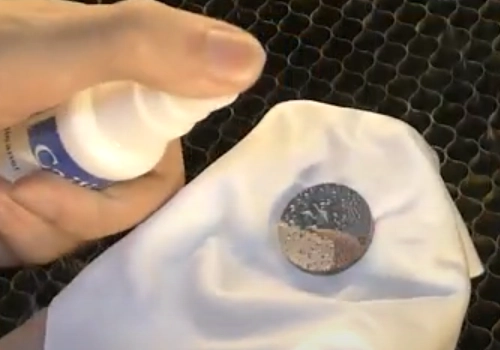

4.3 Clean the Mirror with an Approved Optical Cleaning Solution

Apply a small amount of approved optical cleaning solution to a fresh optical swab or lint-free optical tissue.

Gently wipe the mirror surface using light, controlled pressure. Move across the surface smoothly rather than repeatedly rubbing the same area.

For each additional cleaning pass:

1. Use a fresh swab or a clean section of optical tissue.
2. Apply only enough cleaning solution to wet the cleaning surface.
3. Wipe gently across the contaminated area.
4. Allow the mirror to dry and inspect it again.

Repeat the process as needed until visible dust, haze, fingerprints, and residue have been removed.

4.4 Inspect the Mirror After Cleaning

After the mirror is dry, inspect it from several angles under a bright light.

A clean mirror should have a clear and even optical surface without visible dust, haze, fingerprints, or cleaning streaks.

Persistent dark spots, burn marks, scratches, cracks, or coating damage may indicate permanent optical damage. In these cases, further inspection or mirror replacement may be required.

5. How to Tell If a Laser Lens or Mirror Is Dirty or Damaged

Dust, smoke residue, and haze can usually be removed through proper cleaning. Physical or coating damage requires closer inspection and may require optic replacement.

5.1 Signs Your Laser Optics Need Cleaning

Inspect the lens and mirrors when you notice visible dust, haze, residue, fingerprints, or other contamination on the optical surface.

Changes in machine performance can also indicate contaminated optics, including:

• Reduced cutting power
• Additional passes required to cut the same material
• Inconsistent engraving depth
• Uneven engraving results
• Gradual loss of processing efficiency

Cleaning the optics early helps prevent contamination from remaining on the surface during continued laser operation. Our laser cutting and machine care guide covers other factors that can also affect cutting and engraving consistency.

5.2 Signs of Laser Lens or Mirror Damage

After cleaning, inspect each optical surface under a bright light from several angles.

Pay close attention to:

• Persistent dark or burned spots
• Scratches
• Cracks
• Chipped edges
• Peeling or damaged coating
• Permanent discoloration
• Cloudy areas that remain after proper cleaning

These conditions can affect how the optic transmits or reflects laser energy and may continue to reduce performance during operation.

5.3 When Should You Replace a Laser Lens or Mirror?

Replacement should be considered when visible physical or coating damage remains after proper cleaning, especially when the damage is located in the laser beam path.

A damaged optic can absorb or scatter more laser energy, which may lead to further heating and performance loss. Stop using an optical component when significant cracks, coating deterioration, or obvious beam-path damage is present until its condition has been properly evaluated.

6. How to Keep Laser Optics Cleaner for Longer

Good operating and maintenance habits can reduce how quickly smoke, dust, and residue accumulate on your laser lens and mirrors.

6.1 Keep the Exhaust System Working Efficiently

A well-functioning laser exhaust system removes smoke and airborne particles from the working area before they can settle on the optics. Regularly check the exhaust fan, ducting, filters, and air path for buildup or blockage, especially when processing materials that generate heavy smoke.

Workshops that cannot vent directly outdoors can also evaluate a suitable filtration solution such as the Thunder Air fume extractor. The laser cutter venting vs. fume extractor guide explains the differences between these two approaches.

6.2 Use Proper Air Assist

Air Assist helps move smoke and debris away from the cutting or engraving area and reduces the amount of contamination reaching the laser head.

Make sure the airflow is appropriate for the material and process you are using and that the air nozzle remains clean and unobstructed. See our Air Assist guide for more information about adjusting airflow for different engraving and cutting applications.

6.3 Keep the Laser Bed and Interior Clean

Dust, scraps, soot, and residue left inside the machine can become airborne again during operation.

Remove debris from the laser bed regularly and clean accumulated residue from accessible interior surfaces as part of routine machine maintenance.

6.4 Inspect Optics After High-Residue Jobs

Some applications generate significantly more contamination than everyday processing.

Pay particular attention after:

• Deep wood engraving
• Long wood engraving or cutting runs
• Large-batch acrylic processing
• Jobs that generate heavy visible smoke
• Extended production runs with significant dust or residue

After these jobs, inspect the lens and mirrors at the end of the working day and clean them when contamination is visible. Also confirm that every substrate is suitable for laser use before processing; see our guide to materials that should not be laser processed.

6.5 Avoid Touching Optical Surfaces

Handle removable lenses only by their edges and keep fingers away from mirror and lens surfaces. Fingerprints introduce oils that can attract additional dust and residue.

Wear clean gloves whenever handling removable optical components.

6.6 Make Optics Inspection Part of Routine Maintenance

A quick visual inspection can catch contamination before it develops into a heavier deposit.

Combine your regular cleaning schedule with inspections based on machine usage, processed materials, and actual optic condition. This approach keeps the optical path clean while reducing unnecessary contact with delicate coated surfaces.

Conclusion

Build lens and mirror inspection into your regular maintenance routine, and adjust the cleaning frequency based on machine usage, processed materials, and the actual condition of the optics. Smoke-heavy or high-residue jobs may require inspection and cleaning immediately after production.

Use the correct optical cleaning tools, handle coated surfaces carefully, and replace optics when permanent damage such as cracks, burn marks, or coating deterioration is found.

Regular optical maintenance works best as part of a complete machine-care routine that also includes exhaust, Air Assist, bed cleaning, material checks, and systematic parameter testing.
