Nova Laser Cutting Machine Manufacturer

Up to 1200mm/s

Air Cooling

1024MB

Device Memory

Max Cutting 1" Wood

Over-head Camera

Auto Focus

Dual Air Assist + Air Volume Sensor

Enhance engraving quality, and machine lifespan, ensuring cleaner cuts.

Nova Plus vs Nova

Key Upgrades

Nova Plus

Laser Tube

60W RF Metal Tube
(2000DPI 10000 hour lifespan)

Acceleration

2.5G
(25000 mm/s)

Speed

1200mm/s

Auto focus

Easier focusing, suitable for transparent acrylic, with auto-focusing capability anywhere.

Camera

Standard

Cooling

Air Cooling

Nova

60W Glass Tube
(500DPI 2000-4000 hour lifespan)

1G
(10000 mm/s)

1000mm/s

Not suitable for transparent acrylic, with a fixed focusing area.

Optional

Water Cooling

	Nova Plus	Nova
Laser Tube	60W RF Metal Tube (2000DPI 10,000 hour lifespan)	60W Glass Tube 500DPI 2000-4000 hour lifespan)
Acceleration	2.5G (25,000 mm/s)	1G (1,000 mm/s)
Speed	1200mm/s	1000mm/s
Auto focus	Easier focusing, suitable for transparent acrylic, with auto-focusing capability anywhere.	Not suitable for transparent acrylic, with a fixed focusing area.
Camera	Standard	Optional
Cooling	Alr Coollng	Water Cooling

4 Key Upgrades in the Nova Plus

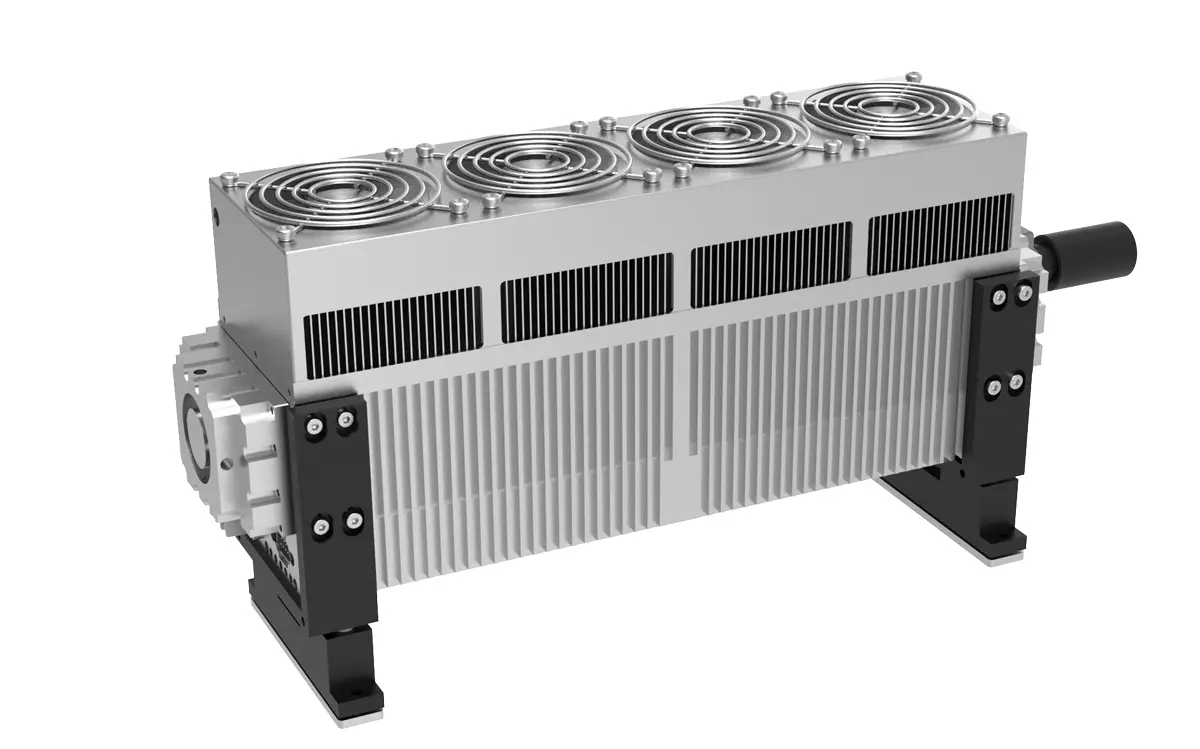

RF Metal Tube

The 60w metal tube design offers superior beam quality and a longer lifespan compared to glass tubes.

The beam expander helps improve the laser output quality, allowing our resolution to reach up to 2000 DPI.

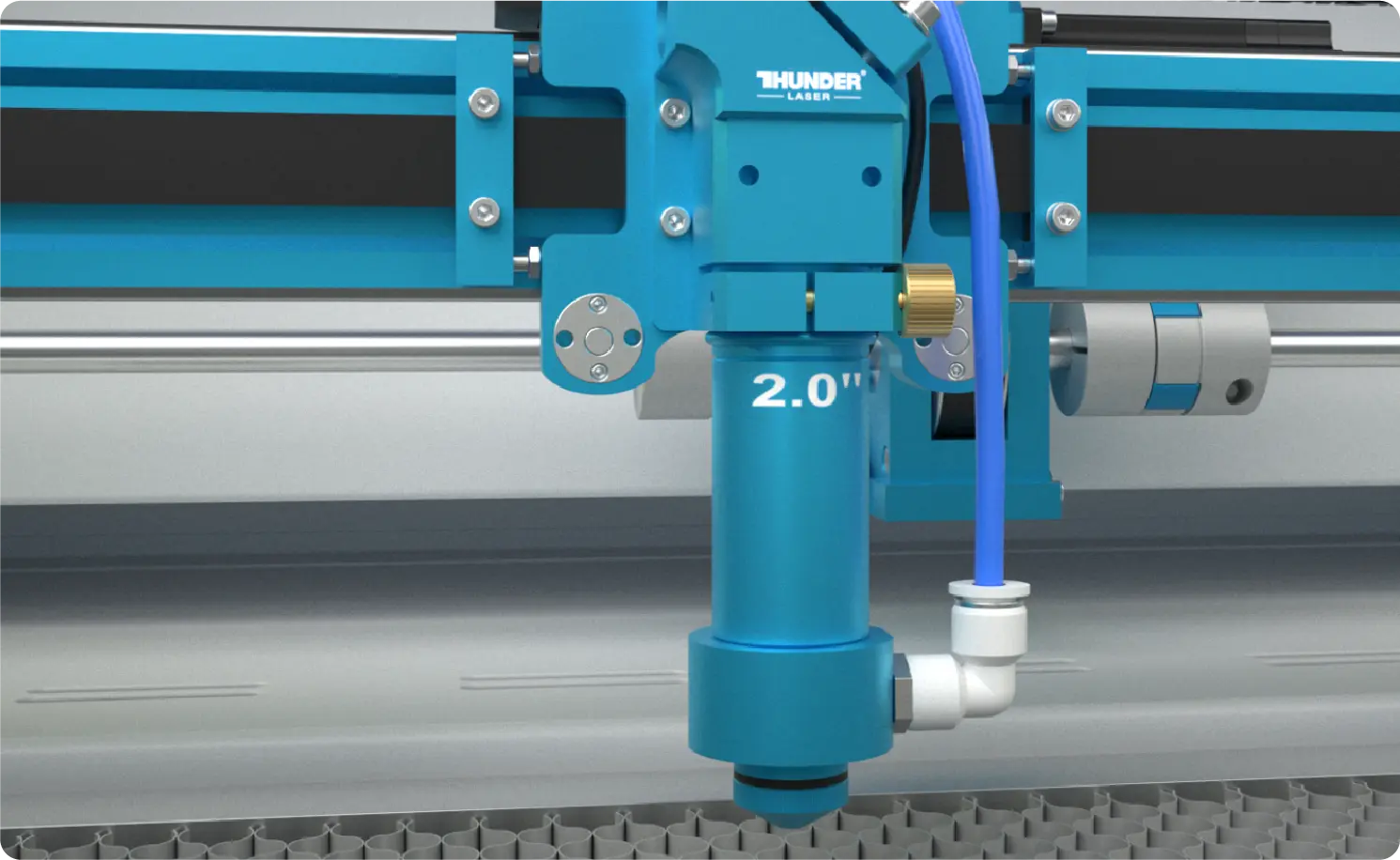

Touch-based Auto-focus

Auto-focus offers easier focusing, making it ideal for transparent acrylic. It provides auto-focusing capability anywhere on the material, ensuring precise and consistent results.

This feature simplifies the setup process, enhancing workflow efficiency and improving overall engraving quality.

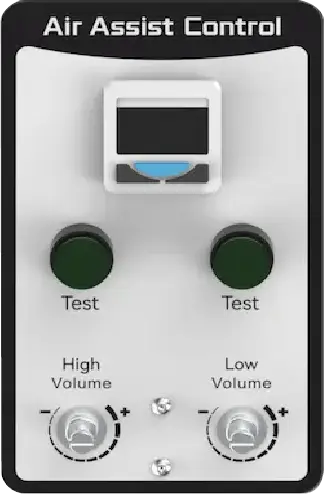

Dual Air Assist & Air Volume Sensor

Dual Air Assist for improved airflow and cleaner cuts, and an air volume sensor that ensures consistent air pressure for optimal performance.

These features enhance engraving quality, reduce heat and smoke buildup, and extend the machine’s lifespan for reliable, efficient operation.

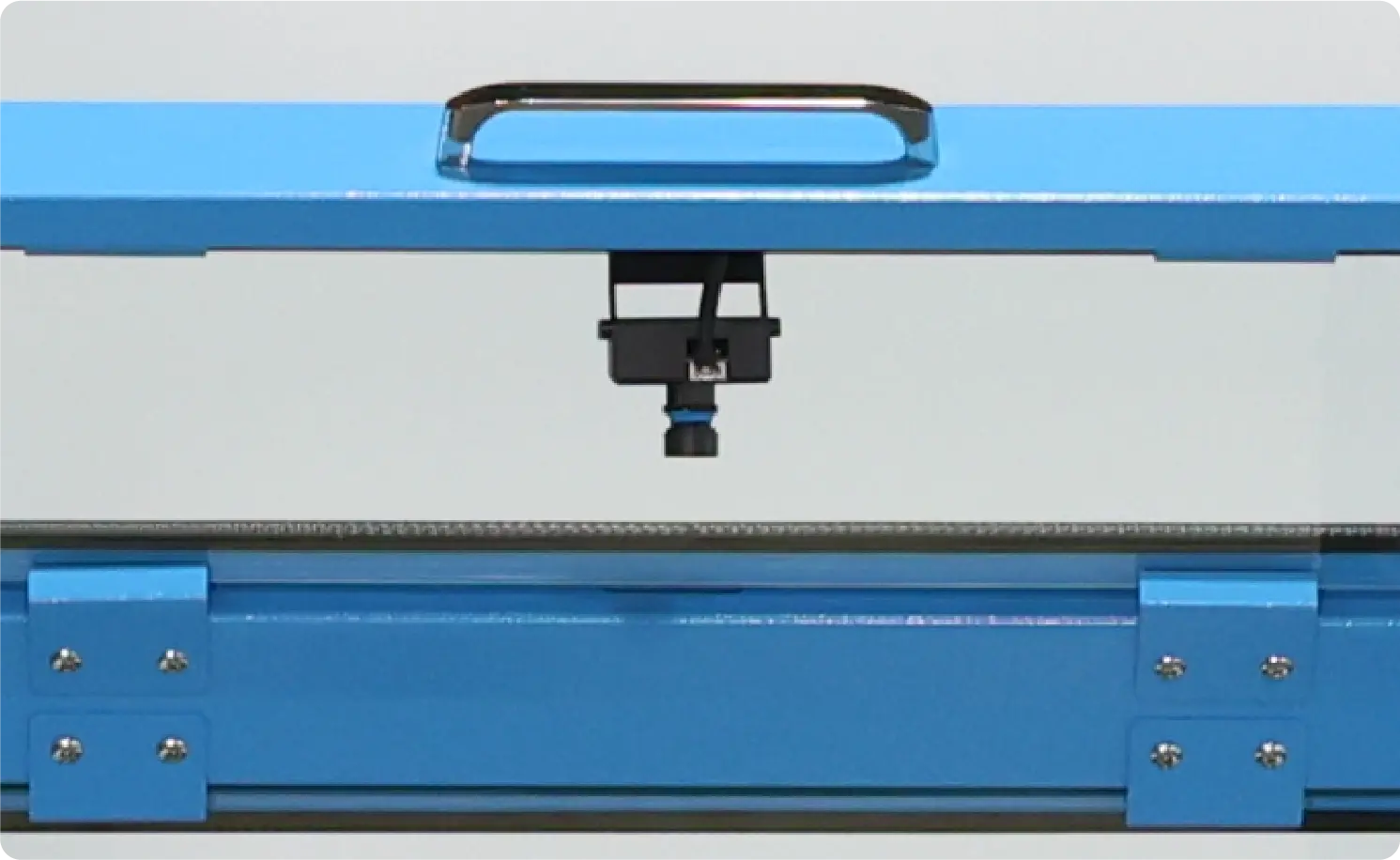

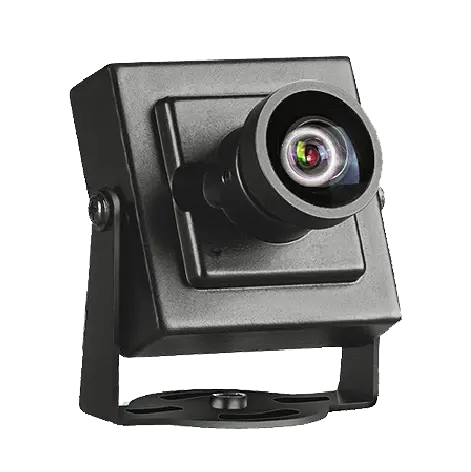

Over-head Camera

Equipped with an over-head camera as standard, this feature allows you to view materials on the laser bed through the software, facilitating the easy positioning of engravings on objects with irregular shapes.

Powerful Performance Upgrade

Thanks to the high-quality beam of the RF Metal Tube, our Nova Plus achieves significantly enhanced engraving precision and cutting performance.

Improved Engraving Precision

Improved Cutting Performance

Sample Application

Explore boundless possibilities with our CO2 laser cutting machine. Empowering you to redefine creative horizons through precision engraving and cutting.

Map Engraving

Cotton Tops

Signs

Photo Engraving

Greeting Card

Leather Bags

Stainless Steel Cup

Specifications

Take a closer look at what the Nova Plus has to offer.

Specification	Nova Plus 24	Nova Plus 35
Engraving / Working Area	600400155mm (23.6″ x 15.7″ x 6.1″)	900600225mm (35.4″ x 23.6″ x 8.9″)
Max Part Size	Pass through closed: 615470155mm (24.2″ x 18.5″ x 6.1″) Pass through open: 610∞20mm (24.0″ x ∞ x 0.8″)	Pass through closed: 931651225mm (36.6″ x 25.6″ x 8.9″) Pass through open: 960∞20mm (37.8″ x ∞ x 0.8″)
Machine Size（LWH）	1120865682mm (44.1″ x 34.1″ x 26.9″)	152011521115mm (59.8″ x 45.3″ x 43.9″)
Laser Wattage	60W RF Metal Tube
Intelligent Memory Capacity	Multiple File Storage up to 1GB
Laser Source	CO2 RF Matel Tube, Unmatched laser precision. Average lifespan: 10000 working hours
Electrical Requirements	Standard 110v or 220v AC 60Hz Single Phase, dedicated 15A circuit
Air Assist	Air pump 5-7 psi included
Software	LightBurn Software included for two computers; supports Windows, Mac, and Linux
Red Dot Pointer	Shows where laser will fire; easy positioning
Camera System	Come with over-head camera as standard
Operating Modes	Optimized raster, vector, or combined modes
Easy Adjustable Home	New home position can be set by hand for items not easily placed in the top corner
Motion Control System	LeadShine Hybrid-Servo Motors, engraving speeds up to 1,200mm/s (46.8"/second)
Resolution	Up to 1000dpi with included 2.5" head or 2000dpi with 1.5" head
Safety	Open cover protection, no-air assist protection, heat alarm system
Auto Focus	Infrared Auto-Focus system for easy focusing
Cooling	Air Cooling
Motorized Table	Includes removable honeycomb and solid metal blade (knife-style) bed
Laser Heads	2.5" Head / Lens included; Optional 1.5", 2.0", and 4.0" heads available.
TL-Timer (Smart Board)	Relay switch controls exhaust and air assist, stops when laser is not working
Warning Light	Red light means working, and green light means safe.
Warranty	The whole machine is under warranty for two years, and the RF tube is for one year.

FAQs

1.What are the differences between the Nova Plus and the Nova? How should I choose?

The key difference between the Nova Plus and the Nova is the upgrade from a CO₂ glass tube to a CO₂ RF tube, delivering higher engraving precision and enhanced cutting power. This also increases speed from 1000 mm/s to 1200 mm/s. Thanks to the RF tube’s advanced capabilities, air cooling is sufficient, eliminating the need for an additional water chiller.

2.Can I upgrade my Nova to the Nova Plus?

No, upgrading from the Nova to the Nova Plus requires structural changes to the machine and must be done at the factory.

3.How to choose Between RF CO2 and Glass CO2 lasers?

The RF CO₂ laser tube offers superior engraving and cutting capabilities, as well as a longer lifespan compared to the glass tube. The only drawback of the RF CO₂ laser tube is its high cost.
