If you are just getting started with laser processing, you may have run into frustrating questions like: Why are my results either too shallow or burned? With so many settings in the software, what exactly do I need to adjust?

These challenges often come from one key gap: not fully understanding how laser techniques and processing parameters work together.

In this guide, we will break down the core laser processes, including cutting, engraving, and marking, and walk you through the key parameters involved in each. Whether you are trying to fine-tune your output or simply understand what each setting does, this is the place to start.

1. Technical Specs vs. Material Settings: What Are They?

When you first open your laser machine manual, you may see a wide range of parameters, such as machine size, maximum speed, acceleration, and work area. These built-in specifications are technical parameters. They are not the parameters you actively adjust during every laser job. Instead, they describe what the machine is built to do.

For example, maximum speed, acceleration, and motion structure are related to the machine’s overall motion control system. They form the foundation that supports your real processing settings.

When it comes to laser cutting, engraving, or marking, the settings you actively adjust during a job are usually called material settings or material parameter settings. These include power, speed, frequency, focal distance, DPI, air assist, fill mode, and number of passes.

As the name suggests, these settings are closely tied to the properties of the material being processed. Material settings determine how the laser interacts with the material, including how deep it cuts, how dark it marks, how smooth the edge looks, and how consistent the final result is.

In short:

• Technical parameters = fixed machine specifications.
• Material settings = the settings you adjust for each material and job.

2. Why Are Material Parameters Important?

Without the right parameter settings, even a high-quality laser machine can produce poor results. Every material responds to laser energy differently. Wood burns, acrylic melts, leather chars, and metal reflects. Thickness, surface texture, density, coating, and heat sensitivity all affect the final result.

Without adjusting parameters properly, you may experience problems such as:

• Cuts that do not go all the way through.
• Engravings that are too faint or overly burned.
• Inconsistent results across different jobs.
• Wasted materials and unnecessary testing time.

That is why beginners should not rely on one fixed setting for all materials. A better workflow is to start with a reliable laser material settings reference, then adjust based on your machine, material thickness, and desired effect.

3. Laser Material Settings: What You Need to Know

Understanding and properly setting key laser material parameters is essential for achieving optimal cutting, engraving, and marking results. Below are the critical parameters that are frequently adjusted in laser processing.

3.1 Focal Distance

Definition: Focal distance refers to the distance between the laser beam’s focal point and the center of the focusing lens.

Importance: It affects laser spot size and energy density on the material surface.

Adjustment tips:

• Use a short focal length lens for detailed engraving to improve precision.
• Use a longer focal length lens for cutting thicker materials.
• Check the focusing method and lens type before processing.

Learn more: How to Focus Your Laser Machine and Focal Length vs. Focal Distance of CO2 Laser Lens.

3.2 Power

Definition: Laser power refers to the output power of the laser, usually expressed as a percentage or wattage depending on the machine and software.

Importance: Power determines the laser’s energy intensity and whether the material can be marked, melted, vaporized, or cut through.

Adjustment tips:

• Use lower power for shallow engraving.
• Increase power for deeper engraving.
• Use higher power for cutting to ensure full penetration without excessive burning or warping.
• Use lower power for line tracing when you do not want to cut through the material.

Learn more: How to Set the Right Laser Power for Cutting and Engraving.

3.3 Frequency

Definition: Frequency refers to the pulse frequency of pulsed lasers, usually measured in hertz or kilohertz.

Importance: Frequency influences pulse energy, energy density, surface contrast, and the degree of material charring or thermal effect.

Adjustment tips:

• Use higher frequency for some marking tasks to reduce energy per pulse and prevent excessive surface damage.
• Use lower frequency for certain metal cutting or deep engraving tasks to increase pulse energy for stronger penetration.
• Frequency is especially important for pulsed laser systems such as fiber, MOPA, Q-switched, and UV lasers.

Learn more: Laser Operation Modes: CW, Pulsed, and QCW Lasers.

3.4 Speed

Definition: Speed refers to the movement speed of the laser head, usually measured in mm/s.

Importance: Speed influences processing time, energy delivery, cutting depth, engraving contrast, and heat buildup.

Adjustment tips:

• Use faster speed for shallow engraving.
• Use slower speed for deeper cuts or stronger engraving effects.
• Use slow speed for cutting to ensure complete penetration.
• Use moderate speed for line tracing to avoid cutting through.

Learn more: How to Optimize Laser Processing Speed for Cutting, Engraving, and Marking.

3.5 Air Assist

Definition: Air assist is the auxiliary airflow directed at the material surface during laser processing.

Importance: Air assist cools the work area, reduces fire risk, keeps the lens cleaner, removes debris, and improves cut-edge quality.

Adjustment tips:

• Use low air pressure for shallow engraving and line tracing when cleaner surface detail is needed.
• Use strong air pressure for deep engraving and cutting to remove debris and reduce fire risk.
• Adjust air assist based on material type, nozzle design, and processing goal.

Learn more: Use Air Assist to Enhance Laser Engraving and Cutting Quality and Air Assist Systems in Laser Machines.

3.6 DPI

Definition: DPI refers to the number of laser dots per inch on the material.

Importance: DPI affects image resolution, engraving detail, processing time, and heat accumulation.

Adjustment tips:

• Use moderate DPI, such as 300–400, for wood because of the larger heat-affected zone.
• Use higher DPI, such as 500–600, for anodized aluminum or materials that can support finer details.
• Avoid unnecessarily high DPI if it increases processing time or causes overburning.

Learn more: How to Set the Best Laser Engraving DPI.

3.7 Fill Mode

Definition: Fill mode tells your laser how to engrave inside the boundaries of vector graphics, usually by etching parallel lines or using other fill strategies.

Common types: Bidirectional fill, unidirectional fill, and crosshatch fill.

Adjustment tips:

• Use bidirectional fill for faster processing.
• Use unidirectional fill for a higher-quality finish when needed.
• Use crosshatch fill for more uniform engraving, but consider machine movement and processing time.

Learn more: Common Laser Engraving Fill Modes You Should Know.

3.8 Number of Passes

Definition: Number of passes refers to how many times the laser processes the same path or area.

Importance: Multiple passes can deepen engraving or complete cutting without relying on excessive power in a single pass.

Adjustment tips:

• Use a single pass for most standard jobs to maximize efficiency.
• Use multiple low-power passes for deep engraving or thick material cutting to reduce burning.
• For deep cuts, consider focus changes or Z-offset if needed.

Learn more: How to Set Passes in Laser Cutting and Engraving.

4. Adjust Laser Settings Based on the Machine Type

In practice, the parameters you need to adjust depend on several factors, including the type of machine, the material being processed, and the desired result. These settings control how the laser interacts with the material, so choosing the right parameter group is essential for stable quality.

Different types of laser machines require different sets of parameters. For example, a laser cutting and engraving machine typically focuses on speed, power, resolution, air assist, and focus settings, while a laser marking machine using pulsed lasers often requires additional controls such as frequency and pulse width.

If you are still comparing machine types, you can first review the differences between laser machines or learn how to choose the right Thunder Laser machine.

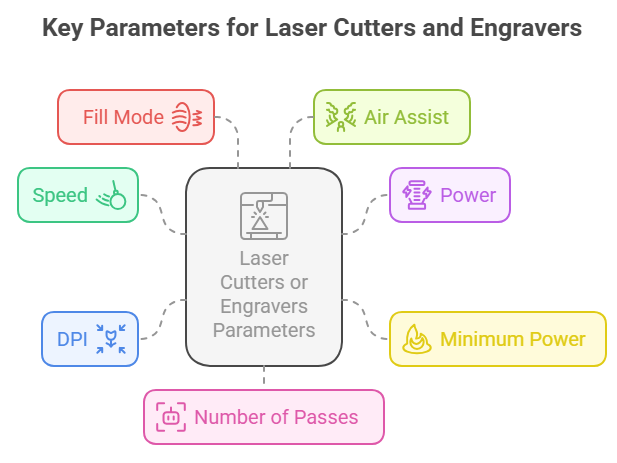

4.1 Key Material Settings for Laser Cutters and Engravers

When working with CO2 laser cutters and engravers, the core parameters directly affect how the laser interacts with the material. These settings determine depth, speed, precision, edge quality, and the overall finish of the engraving or cutting job.

Most of these parameters are configured in software such as LightBurn, LaserMaker, or similar platforms.

To better understand how these parameters work together in real applications, the table below shows sample settings based on a Thunder Bolt CO2 laser machine. This example demonstrates how different power levels, speeds, and other variables are adjusted for vector engraving, raster engraving, line tracing, and cutting on 3 mm basswood.

A sample settings table for vector engraving, raster engraving, line tracing, and cutting on 3 mm basswood.

Note: For processes like cutting and line tracing where constant power is desired, Min Power is often set equal to Max Power.

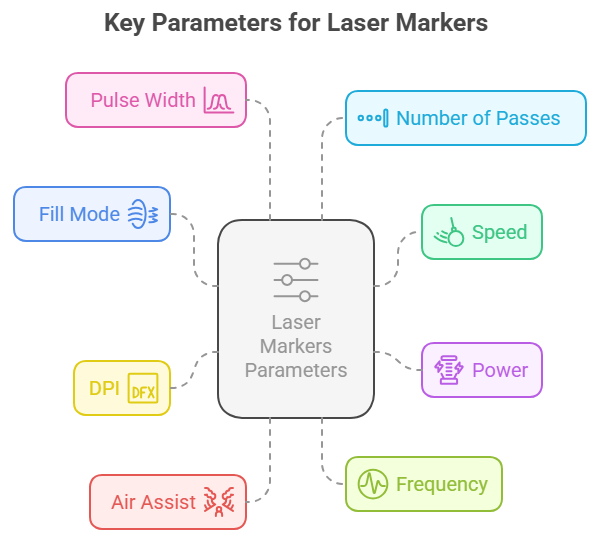

4.2 Key Material Settings for Laser Markers

Unlike laser cutting or engraving machines, laser marking machines often use pulsed laser sources, such as fiber, Q-switched, MOPA, or UV lasers. These machines are usually compatible with marking software such as EZCAD and can also work with LightBurn in certain workflows.

Laser marking machines can achieve high-precision effects such as black marking, white marking, etching, and even color marking on metals and plastics. Choosing the right fiber laser machine, UV laser, or MOPA laser depends on the material and marking effect you want.

When setting parameters for laser marking, you will notice two elements that are not usually found in standard CO2 systems: frequency and pulse width. These are crucial for controlling how laser energy is delivered over time and directly affect mark contrast, depth, and clarity.

The table below provides sample parameter configurations using Thunder Aurora Fiber 50W and Aurora UV 5W laser marking machines across different materials and marking effects.

A sample settings table for fiber and UV laser markers on different materials.

5. Conclusion

For small and medium-sized laser machines, the core processing functions, including cutting, engraving, and marking, may seem similar at first. However, adjusting key parameters such as power, speed, focal distance, defocus, DPI, fill mode, air assist, frequency, and number of passes allows you to create very different results on different materials.

The best workflow is to understand what each parameter controls, start from reliable recommended settings, run test grids, and build your own material parameter library over time.
