Acceleration is one of those laser machine specifications that often raises questions. It is listed prominently in product sheets and sometimes highlighted with impressive numbers, yet in real use, most operators rarely adjust it manually and may wonder whether acceleration has practical value at all.

This skepticism is understandable. In everyday engraving and cutting, the laser head spends very little time running at top speed. Instead, it constantly accelerates, decelerates, and changes direction while tracing images, text, and complex patterns.

That is exactly where acceleration comes into play. It is not just a showpiece parameter. It is a quiet but important factor that shapes real processing efficiency, motion stability, and engraving quality.

This article explains what laser machine acceleration actually does, why it matters, what factors affect it, and how normal acceleration differs from emergency stop acceleration.

1. Understanding Acceleration in Laser Engraving

In laser engraving, acceleration refers to how quickly the laser head can change its motion during processing. It controls how smoothly the system starts, stops, and transitions between movements, especially along short paths, sharp corners, curves, and complex contours.

Generally speaking, acceleration is measured in mm/s². In some product specifications, it may also be expressed in G, where 1G is approximately equal to 10,000 mm/s².

For example, if a laser machine has higher acceleration, the laser head can reach its target working speed more quickly after starting or changing direction. This is especially useful for engraving jobs with many short movements, detailed patterns, or frequent direction changes.

2. Why Is Acceleration Important for Laser Engraving?

Most laser tasks involve frequent direction changes rather than long, continuous movements. Under these conditions, acceleration plays a critical role in how accurately and efficiently the laser head follows the programmed path.

When acceleration is insufficient or unstable, motion may become uneven. This can lead to inconsistent engraving results, less precise corners, reduced detail quality, vibration, or longer processing time.

With properly matched acceleration, the laser head can maintain smooth and controlled movement through corners and curves while reaching effective working motion more quickly on short segments. This improves overall processing efficiency, preserves detail quality, and allows the machine to handle both intricate engraving and demanding cutting tasks with greater consistency.

A comparison of different acceleration levels and their effects on laser machine motion.

3. Factors That Affect Laser Machine Acceleration

The maximum acceleration a laser machine can achieve is primarily determined by overall motion system performance. Among all factors, motor capability and moving mass, especially the weight of the laser head, are the most influential.

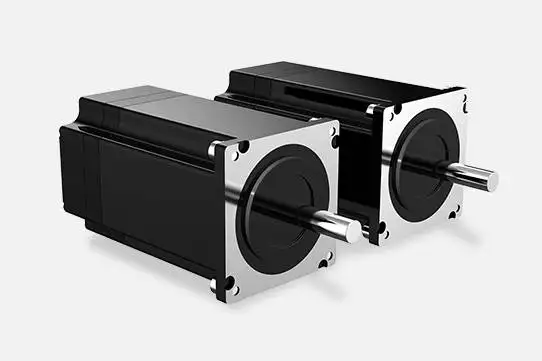

3.1 The Motor of the Laser Machine

The motor is one of the primary factors that determines laser machine acceleration. Laser engraving machines may use either stepper motors or servo motors in their motion systems. While these motor types differ in control characteristics, their influence on acceleration follows the same fundamental principles.

In both cases, achievable acceleration is ultimately limited by available torque, system inertia, and motion control tuning.

3.1.1 Motor Driving Capability

Motor driving capability is directly related to the motor’s maximum output torque. Higher torque can support greater acceleration in a laser cutting or engraving machine.

This capability is also limited by the rated input voltage. As the motor’s rotational speed increases, back electromotive force also increases. When the back EMF approaches the input voltage, the maximum speed is reached, which affects the motor’s driving capability and acceleration performance.

3.1.2 Motor Step Angle

The motor step angle refers to the absolute distance the controlled axis moves when a single electrical signal pulse is sent. This factor affects motion resolution and precision.

A smaller step angle can improve resolution and precision, but it may also reduce acceleration. This is because a smaller step angle requires more electrical pulses to achieve the same rotational speed, increasing the control load and reducing acceleration capability.

3.1.3 Motor Inertia

Inertia is the resistance of the motor to changes in motion. It is related to the weight and rotating components of the motor. Greater inertia requires more force to start and stop, which can reduce acceleration.

Selecting lightweight motors and components, or optimizing the structural design, can help improve acceleration performance.

3.1.4 Motor Parameters

Motor parameters include direction polarity, control method, limit polarity, origin offset, and other motion-related settings. Properly adjusting these parameters can help prevent problems such as missed steps, vibration, or humming noises.

Learn more about Laser Motion Control System.

3.2 Weight of the Laser Head

The weight of the laser head directly affects machine inertia. From a physics perspective, acceleration is determined by the force applied to the moving parts divided by their mass, according to Newton’s second law.

This means that for the same driving force from the motor, a heavier laser head will accelerate more slowly, while a lighter laser head allows the motion system to reach higher acceleration more easily.

In practical laser machine design, this is why lightweight motion structures, optimized laser head design, and rigid mechanical systems are important. They help the machine achieve higher acceleration while maintaining stability and precision.

4. Acceleration vs. Emergency Stop Acceleration

Laser machines use acceleration to control motion during normal processing. However, in emergencies, a much higher deceleration, often called emergency stop acceleration, is applied to quickly halt the system.

Normal acceleration and emergency stop acceleration differ in magnitude, application scenarios, and control systems. Together, they show how laser machines balance speed, precision, and safety under different conditions.

4.1 Magnitude

Normal acceleration for many laser machines typically ranges from around 0.8G to 1.2G, allowing smooth and controlled motion during everyday engraving and cutting.

Emergency stop acceleration is significantly higher, often two to three times normal acceleration, to ensure a rapid and safe stop under hard limits. For example, some Thunder Laser models such as Titan can reach 16G in emergency stop mode, compared with 8G during laser processing.

4.2 Application Scenarios

Normal acceleration is used continuously during regular processing to maintain efficiency and precision. It affects how the laser head starts, stops, and changes direction while following the design path.

Emergency stop acceleration occurs only during unexpected events, such as an operator-triggered emergency stop or when the machine detects a safety limit. Its purpose is to protect the operator, machine, and workpiece.

4.3 Control Systems

Normal acceleration is managed by the motion controller or software to optimize processing performance. It is tuned to balance speed, precision, and mechanical stability.

Emergency stop acceleration is automatically controlled by the machine’s safety system. In this situation, the priority is rapid stopping rather than motion smoothness or cutting efficiency.

A comparison of normal acceleration and emergency stop acceleration in laser machines.

5. Conclusion

Acceleration determines how quickly and smoothly a laser machine can start, stop, and change direction. It directly affects motion responsiveness, engraving precision, and processing efficiency.

However, a higher acceleration value alone does not guarantee better results. Stability, control, motor performance, machine rigidity, and mechanical design ultimately determine whether that acceleration can be fully utilized.

For users, acceleration is usually not a setting that needs frequent manual adjustment. But understanding it can help you better evaluate laser machine performance and understand why motion design matters for both speed and precision.
