If you have ever operated a laser cutter or laser engraver, you may have seen an error message such as “Not Enough Buffer Distance” or “Not Enough Buffer Space.” These messages often appear right when you are ready to start the job, and they can be confusing if you are not familiar with how laser motion works.

So what exactly is buffer distance? In this article, we will explain what buffer distance means in laser processing, why it matters, how it affects work area and processing time, and how to avoid common errors like “not enough buffer space.”

1. What Is Buffer Distance in Laser Engraving?

Buffer distance, also called safety distance or buffer space, is the space intentionally left before or after actual laser engraving begins or ends. This space allows the laser head to accelerate to its target engraving speed or decelerate from that speed smoothly.

Although buffer distance does not directly participate in material processing, it plays a vital role in ensuring smooth and stable laser motion.

For example, when you set the engraving speed to 2000 mm/s, the laser head does not reach that speed instantly. It needs a short distance to ramp up, just like a car needs several meters to accelerate. The distance the laser head travels during this acceleration phase is what we call buffer distance.

The same principle applies when slowing down. When the job ends or the laser head needs to change direction, it cannot stop instantly. It needs buffer space to decelerate smoothly without causing mechanical stress, vibration, or unstable motion.

It is important to note that buffer distance refers to the distance required during a single motion segment, not the total buffer distance accumulated throughout the entire job.

In other words, buffer distance is the space the laser head needs to accelerate or decelerate once, typically at the start and end of a motion path. Even though the laser head may go through many acceleration and deceleration cycles in a full engraving job, buffer distance always refers to each individual transition, not their combined length.

2. Why Is Buffer Distance Important in Laser Processing?

Buffer distance is important because it gives the laser head enough room to complete smooth acceleration and deceleration. This helps improve motion stability, protect the machine, and support accurate processing.

2.1 Preventing Collisions

As the laser head approaches the work area, buffer distance acts as a safety margin. It helps prevent direct contact with the material or surrounding objects, especially during fast or complex movements.

This reduces the risk of damaging both the machine and the workpiece.

2.2 Protecting the Laser

In certain workflows, the laser head needs to move to a designated position and pass through a safe path before reaching the starting point. A well-configured buffer distance helps ensure that the laser does not activate prematurely or pass too close to obstacles.

This helps protect optical components, maintain alignment, and reduce unnecessary mechanical stress.

2.3 Supporting Software-Controlled Motion Planning

Most laser control software allows buffer distance or related overtravel settings to be defined as part of the job setup. This gives the motion control system enough room to make necessary adjustments before actual engraving begins.

This is critical for achieving high precision and consistent results, especially in high-speed engraving or jobs with frequent direction changes.

Related reading: Bolt’s Actual Processing Distance and Buffer Distance.

3. What Makes Buffer Distance Longer or Shorter in Engraving?

Many users may assume that buffer distance is influenced by many factors, such as material type or design complexity. In most cases, the core factors are much simpler: motion speed and acceleration.

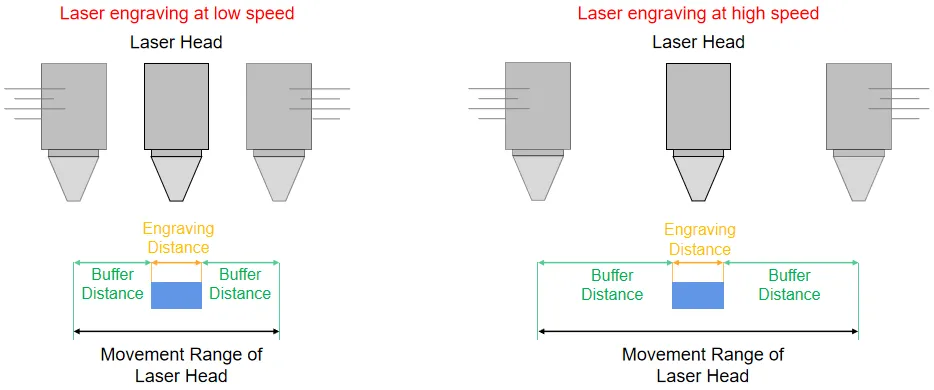

3.1 Speed

The faster the laser head is set to move, the longer it takes to reach that speed from a standstill when acceleration is fixed. Therefore, the higher the engraving speed, the greater the required buffer distance.

Read More: How to Optimize Laser Processing Speed for Cutting, Engraving, and Marking?

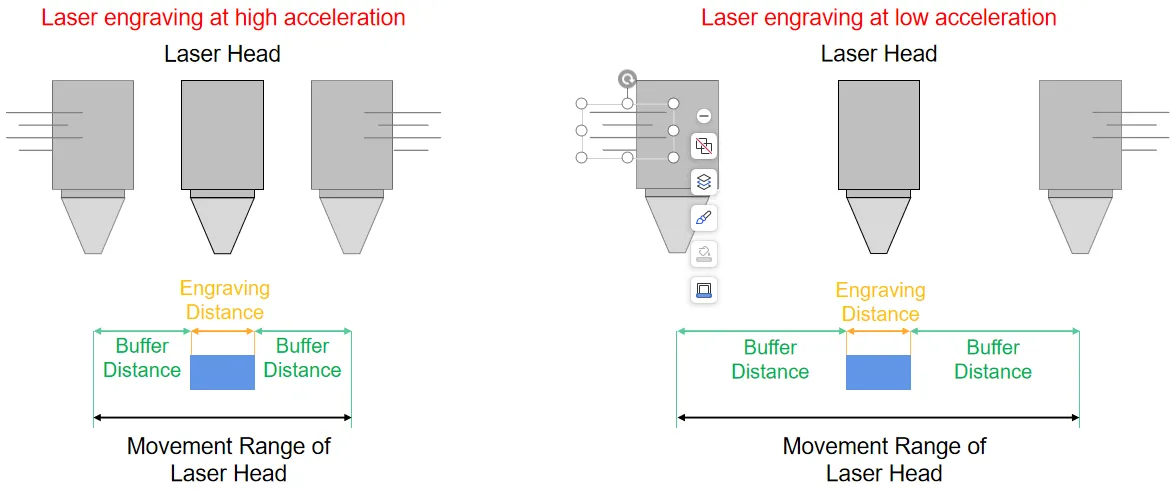

3.2 Acceleration

Acceleration refers to how quickly the laser head can speed up or slow down. Machines with higher acceleration values require less space to reach the same speed. In contrast, systems with lower acceleration require a greater buffer distance to complete the same motion transition smoothly.

Read more: What Is Acceleration in a Laser Machine? A Beginner-Friendly Guide

How speed and acceleration affect buffer distance in laser engraving.

4. How Does Buffer Distance Affect Laser Engraving?

Buffer distance does not only affect how smoothly the laser head moves. It also directly impacts two important aspects of laser engraving: the effective work area and the total processing time.

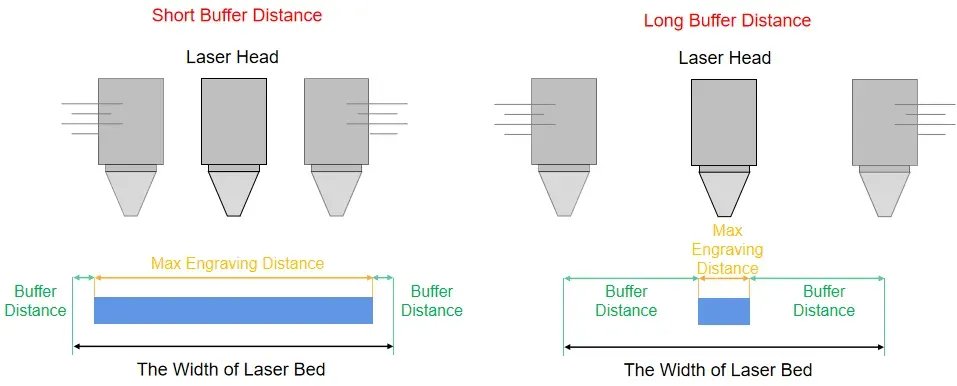

4.1 Work Area

In the buffer space, the laser system keeps the beam turned off while the laser head accelerates or decelerates. This means no material is processed during the transition phase.

As a result, the effective work area is slightly smaller than the total bed size. The larger the buffer distance, the smaller the actual usable engraving area becomes.

To calculate it accurately, you need to subtract the buffer distance on both sides:

Effective Work Width = Total Bed Width − 2 × Buffer Distance

4.2 Processing Time

There is one fact that may seem counterintuitive: faster engraving speed does not always mean a shorter total processing time for the same design at the same DPI.

This is because total processing time includes two parts: the time spent engraving the design and the time spent traveling the buffer distance. When engraving speed increases, the laser head moves faster along the design, so the engraving time decreases. However, higher speeds require a longer buffer distance, which increases buffer travel time.

Because of this trade-off, increasing engraving speed does not always lead to shorter total processing time for the same design at the same DPI.

Read more: 9 Key Factors That Affect Laser Processing Time: How to Work Faster

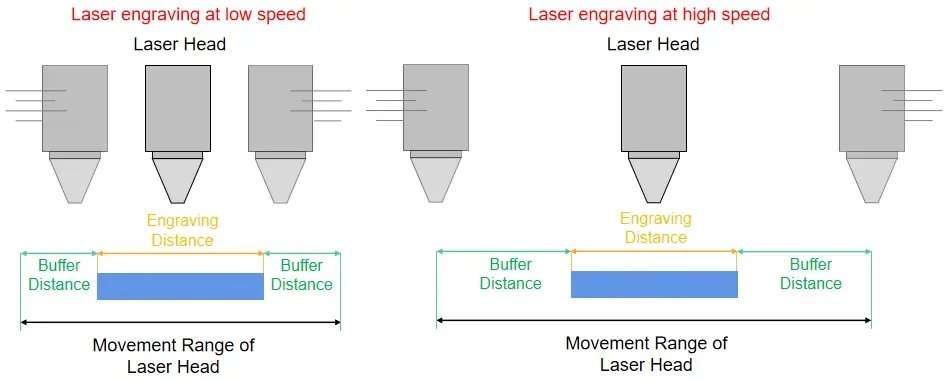

For small designs, within a certain range of engraving speeds, faster speed can actually increase total processing time. This happens because the increase in buffer travel time may exceed the time saved during actual engraving. As a result, total processing time may increase as engraving speed increases.

For large designs, the actual engraving time becomes the dominant factor. In this case, the time saved by using a higher engraving speed is greater than the extra time caused by longer buffer travel. Therefore, increasing engraving speed can reduce total processing time for large designs.

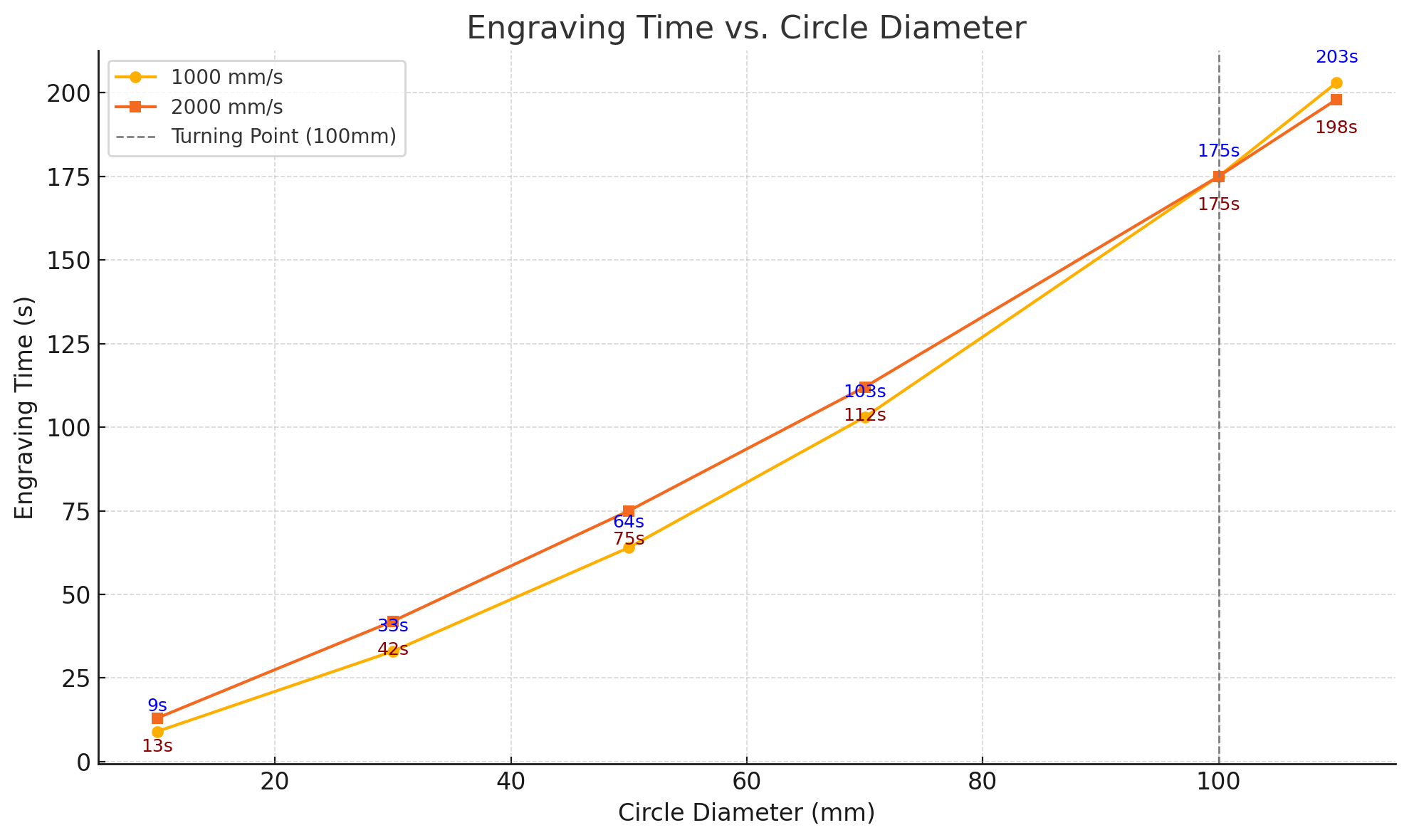

To verify the relationship between engraving speed and total processing time under different design sizes, Thunder Laser conducted a comparative test using the same Thunder Bolt Pro 32 machine, the same material, and identical power and DPI settings: 20% power and 300 DPI. Circles of different diameters were engraved at two speeds: 1000 mm/s and 2000 mm/s.

5. How to Optimize Buffer Distance Settings for Better Laser Engraving

Buffer distance is primarily influenced by speed and acceleration. Therefore, the key to optimizing buffer distance is to carefully adjust software settings and design layout so the machine has enough room for smooth and stable motion.

The following methods can help maximize engraving efficiency, make better use of workspace, and ensure smoother motion control.

5.1 Adjust Overscan or Overtravel Settings

One common cause of “Not Enough Buffer Distance” errors is that the laser head tries to start or stop engraving exactly at the edge of the design area, leaving no room for smooth acceleration or deceleration.

Most laser software, such as LightBurn, includes an Overscan or Overtravel setting. This allows the laser head to move slightly beyond the actual design boundary before starting and after finishing the engraving path.

By increasing the overscan distance, you provide the laser head with the necessary space to accelerate and decelerate smoothly. This helps avoid abrupt stops and prevents buffer distance errors.

5.2 Decrease Engraving Speed

Higher engraving speed means the laser head moves faster and needs more buffer distance to safely accelerate and decelerate. If the available space is too short, the machine may not complete its motion properly, triggering a buffer distance error.

To avoid this, set engraving speed properly. If you are unsure what speed to use for a specific job, start with recommended settings from the laser machine manufacturer or verified material setting charts. Then adjust slightly downward if your design area is small, complex, or close to the material edge.

5.3 Leave Adequate Margins on Your Design

Do not place your design exactly at the edge of your material. Leave at least 5–10 mm of margin around the design whenever possible.

This extra space ensures the laser head has room to accelerate and decelerate smoothly without damaging the edge of the workpiece or causing engraving defects.

Practical ways to optimize buffer distance settings for laser engraving.

6. Conclusion

Buffer distance may seem like a minor setting in laser processing, but it plays a vital role in precision, safety, and efficiency. It enables smooth acceleration and deceleration, affects the effective work area, and can even influence total processing time.

Understanding that buffer distance is fundamentally determined by speed and acceleration allows users to make smarter choices during job setup. By configuring buffer distance appropriately for each job, users can improve engraving quality, reduce motion-related errors, protect the machine, and optimize productivity.
