Air assist is a crucial part of laser engraving and cutting. It directly affects processing quality, material finish, and safety by controlling airflow around the laser processing area. With the right air assist setting, you can remove debris, reduce overheating, protect optical components, and achieve cleaner, more precise results.

In this article, we will explain how air assist works, how airflow direction and nozzle diameter affect laser processing, and how to optimize air assist settings for different materials and processing methods.

1. The Role of Air Assist in Laser Engraving and Cutting

The air assist system plays a vital role in laser engraving and cutting. It helps prevent the buildup of smoke and debris, protects optical lenses from contamination, reduces heat accumulation, and minimizes the risk of fire. As a result, air assist improves both processing quality and operational safety.

A properly adjusted air assist system removes particles and fumes generated during laser engraving or cutting. This prevents residue from settling back onto the material surface and helps produce a cleaner, higher-quality finish.

Without adequate air assist, contaminants can accumulate on the focus lens, reducing laser effectiveness and potentially damaging the optics. Smoke and heat buildup may also increase fire risk. For this reason, optimizing air assist is essential for achieving consistent results and maintaining safe working conditions in laser applications.

2. Understanding Air Assist Direction: Direct vs. Angled

The direction of air assist plays a crucial role in laser processing results. The two main configurations are direct airflow and angled airflow. Each airflow direction supports different processing needs.

2.1 Direct Airflow for Laser Cutting

Direct airflow pushes air straight into the laser cutting path. This helps remove smoke and debris from the cutting kerf and prevents particles from reattaching to the material surface.

This airflow direction is especially useful for laser cutting because it helps maintain cutting precision, reduces residue buildup, and supports cleaner cut edges. For example, the Nova series uses direct airflow, making it well suited for cutting applications.

2.2 Angled Airflow for Laser Engraving

Angled airflow redirects vaporized material away from the engraving area. This helps reduce redeposition and keeps engraved patterns clearer and cleaner.

During engraving, fine particles and vaporized material can easily settle back onto the surface. Angled airflow helps move these particles away from the design area, improving engraving clarity and surface finish.

A comparison of direct airflow and angled airflow in laser processing.

3. Impact of Nozzle Diameter on Air Assist

The choice of nozzle diameter plays a critical role in the effectiveness of air assist during laser engraving and cutting. The nozzle size determines how concentrated the airflow is, directly affecting the processing result.

3.1 Narrow Nozzles

Narrow nozzles are ideal for laser cutting applications because they create concentrated airflow. This focused airflow quickly removes debris from the cutting kerf, improving both efficiency and precision.

Narrow nozzles are especially effective when cutting thicker materials because they help prevent residue buildup and support clean, sharp edges.

3.2 Wide Nozzles

Wide nozzles produce gentler airflow, making them better suited for laser engraving and acrylic cutting. They help avoid rapid cooling during processing, which can otherwise lead to a frosted or cloudy effect on acrylic surfaces.

The softer airflow from a wide nozzle allows the material to cool more gradually, helping preserve the clarity of laser-cut acrylic edges.

3.3 Frosting Effect in Acrylic Cutting

The frosting effect commonly occurs when laser cutting acrylic. With a narrow nozzle, intense focused airflow can cause the acrylic edge to cool too quickly, resulting in a frosted edge. In contrast, a wide nozzle delivers a softer stream of air, allowing slower cooling and helping maintain a clear, polished finish.

When laser engraving, wide nozzles are generally preferred. Engraving produces more vaporized particles than cutting, and strong airflow from a narrow nozzle may blow these particles back onto the material surface, contaminating the design. A wide nozzle provides lower instantaneous air pressure, helping minimize redeposition and produce cleaner engraving results.

3.4 Nozzle Design on Thunder Laser Machines

The Nova series laser cutter uses wide and narrow conical nozzles to meet different processing needs. A narrow nozzle is used for laser cutting, while a wide nozzle is used for laser engraving and acrylic laser cutting.

In contrast, the Thunder Bolt series features a different structural design and does not use conical nozzle attachments.

A comparison of narrow and wide nozzles for laser air assist.

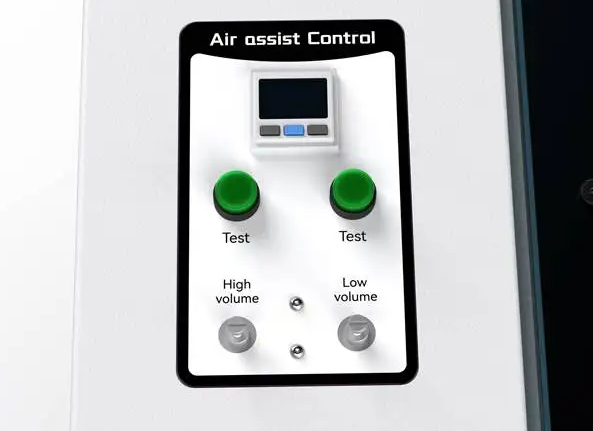

4. Adjusting Air Assist for Laser Engraving and Cutting

Air assist intensity significantly influences laser processing quality. To achieve optimal performance, it should be adjusted according to both the processing method and the material being used.

4.1 Adjustment by Laser Processing Type

The required air pressure varies depending on whether the task is laser engraving or laser cutting.

4.1.1 Laser Engraving: Low Pressure, 0.3–1 psi

Laser engraving tends to produce vaporized residues that are difficult to disperse. Applying high air pressure may force these residues back onto the surface, where they can re-condense and stain the engraved area.

In contrast, low air pressure allows vapors to dissipate more naturally, keeping the engraving area clean and precise. A default setting of 0.3 psi is generally sufficient. Slight increases can be made for specific applications, but it is usually advisable not to exceed 1 psi for standard engraving work.

4.1.2 Laser Cutting: High Pressure, 7–8 psi

Laser cutting involves higher energy output, which can cause localized heat buildup or even combustion. Strong air pressure helps control temperature and reduce the risk of burning.

High air pressure also clears vaporized debris from the cutting path efficiently, preventing residue from adhering to the surface. This results in cleaner edges and a smoother finish.

4.2 Adjustment by Material Type

Materials react differently to air pressure, so precise control is essential for maintaining laser processing quality.

4.2.1 Acrylic

High air assist during acrylic laser cutting can cause rapid cooling, leading to a frosted or cloudy appearance on the edges. Lower air pressure allows slower cooling, helping preserve acrylic clarity and smoothness. The air pressure should be adjusted based on the desired visual effect.

4.2.2 Rubber, Silicone, and Stone

Rubber, silicone, and stone generate a large amount of dust during laser engraving. If the dust is not removed promptly, it can accumulate and solidify on the surface, resulting in blurry or distorted patterns.

To achieve clear results, stronger air pressure may be necessary for both laser engraving and cutting so that debris is blown away from the work area.

4.2.3 Zirconia Ceramic Tiles

Laser engraving zirconia ceramic tiles requires stable air pressure within the range of 7–8 psi. Inadequate air pressure can lead to insufficient cooling and may cause the material to crack.

However, excessive pressure may cool the surface too quickly and affect engraving quality. A steady, moderately high-pressure setting is important for achieving clean results without damaging the tile.

4.2.4 Paper

Paper is lightweight and delicate, making it prone to shifting under high air pressure. However, low air pressure can result in burnt edges. To solve this, strong air pressure can be used together with masking tape or a vacuum table to hold the paper in place.

This approach helps maintain both edge quality and material stability during laser cutting.

Air assist recommendations by processing method and material type.

5. How to Determine the Best Air Assist Setting

In laser processing, there is no one-size-fits-all air assist setting. The optimal level should be adjusted dynamically based on real-time cutting or engraving conditions. When default settings produce suboptimal or abnormal results, use the following guidelines to fine-tune air assist.

5.1 Handling Ignition During Laser Processing

If ignition occurs, immediately increase the air assist until the flame is suppressed. If full air assist fails to extinguish the fire, use an auxiliary air blower or switch to a more fire-resistant material to ensure safe processing.

5.2 Dealing with Residue or Staining Near Cut Lines

If residue or staining appears near cut lines, gradually increase the air assist until the cut area is clean and free of deposits. These stains are typically caused by vaporized particles that have not been fully cleared during cutting.

5.3 Reducing Fan-Shaped Dust Stains Around Engraved Areas

Fan-shaped dust stains around engraved areas can usually be wiped off, but frequent appearance often indicates excessive air assist. In this case, reduce the air assist intensity incrementally until the engraved surface remains clean and sharp with no visible contamination.

5.4 Best Practices for Air Pressure Adjustments

When fine-tuning air pressure, adjust in increments of 0.5 psi and observe the result at each step until the desired outcome is achieved.

It is critical to ensure that air pressure never drops so low that it compromises safety, especially by allowing flare-ups or burning. Maintaining a safe minimum pressure is essential for stable and reliable operation.

6. Conclusion

Whether you are laser engraving delicate ceramics or cutting thick acrylic, the right air assist settings can make a significant difference. By understanding how airflow direction, nozzle size, and air pressure interact with specific materials, you can reduce defects, improve output quality, and lower the risk of fire or contamination.

With careful adjustment and consistent observation, air assist becomes a powerful tool for optimizing your laser workflow.
