Why Choose the
Thunder Nova Plus?

At Thunder Laser, we dedicated to provide high efficiency and high cost performance laser machines. Nova Plus is engineered to elevate your engraving and cutting experience with faster, more precise performance, enhanced durability, and user-friendly upgrades.

Get a Quote

Download Brochure

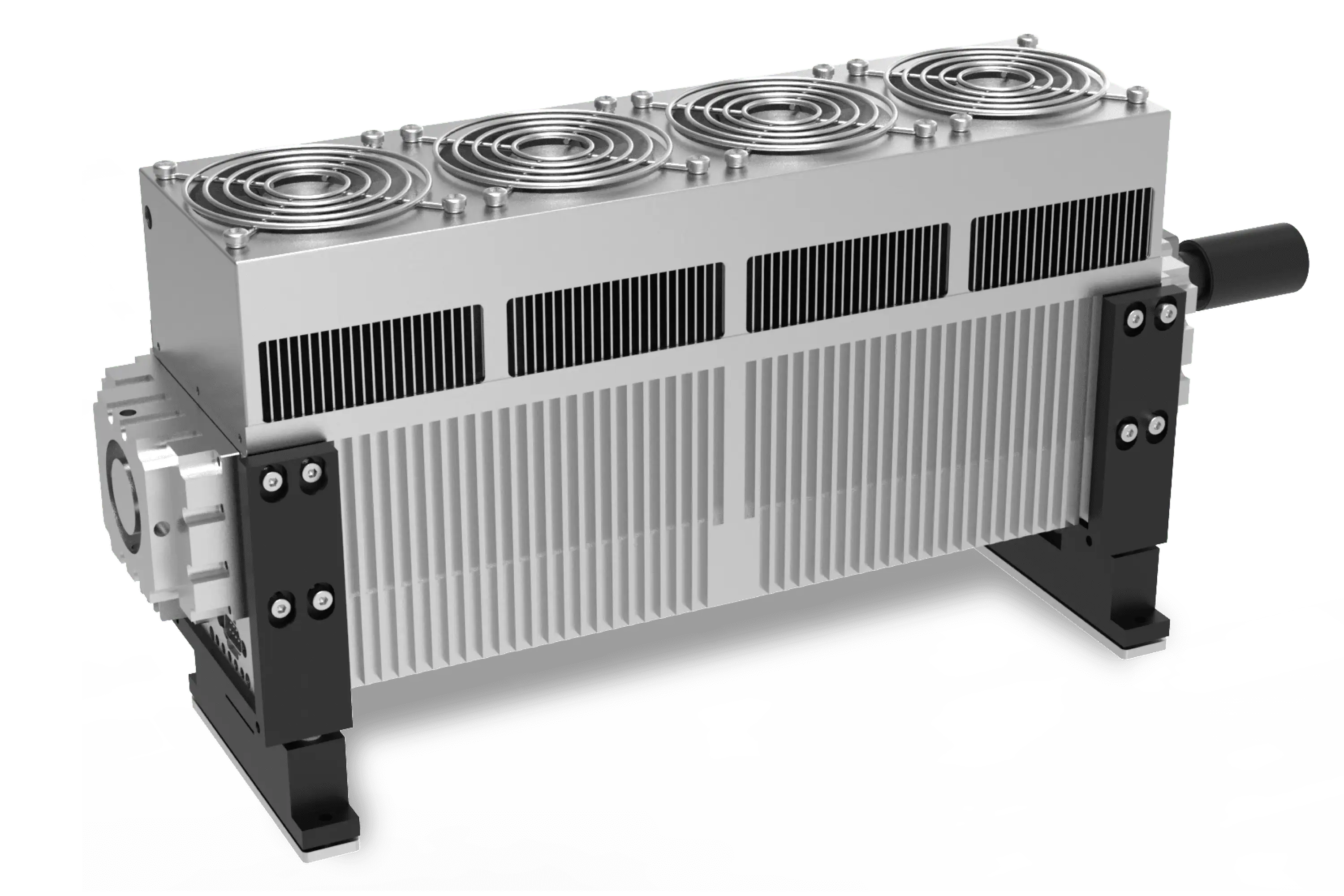

RF Metal Tube for

Superior Performance

The metal tube design of Nova Plus delivers exceptional beam quality with an accuracy of 0.05mm and a lifespan of 10,000 hours-twice as long as the traditional Nova glass tube.

Additionally, the beam expander enhances the laser output, allowing you to achieve a resolution of up to 2000 DPI for stunningly detailed results.

Nova Plus Series

Precision Redefined

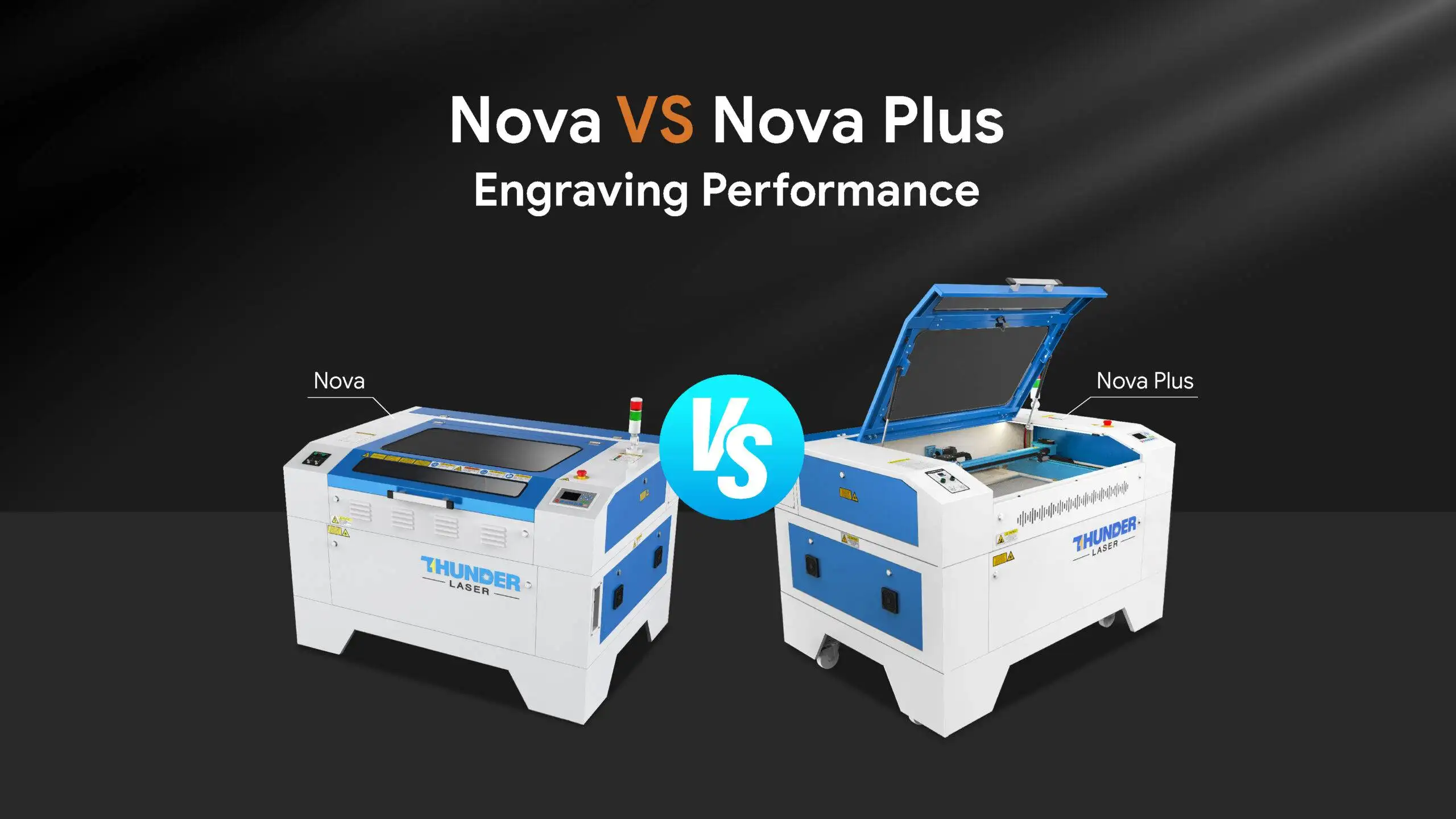

Experience the superior engraving accuracy of the Nova Plus RF tube — finer lines, cleaner edges, and unmatched detail compared to traditional Nova glass tube systems.

80W vs 60W

Speed That Cuts Ahead

See how the 80W Nova Plus laser machine outpaces the 60W model when cutting thin materials. Faster cuts, greater efficiency, and more productivity for your business.

80W vs 60W

Power That Cuts Deeper

Watch the side-by-side test between the 80W and 60W Nova Plus. With stronger laser power, the 80W machine cuts through thicker materials faster and more cleanly — perfect for advanced cutting needs.

RF Metal Tube for

Superior Performance

The metal tube design of Nova Plus delivers exceptional beam quality with an accuracy of 0.05mm and a lifespan of 10,000 hours-twice as long as the traditional Nova glass tube.

Additionally, the beam expander enhances the laser output, allowing you to achieve a resolution of up to 2000 DPl for stunningly detailed results.

Nova Plus Series

Precision Redefined

Experience the superior engraving accuracy of the Nova Plus RF tube — finer lines, cleaner edges, and unmatched detail compared to traditional Nova glass tube systems.

80W vs 60W

Speed That Cuts Ahead

See how the 80W Nova Plus laser machine outpaces the 60W model when cutting thin materials. Faster cuts, greater efficiency, and more productivity for your business.

80W vs 60W

Power That Cuts Deeper

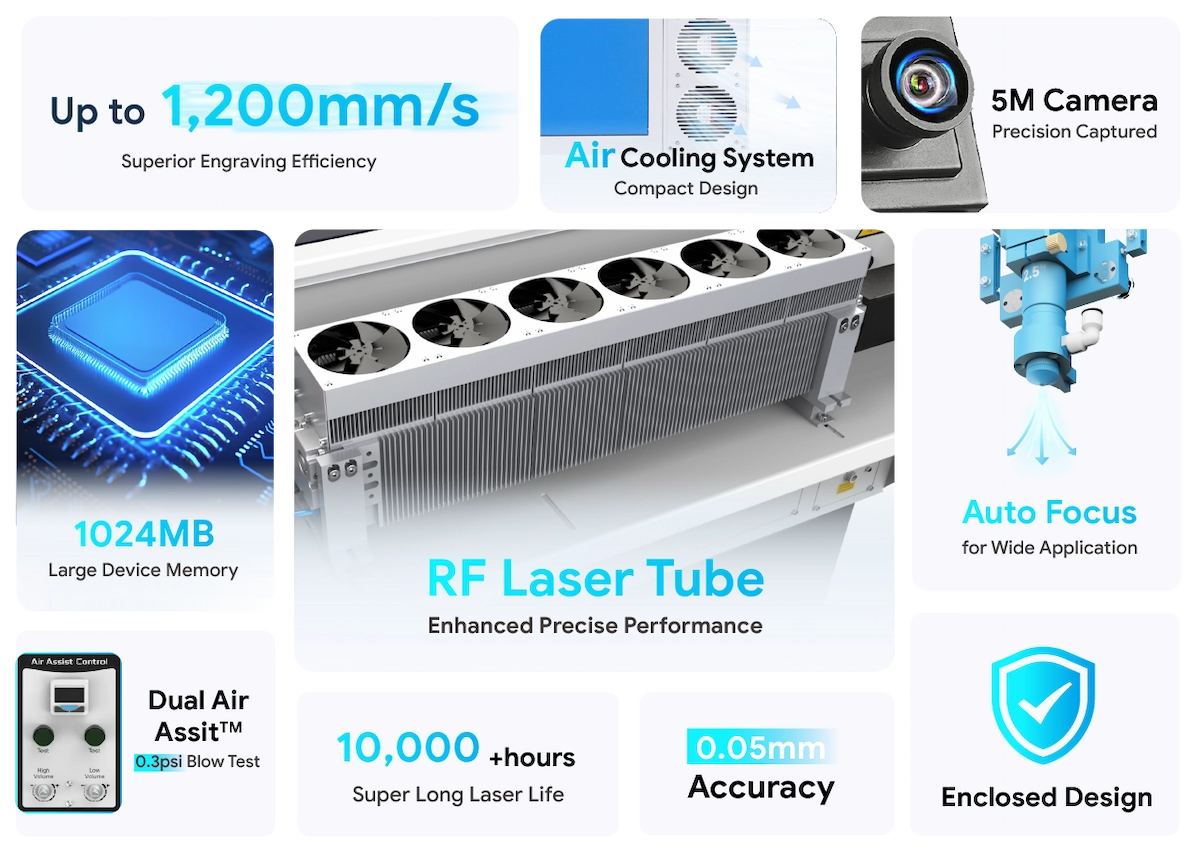

More Upgrades in the Nova Plus

Auto-focus

Laser Head

Dual Air Assist

Air Intake

Cooling System

Auto-focus

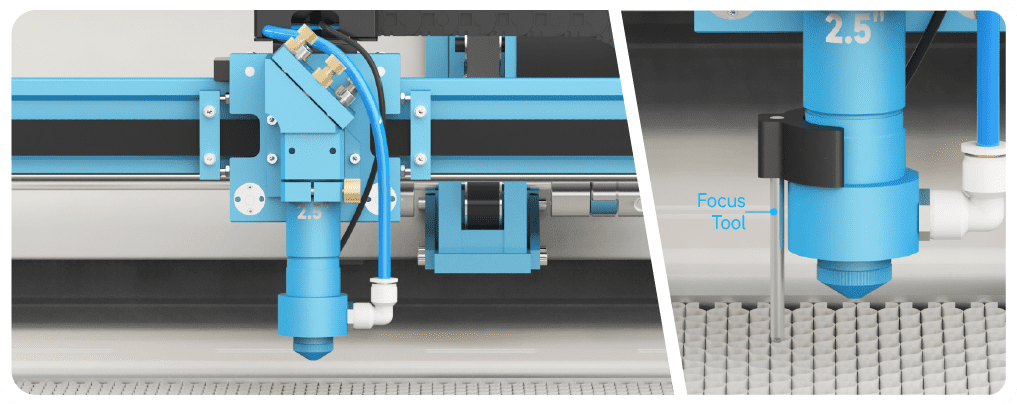

Easy and Precision Focus
for Every Application

Nova Plus features an upgraded cone-head touch auto-focus system, delivering effortless operation and en-
hanced focus accuracy.

For specialized applications like pass-through door usage, long-focus engraving, or working with soft materials,
the manual focus mode with a fixed-focus stick ensures precise alignment every time.

Laser Head

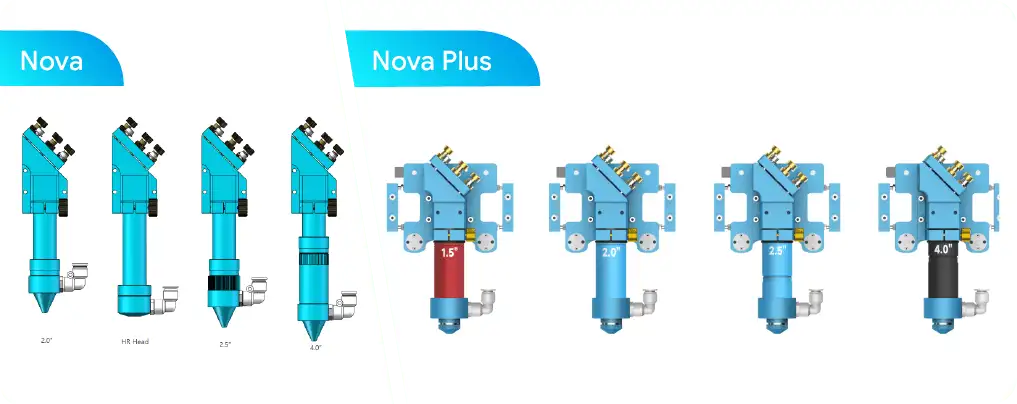

Laser Head Upgrades
for Precision and Versatility

Nova Plus series features a comprehensive laser head upgrade with four lens tube sizes-1.5”, 2”,2.5”, and 4”-each designed for a wide range of processing needs.

Regardless of size, the 6mm distance from the cone head to the material ensures consistent and efficient auto-focusing across all lenses.

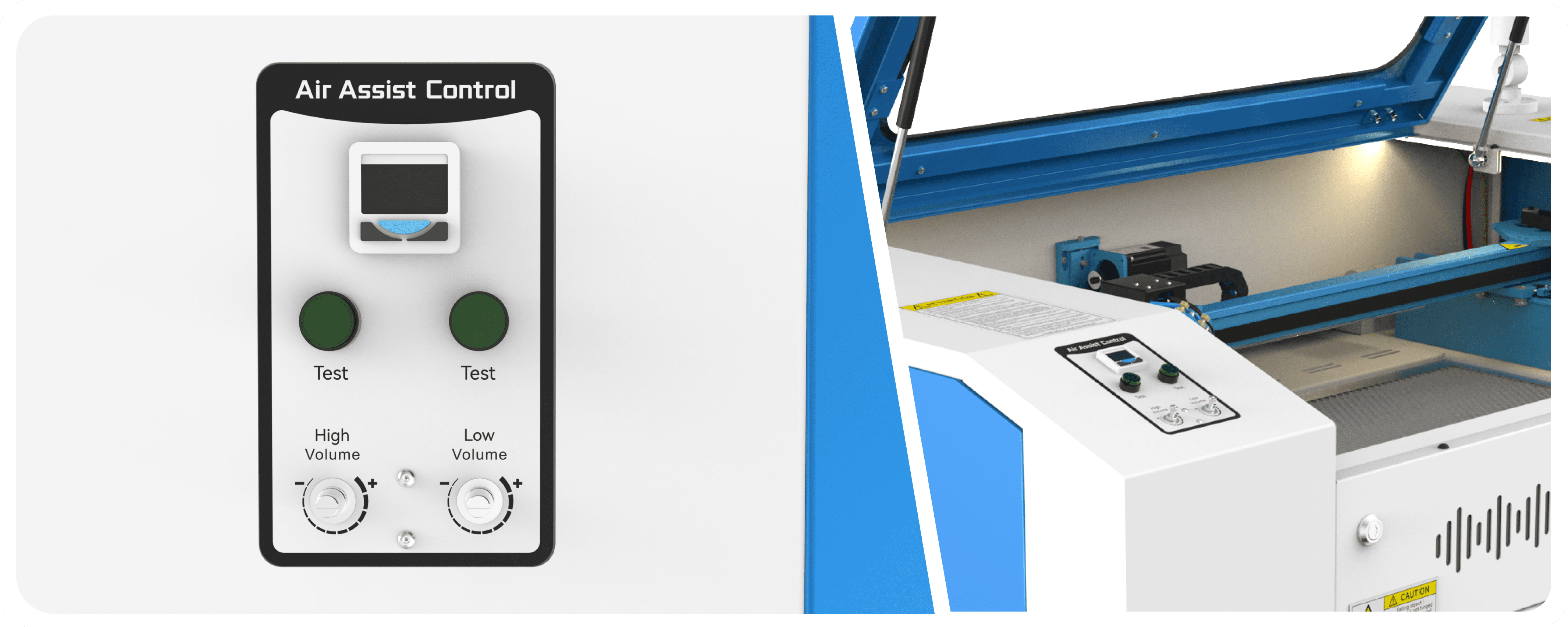

Dual Air Assist

Additional Air Pressure Detection
for Enhanced Protection

Apart from the Dual Air Assists™, an air pressure detection feature is added into Nova Plus, designed to protect your lens and prevent fire hazards.

The system ensures clear visibility of airflow, while the air pressure monitor automatically pauses the machine if the pressure drops below 0.3psi, safeguarding your equipment and enhancing safety.

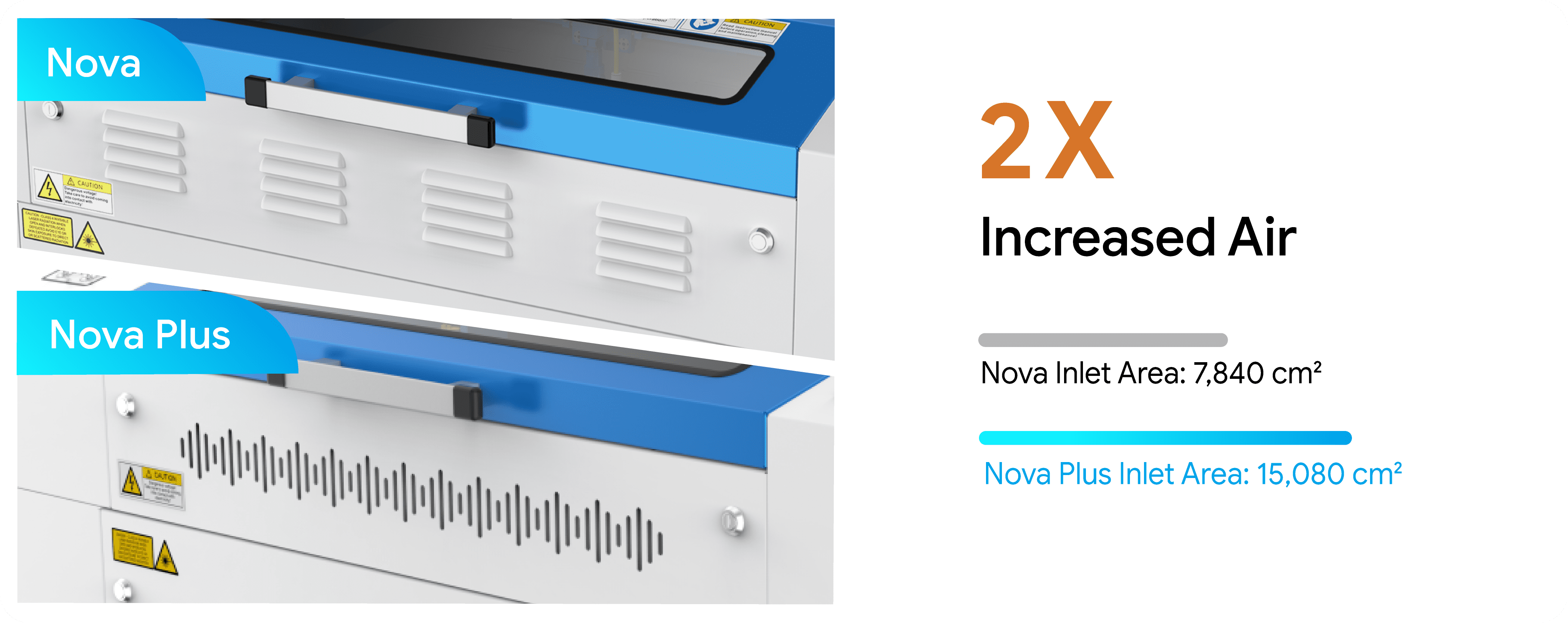

Air Intake

Enhanced Air Intake
for a Cleaner Workspace

Nova Plus features a redesigned front air intake baffle with a 92% larger intake area compared to the Nova.

This upgrade significantly boosts smoke and fume extraction, ensuring a clearer, healthier workspace-especially
during high-output jobs. Enjoy a more user-friendly experience with improved air quality and efficiency!

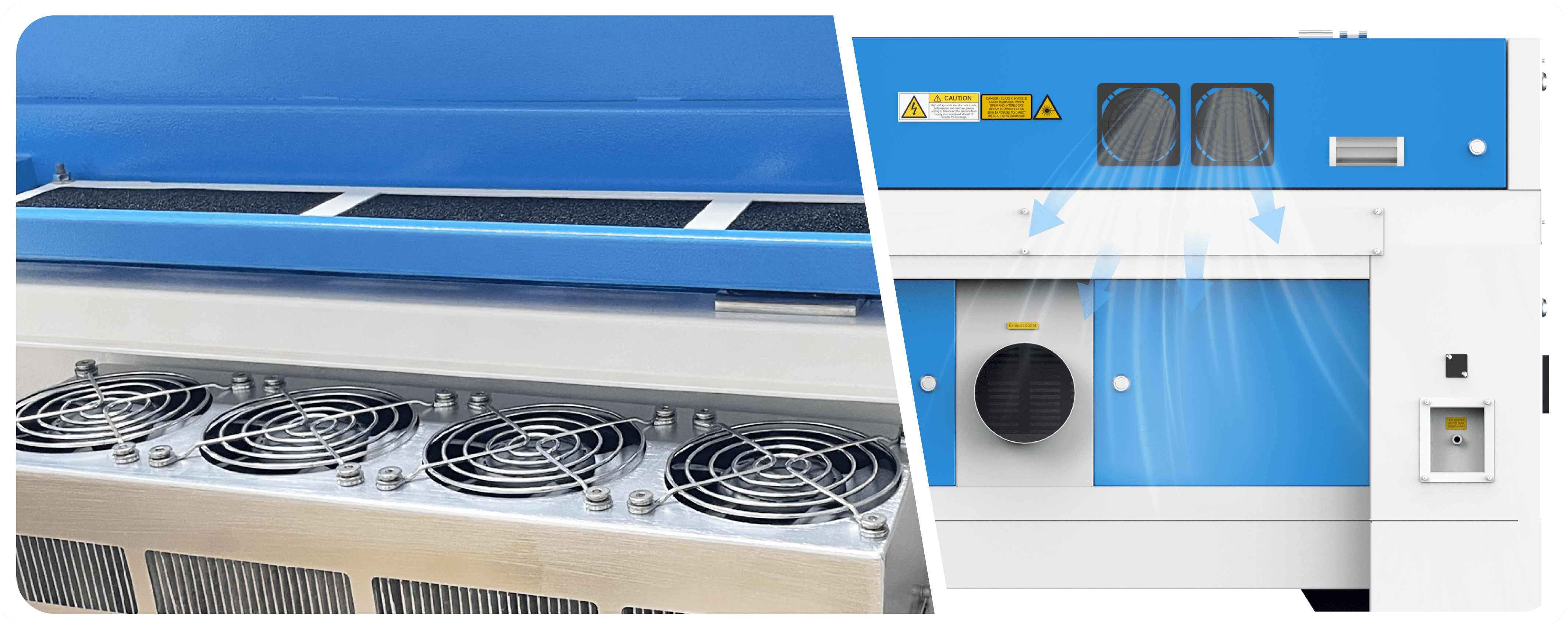

Cooling System

All-in-One Cooling
for Compact Design

Nova Plus features an air-cooled, fully integrated cooling system, removing the need for separate chillers and streamlining both setup and maintenance.

Perfect for users seeking an all-in-one, high-performance machine, this system provides reliable cooling for opti-mal operation.

Easy and Precision Focus
for Every Application

Nova Plus features an upgraded cone-head touch auto-focus system, delivering effortless operation and en-hanced focus accuracy.

For specialized applications like pass-through door usage, long-focus engraving, or working with soft materials,the manual focus mode with a fixed-focus stick ensures precise alignment every time.

Laser Head Upgrades
for Precision and Versatility

Nova Plus series features a comprehensive laser head upgrade with four lens tube sizes-1.5”, 2”,2.5”, and 4”-each designed for a wide range of processing needs.

Regardless of size, the 6mm distance from the cone head to the material ensures consistent and efficient auto-focusing across all lenses.

Additional Air Pressure Detection
for Enhanced Protection

Apart from the Dual Air Assits™, an air pressure detection feature is added into Nova Plus, designed to protect your lens and prevent fire hazards.

The system ensures clear visibility of airflow, while the air pressure monitor automatically pauses the machine if the pressure drops below 0.3psi, safeguarding your equipment and enhancing safety.

Enhanced Air Intake
for a Cleaner Workspace

Nova Plus features a redesigned front air intake baffle with a 92% larger intake area compared to the Nova.

All-in-One Cooling
for Compact Design

Nova Plus features an air-cooled, fully integrated cooling system, removing the need for separate chillers and streamlining both setup and maintenance.

Perfect for users seeking an all-in-one, high-performance machine, this system provides reliable cooling for opti-mal operation.

Explore Endless Creative Possibilities

Whether you’re crafting intricate designs or cutting complex shapes, Nova Plus empowers you to push the boundaries of your creativity. From personalized gifts to industrial applications, redefine what’s possible with flawless engraving and cutting results that bring your ideas to life.

Hat Customization

Wood Signs

Home Decor

Cotton Tops

Engraving Photo

Coffee Table

Wood Map

Signs

Leather Patch

Tumblers

Greeting Card

Specifications

Take a closer look at what the Nova Plus has to offer.

Specification	Nova Plus 24	Nova Plus 35	Nova Plus 51	Nova Plus 63
Engraving / Working Area	600400155mm (23.6″ x 15.7″ x 6.1″)	900600225mm (35.4″x 23.6″x 8.9″)	1300900225mm (51.2" × 35.4" × 8.9")	16001000mm225mm (62.9″ x 39.3″ x 8.9″ )
Max Part Size	Pass through closed: 615470155mm (24.2″ x 18.5″ x 6.1″) Pass through open: 610∞20mm (24.0″ x ∞ x 0.8″)	Pass through closed: 931651225mm (36.6″x 25.6″x 8.9″) Pass through open: 960∞20mm (37.8″x ∞ x 0.8″)	Pass through closed: 1331955225mm (52.4" × 37.6" × 8.9") Pass through open: 1360∞20mm (53.5" × ∞ × 0.8")	Pass through closed: 16311055225mm (64.2″ x 41.5″ x 8.9″) Pass through open: 1660∞20mm(65.4″ x ∞ x 0.8″)
Machine Size	1120865682mm (44.1″ x 34.1″ x 26.9″)	1,5201,1521,115mm (59.8″ x 45.3″ x 43.9″)	1,9201,5021,115mm (75.6" × 59.1" × 43.9")	222015521115mm (87.4″ x 61.1″ x 43.9″)
Laser Wattage	60W RF Metal Tube	60W, 80W RF Metal Tube	60W, 80W RF Metal Tube	100W, 120W RF Metal Tube
Internal Memory	Store multiple files up to 1 GB. Engrave any file size.
Laser Source	CO2 RF Matel Tube, Unmatched laser precision. Average lifespan: 10000 working hours
Electrical Requirements	Standard 110v or 220v AC 60Hz Single Phase, dedicated 15A circuit
Air Assist	Dual air assist and air volume meter.
Software	LightBurn software optional; supports Windows, Mac, and Linux
Red Dot Pointer	Shows where laser will fire; easy positioning
Camera System	Comes with over-head camera as standard
Operating Modes	Optimized raster, vector, or combined modes
Easy Adjustable Home	New home position can be set by hand for items not easily placed in the top corner
Motion Control System	Engraving speeds up to 1,200mm/s
Safety	Open cover protection, air assist protection, heat alarm system
Auto Focus	Cone-head touch auto focus system
Cooling	Air Cooling			Water Cooling
Motorized Table	Includes removable honeycomb and solid metal blade (knife-style) bed
Laser Heads	2.5" Head / Lens included; Optional 1.5", and 4.0" heads available.
TL-Timer (Smart Board)	Relay switch controls for red and green alarm lights, air assist system, exhaust system, and automatic power supply for rotary attachment.
Warning Light	Red light means working, and green light means safe.
Warranty	The whole machine is under warranty for two years, and the RF tube is for one year.

FAQs

What are the differences between the Nova Plus and the Nova? How should I choose?

The key difference between the Nova Plus and the Nova is the upgrade from a CO₂ glass tube to a CO₂ RF tube, delivering higher engraving precision and enhanced cutting power. This also increases speed from 1000 mm/s to 1200 mm/s. Thanks to the RF tube’s advanced capabilities, air cooling is sufficient, eliminating the need for an additional water chiller.

	Nova Plus Series	Nova Series
Laser Tube	RF Metal Tube (2000DPI 10,000 hour lifespan)	Glass Tube (500DPI 2000-4000 hour lifespan)
Acceleration	2.5G	1G
Speed	1200mm/s	1000mm/s
Auto focus	Easier focusing, suitable for transparent acrylic, with auto-focusing capability anywhere.	Not suitable for transparent acrylic, with a fixed focusing area.
Camera	Standard	Optional
Cooling	Alr Coollng	Water Cooling

Can I upgrade my Nova to the Nova Plus?

No, upgrading from the Nova to the Nova Plus requires structural changes to the machine and must be done at the factory.

How do I choose the right laser machine for my needs?

Choosing the right laser can be daunting, but we are here to help! The best way to figure this out is to call us or set up a time to speak to one of our laser experts. They will ask you questions about what you’d like to create and help you find a machine to suit your needs and budget.

The main things to consider are:

How much space do I have?
What materials do I want to cut or engrave?
How thick of material do I want to be able to cut?
What is my budget?
Am I going to be doing production runs or one-off projects?

We’ve written a more in-depth article on this here.

What is the maximum power available for the Nova Plus Series?

The Nova Plus Series currently offers a maximum power of 120W, equipped with a high-frequency RF CO₂ laser tube. Compared to traditional glass tubes, RF (radio frequency) tubes deliver more stable power, longer lifespan, and superior engraving precision—especially for fine details and high-speed production. With 120W of cutting power and the reliability of an RF source, the Nova Plus is an excellent choice for businesses that need clean results, long-term durability, and faster job turnaround times across a wide range of materials.

Is the Nova Plus suitable for large-scale production?

Absolutely. The Nova Plus is built for continuous, high-volume work. The RF laser tube maintains stable output even over long jobs, while the machine’s robust frame and motion control system ensure precise, repeatable performance. It’s ideal for businesses producing signage, packaging, custom products, and more.

What is the warranty for the Nova Plus and its RF tube?

The machine comes with a 2-year warranty. The RF tube usually carries a 1-year warranty depending on the supplier.

What kind of support is available after purchase?

We provide free training, responsive technical support within 24 hours, and a global agent network to assist you locally.

Is the Nova Plus worth buying?

Yes—the Nova Plus is absolutely worth the investment, especially for users who need a laser machine built for high-precision, high-volume work.
Here’s why many professionals choose the Nova Plus:
✅ Industrial-Grade Performance
The Nova Plus is equipped with a high-frequency RF laser tube, offering faster and more precise engraving, and a longer lifespan than traditional glass tubes. It’s built for consistent output, whether you’re doing intricate engraving or full-depth cutting.
✅ Lower Maintenance, Higher Uptime
RF systems are more stable and require less frequent alignment or tube replacement. That means less downtime and fewer interruptions to your workflow.
✅ Ideal for Growth
Whether you’re scaling your product line, fulfilling custom orders, or running batch production, the Nova Plus gives you the speed, accuracy, and consistency you need to grow your business with confidence.
✅ Safety + Workflow Efficiency
With features like full enclosure, dual-camera system, autofocus, touchscreen controls, and offline-capable software, the Nova Plus is not only powerful—but also safe and easy to operate, even in shared workspaces or teaching environments.
In short: If you’re looking for a laser system that combines industrial-grade power with user-friendly design, the Nova Plus offers outstanding long-term value. It’s a smart upgrade for makers, schools, and manufacturers who care about both quality and efficiency.

Is the Thunder Nova Plus Series difficult to set up?

Not at all! In fact, Nova Plus Series features user-friendly design and easy setup process. At trade shows, our team can go from unboxing to fully operational in just 30 minutes—and you can, too. Unlike many lasers that necessitate a complex alignment upon arrival, our nova plus series are robustly constructed to maintain alignment during transit. This design philosophy ensures that if a machine is prone to misalignment during shipping, it’s likely to require frequent realignments, leading to lost time and unnecessary frustration for you. Inside the box, you’ll find detailed instructions and all essential tools included. And if you need help, our support team is only a call away.
