For decades, CNC machining and EDM have been the backbone of mold making. However, as product designs become more intricate and market demands for speed increase, these traditional methods are hitting a wall, especially in lead time and design flexibility.

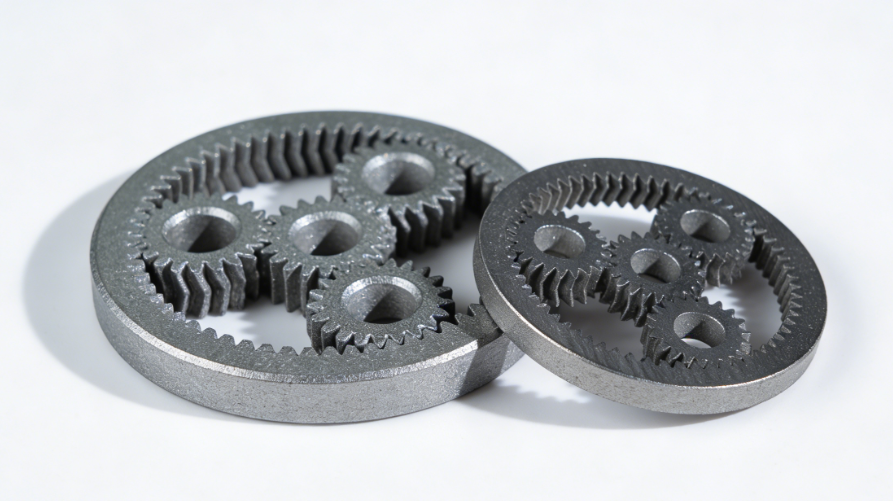

This is where Metal 3D Printing (especially SLM and DMLS) transforms the industry. By enabling complex conformal cooling channels that follow the part’s exact contour, this technology promises to slash production cycles by 20–40% and compress tool lead times to just 5–7 days. However, these performance leaps come with a significant price tag.

This leads to the ultimate industry dilemma: Do the radical efficiency gains justify the steep upfront investment? Is metal 3D printing truly worth it for mold making?

1. Traditional Methods vs. Metal 3D Printing: A Comparative Analysis

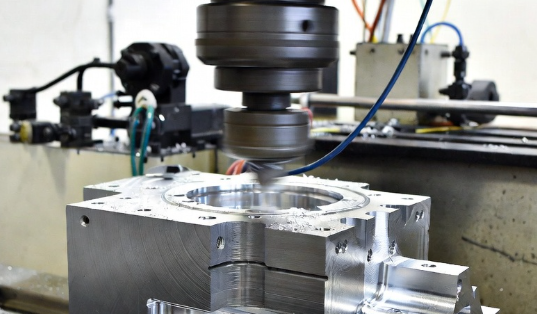

For decades, mold making has relied on traditional subtractive manufacturing methods such as CNC machining, EDM, and WEDM. These processes are well established, highly precise, and trusted across the industry. For standard mold geometries and stable production requirements, they continue to deliver reliable results. However, as market demands evolve, the limitations of these methods are becoming increasingly difficult to ignore:

Limited design freedom

Traditional subtractive processes are inherently constrained by tool accessibility. Complex internal features—such as conformal cooling channels, curved passages, lattice structures, or enclosed cavities—are often impossible to manufacture because cutting tools and EDM electrodes can only process areas they can physically reach. As a result, mold designers are frequently forced to simplify geometries or compromise on cooling layouts, prioritizing machinability over optimal mold performance.

Long lead times

Conventional mold manufacturing involves multiple sequential steps, including rough machining, semi-finishing, electrode design and fabrication, EDM processing, heat treatment, and final finishing. Each step requires separate setup, alignment, and inspection. These processes significantly lengthen mold lead times, making it difficult for manufacturers to respond quickly.

Inefficient material usage

Subtractive manufacturing starts with oversized metal blocks, removing a substantial portion of material to achieve the final geometry. In mold making, this often means that a large percentage of high-value steel or alloy is turned into chips and scrap. While some material can be recycled, the cost of raw material, machining time, and waste handling remains high—especially when working with premium mold steels or specialty alloys.

Slow iteration cycles

Any design modification often requires restarting major parts of the machining process, increasing cost and delaying validation. As mold designs become more complex and product lifecycles shorter, these constraints directly impact cost, speed, and competitiveness.

Why Adopting Metal 3D Printing?

Instead of cutting material away, metal 3D printing parts are formed additively—enabling a fundamentally different design and manufacturing logic. This shift brings several key advantages:

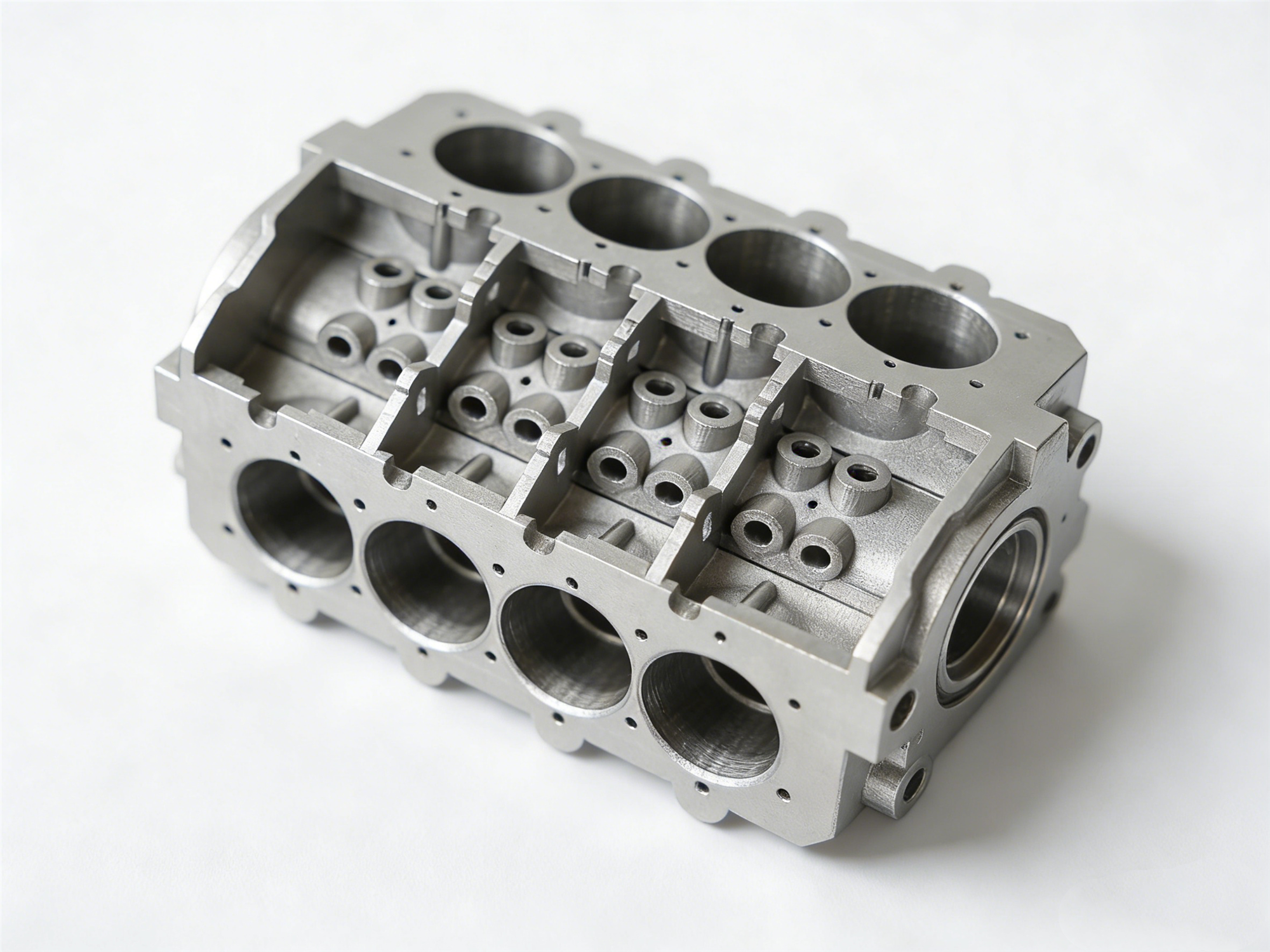

More Complex Geometries

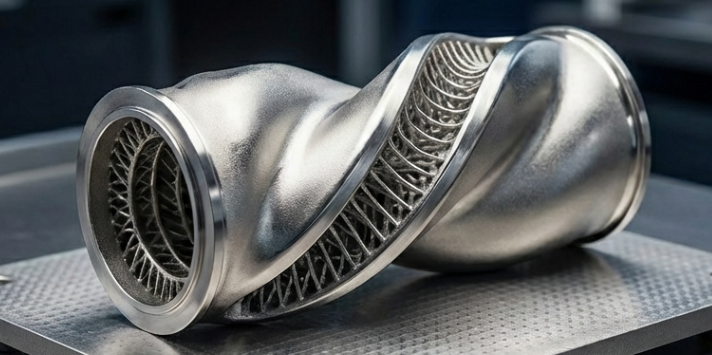

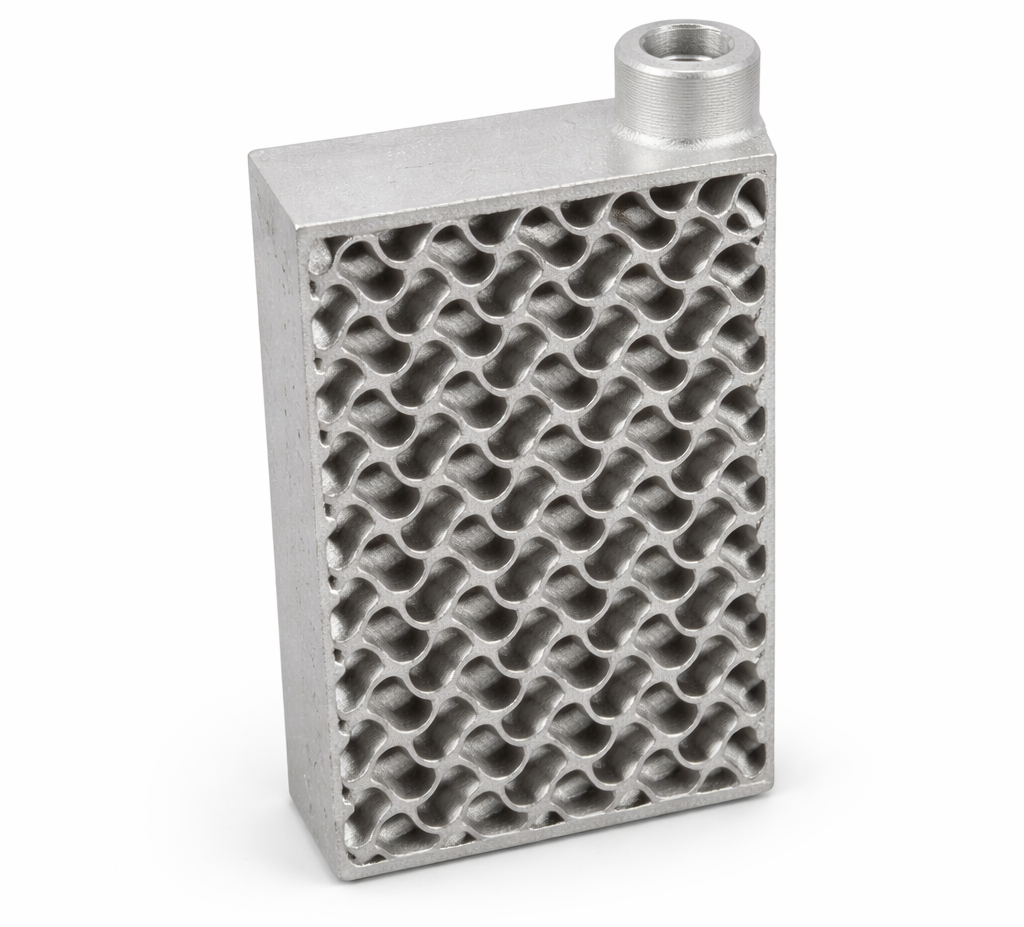

Metal 3D printing supports complex external geometries and internal structures — such as true conformal cooling channels that follow the exact part contour of the cavity surface, spiral helices, honeycomb lattices, topology-optimized ribs, porous venting zones, ultra-thin walls down to 0.4 mm, and internal undercuts with zero draft angles — that are impossible or extremely difficult (and expensive) to achieve with traditional CNC machining, deep-hole drilling, or EDM methods.

Rapid prototyping

Time is money in mold making. Compared with traditional mold making, metal 3D printers dramatically reduce mold lead times and manufacturing cycles. In some cases, cycle time can be shortened by 20–40%, allowing for faster prototyping, design validation, and iteration, which translates into a real competitive advantage.

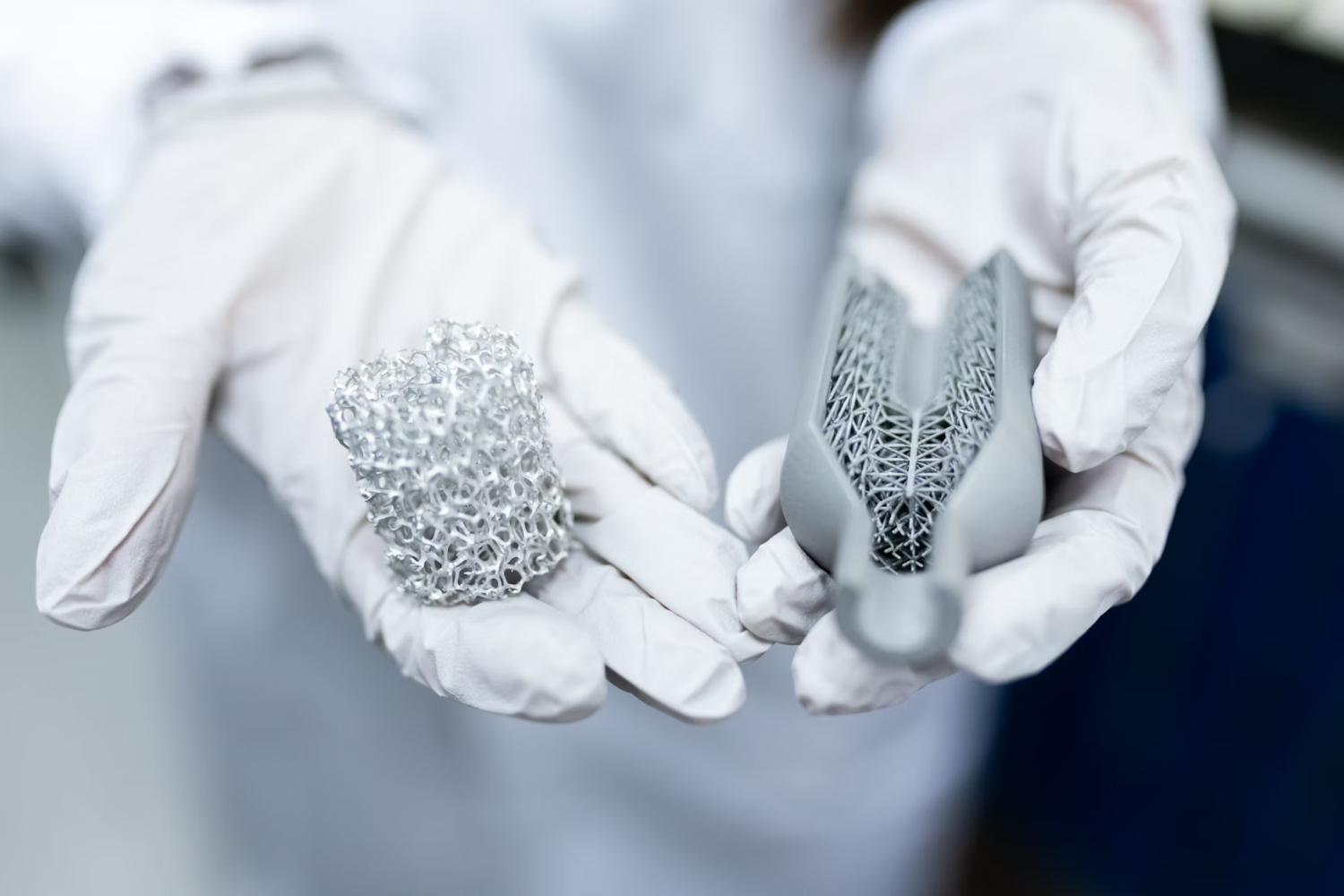

High Precision and Consistent Quality

Metal 3D printing delivers high dimensional accuracy (up to ±0.05mm) and excellent repeatability. By precisely building molds layer by layer, it ensures consistent quality across multiple parts; reduces defects caused by warping, shrinkage, or thermal stress; and maintains tight tolerances throughout the production run.

Higher Material Utilization

Unlike traditional mold-making methods, metal 3D printing deposits material only where it is required, significantly reducing waste. This is particularly advantageous when working with high-cost alloys, allowing material utilization rates to reach 80–85% or more, which translates into substantial cost savings for complex molds.

Lightweight Design and Extended Mold Lifespan

Through topology optimization and internal structural design, molds can be made lighter without compromising strength. Reduced weight improves handling and can contribute to longer mold life by reducing mechanical stress during use.

Not a Replacement, but a Complement

It is important to note that metal 3D printing is not intended to fully replace traditional machining. Instead, it serves as a complementary technology. In practice, many manufacturers adopt a hybrid approach:

• Critical mold inserts are produced using metal 3D printing.
• Standard mold components are still machined using CNC or EDM.

This combination allows manufacturers to balance cost, performance, and production efficiency—using each technology where it delivers the most value.

Comparison table of Mold Making Methods

2. Which Industries Benefit Most from Metal 3D Printing for Mold Making?

Metal 3D printing for mold making is particularly valuable in industries where complex designs, rapid iterations, or high-performance requirements are common. Key sectors include:

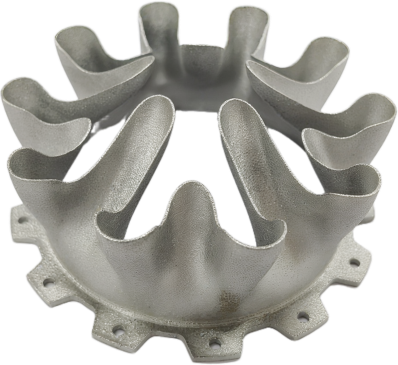

2.1 Automotive & Racing

• Rapid prototyping of tooling for injection-molded components
• Production of low-volume parts and complex interior or exterior components

Benefit: reduced lead time for new model launches and faster design iteration

2.2 Consumer Electronics

• Molds for small, intricate parts with tight tolerances
• Enables rapid prototyping for frequent product updates

Benefit: supports fast-paced product cycles and reduces tooling costs

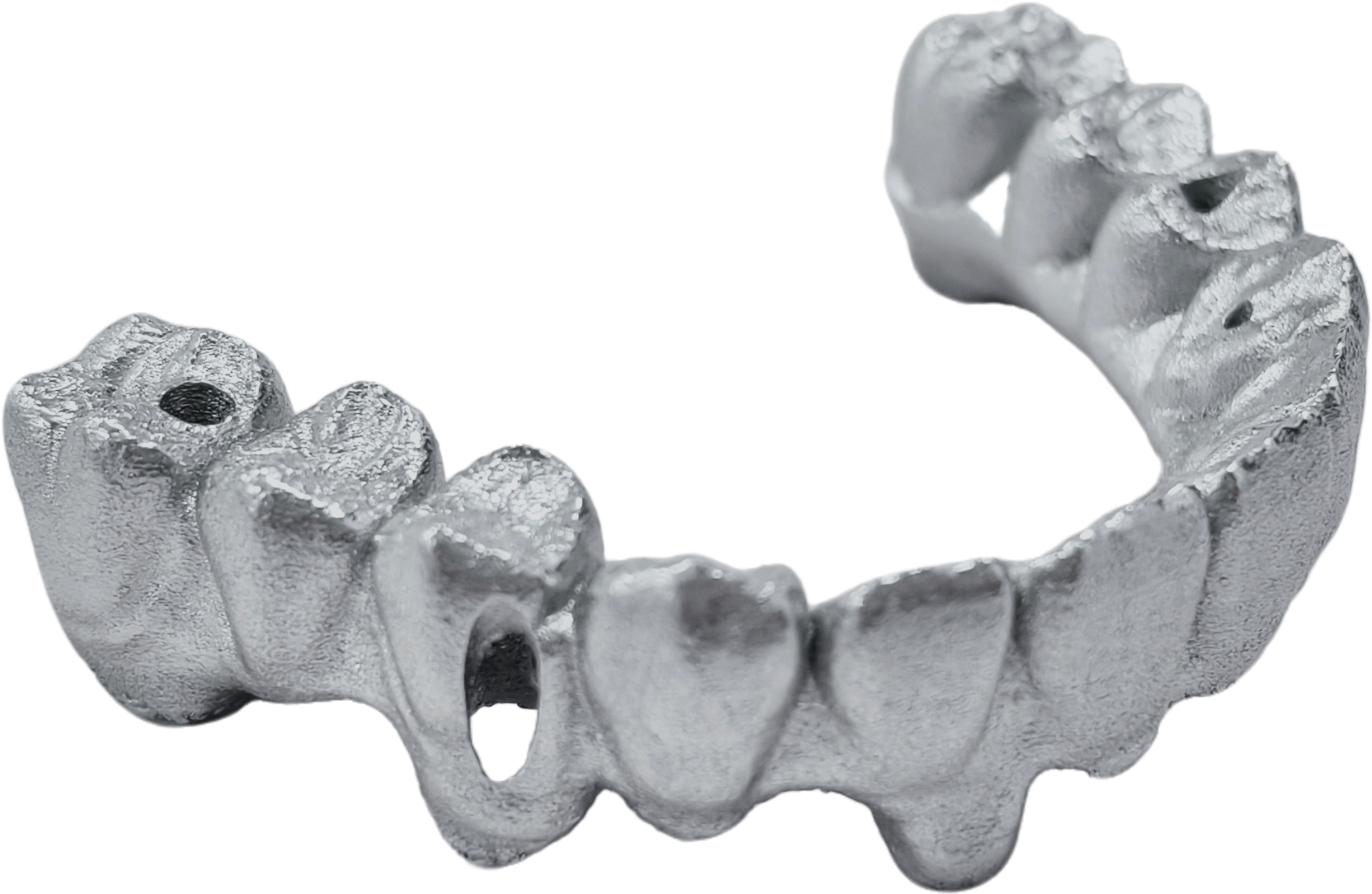

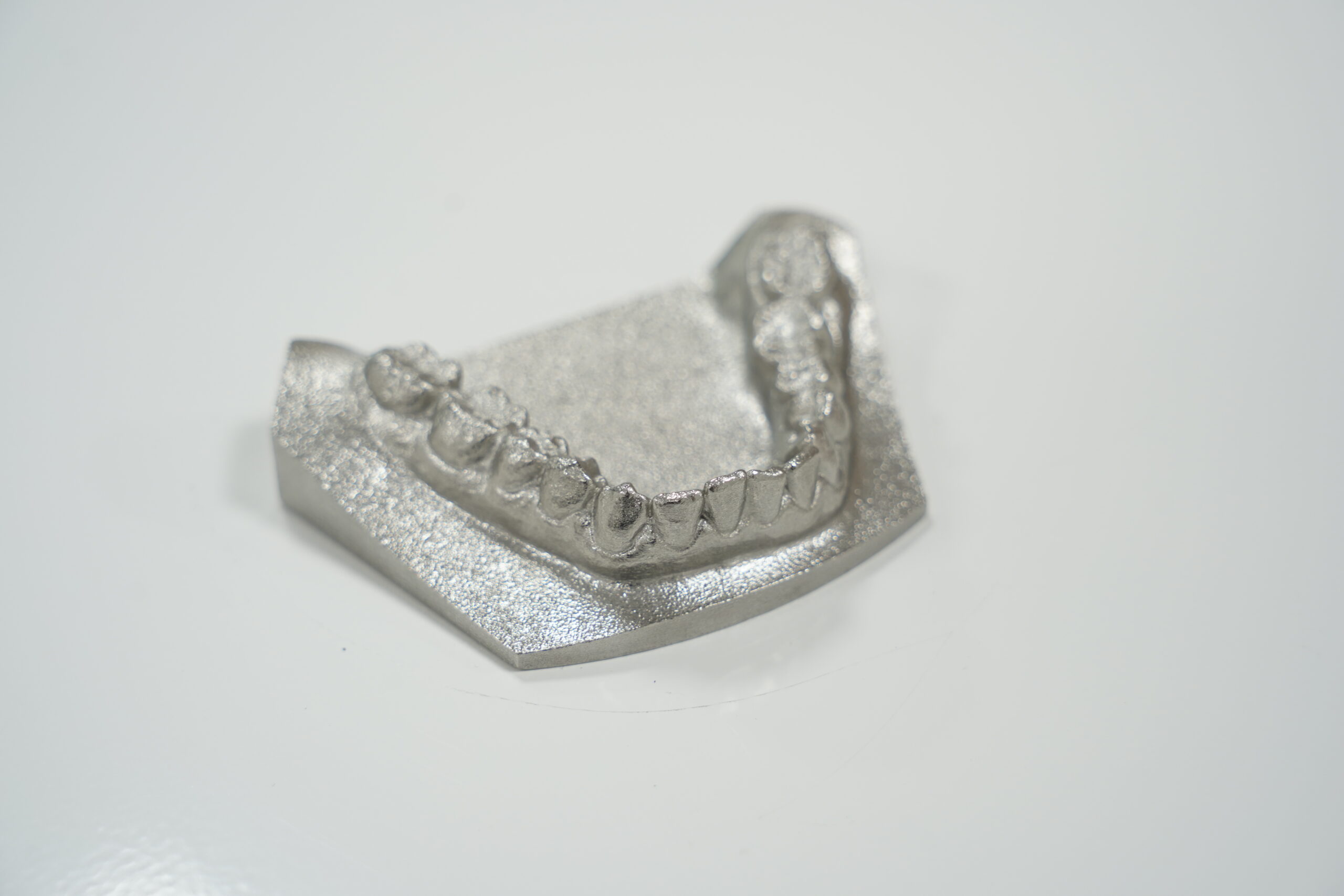

2.3 Medical Devices

• Custom or low-volume medical components
• Molds for biocompatible plastics and intricate geometries

Benefit: high precision and repeatability, critical for regulatory compliance

2.4 Aerospace & Aviation

• Production of lightweight, complex parts with conformal cooling channels
• Molds for small-batch, high-performance components

Benefit: supports materials with high thermal and mechanical requirements

2.5 Industrial Equipment & Robotics

• Low-volume molds for functional prototypes or specialized equipment parts

Benefit: allows rapid iteration and testing while minimizing material waste

2.6 Consumer Goods & Lifestyle Products

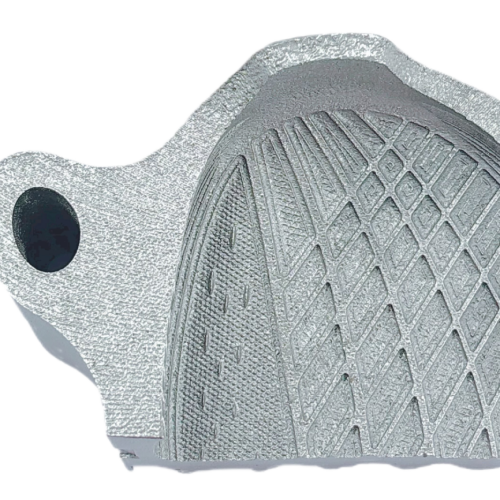

• Complex, customized designs (e.g., eyewear, high-end packaging, small decorative items)

Benefit: supports fast product development and design freedom

3. What Materials Can Be Processed with Metal 3D Printing?

Metal 3D printers can process a wide range of metals, making it highly versatile for mold-making applications. For mold making applications, the following materials are the industry standards:

3.1 Tool Steels

Commonly used for injection molds and die-casting molds, tool steels provide high hardness, wear resistance, and thermal stability. Metal 3D printing can produce complex cavities and internal cooling channels in tool steel molds that are difficult or impossible to achieve with CNC machining alone.

3.2 Aluminum Alloys

Lightweight and thermally conductive, aluminum alloys are ideal for rapid prototyping and low-volume mold production. They allow faster build and cooling times, helping manufacturers accelerate design validation and iterations.

3.3 Cobalt-Chrome Alloys (Co-Cr)

Known for exceptional strength, corrosion resistance, and high-temperature performance, cobalt-chrome alloys are widely used in aerospace, medical devices, and other high-performance applications. To be specific, Copper alloys offer thermal conductivity 5-10 times higher than tool steel. Metal 3D printing allows precise, complex geometries while maintaining material integrity.

3.4 Stainless Steel

Versatile and corrosion-resistant, stainless steel is suitable for a variety of molds, including general-purpose tooling and molds exposed to harsh environments. 3D printing stainless steel ensures consistent part quality and supports intricate internal features.

3.5 Nickel-Based Alloys

Nickel alloys offer excellent high-temperature resistance, making them suitable for molds used in demanding thermal processes, such as die-casting high-temperature metals or specialized industrial applications.

4. What to Consider Before Buying a Metal 3D Printing Machine

Before investing in a metal 3D printing system, it’s critical to evaluate whether the technology truly aligns with your business model, production needs, and long-term strategy. The following factors will largely determine whether the investment delivers real ROI—or becomes an underutilized asset.

4.1 Application Fit

Metal 3D printing excels in complex mold inserts, conformal cooling, and low-to-medium volume production. If most of your molds are simple, standardized, and high-volume, traditional CNC and EDM may remain more cost-effective.

Ask yourself:

• Do your molds suffer from cooling inefficiencies or long cycle times?
• Are internal features limiting performance or quality?
• Do customers demand faster turnaround or frequent design changes?

4.2 Production Volume & Utilization Rate

The ROI of a metal 3D printer is closely tied to how often it runs.

• High utilization (continuous insert production, prototyping, internal tooling) shortens payback time.
• Low utilization significantly extends ROI and increases financial risk.

Many successful adopters justify the investment by using the machine across multiple product lines or departments, not just one mold project.

4.3 Post-Processing Capability

Metal 3D printing is not a one-step solution.

You must account for:

• Heat treatment
• CNC finishing
• Surface polishing
• Quality inspection

Having in-house post-processing—or reliable partners—is essential to control cost, lead time, and quality.

4.4 Materials and Cost Structure

Powder materials are more expensive than bulk stock, but additive manufacturing:

• Reduces waste
• Eliminates unnecessary material removal
• Is especially economical for high-value alloys

Understanding material cost per insert, not just powder price per kilogram, is key.

4.5 Skills and Workflow Integration

Successful implementation requires:

• Design-for-additive (DfAM) expertise
• Process parameter optimization
• Cross-team collaboration between design, manufacturing, and QA

Without proper training and workflow planning, the technology’s advantages are easily lost.

5. Is Metal 3D Printing Worth the Investment?

The short answer is: Yes—but only under the right conditions.

Metal 3D printing is not a universal replacement for traditional mold-making methods. Instead, it is a high-impact tool for specific, high-value scenarios.

It is worth the investment if:

• You produce complex molds or inserts that benefit from conformal cooling
• You work with low-to-medium production volumes
• You use high-value materials where waste reduction matters
