The aerospace industry has always pushed the limits of manufacturing, balancing structural strength with aggressive weight reduction. Today, Selective Laser Melting (SLM), a core metal 3D printing technology, has evolved from a prototyping method into a proven solution for producing advanced aerospace components.

As metal 3D printing continues to expand, SLM enables aerospace manufacturers to combine advanced metallurgy with design freedom that traditional production methods cannot easily match. In this article, we explore how SLM supports lightweight structures, part consolidation, high-performance alloys, and more efficient aviation engineering.

1. The Aerospace Paradigm Shift: Overcoming Subtractive Limitations

Traditional aerospace fabrication often relies on “hog-out” machining, where large billets of expensive alloys are milled down to final parts. This approach can deliver strong components, but it is often inefficient when material cost, lead time, and sustainability are taken into account.

1.1 Minimizing the Buy-to-Fly Ratio

In aerospace manufacturing, the buy-to-fly ratio is a key measure of material efficiency. Traditional CNC machining can reach ratios of 15:1 or even 20:1, meaning a large percentage of high-value titanium or nickel-based superalloy may become scrap. SLM changes this equation by building parts layer by layer, producing near-net-shape components with a ratio that can approach 1.1:1.

This material efficiency is not only an environmental advantage. It also becomes a financial priority when working with exotic alloys where feedstock costs can be very high.

1.2 Design Freedom Beyond Traditional Tooling

Traditional design for manufacture often forces engineers to simplify geometries so cutting tools can reach specific features. SLM replaces many of these restrictions with design for performance. Internal cooling galleries, non-linear channels, organic forms, and aerodynamic structures can be produced in ways that are difficult or impossible with conventional drilling, casting, or machining.

1.3 Rapid Iteration and Shorter Development Cycles

Aerospace development cycles are often long because casting molds, special fixtures, and multi-step manufacturing processes require significant lead time. SLM can compress this timeline by moving directly from a 3D model to a metal part. This helps R&D teams iterate on designs in days rather than months, which is especially valuable for next-generation propulsion systems, satellite components, and complex aerospace prototypes.

2. Engineering Precision: The Technical Core of Metal Additive Manufacturing

Precision is essential in aerospace manufacturing because component quality directly affects safety, reliability, and performance. High-end SLM systems combine high-energy optics, stable melt pool control, and careful thermal management to meet demanding production requirements.

2.1 Ensuring Full Density in Aerospace Superalloys

Aerospace-grade alloys such as cobalt-chromium and nickel-based superalloys require high energy density to achieve complete melting. Industrial SLM systems use high-power fiber lasers to maintain stable melt pools, helping parts achieve nearly full relative density and reducing the risk of fatigue-inducing porosity.

2.2 Micron-Level Control for Complex Geometries

With beam diameters typically ranging from 40–100 μm, SLM provides fine control over feature resolution. This makes it suitable for delicate thin-wall structures, sharp edges, aerodynamic surfaces, and intricate internal fluid channels that must maintain dimensional fidelity and metallurgical integrity.

3. Weight Reduction Through Topology Optimization and Lattice Structures

In aerospace, every kilogram matters. Reducing mass can improve fuel efficiency, payload capacity, and long-term operating costs, making lightweight design one of the most important advantages of SLM metal 3D printing.

3.1 Biomimetic Designs and Generative Geometry

Topology optimization uses algorithmic solvers to remove material from non-load-bearing areas. The resulting parts often look organic, bone-like, or biomimetic. These geometries are difficult for CNC milling, but they are well suited to SLM because the process builds the part layer by layer.

This approach can significantly reduce weight while preserving structural stiffness and required safety margins.

3.2 Lattice Structures for Stiffness-to-Weight Performance

SLM can also print internal lattice structures, creating engineered cores that reduce weight while supporting stiffness, energy absorption, vibration damping, and passive cooling. These lattice structures are valuable for satellite components, internal airframe supports, and other parts where high surface area and low mass are both important.

4. Monolithic Innovation: Structural Integration and Part Consolidation

One of the most transformative applications of SLM in aerospace is part consolidation. Instead of assembling many separate components, engineers can merge complex assemblies into a single monolithic unit.

4.1 Reducing Fasteners, Joints, and Welds

Every bolt, rivet, weld, and gasket can become a potential point of fatigue, leakage, or assembly error. By printing integrated parts, SLM can reduce the need for mechanical fasteners and lower the risk of stacked tolerances. Components such as fuel nozzles and heat exchangers that once required multiple parts and joining steps can be redesigned as single-piece structures.

4.2 Streamlining the Aerospace Supply Chain

When a complex assembly becomes a single printed part, the supply chain becomes simpler. There are fewer gaskets to track, fewer fasteners to source, and less assembly labor required. This can reduce the bill of materials and lower the chance of human error during production.

5. Material Resilience: Processing High-Performance Aerospace Alloys

Aerospace environments are demanding, with extreme thermal gradients, pressure, vibration, and corrosive conditions. SLM systems are designed to process high-performance alloys that can survive these environments.

5.1 Thermal Stability with Superalloys

Nickel-based and cobalt-chromium alloys are valued for their ability to maintain strength at high temperatures. SLM processes these alloys in a controlled inert atmosphere, such as Ar or N₂, helping final parts achieve the thermal stability required for exhaust manifolds, turbine-related parts, and propulsion components.

5.2 Fatigue Resistance and Certification Readiness

Consistency is essential for aerospace certification. High-quality SLM processes support uniform material properties across the build volume. Intelligent path planning can also help manage residual stress during the build, improving fatigue performance for demanding aerospace applications.

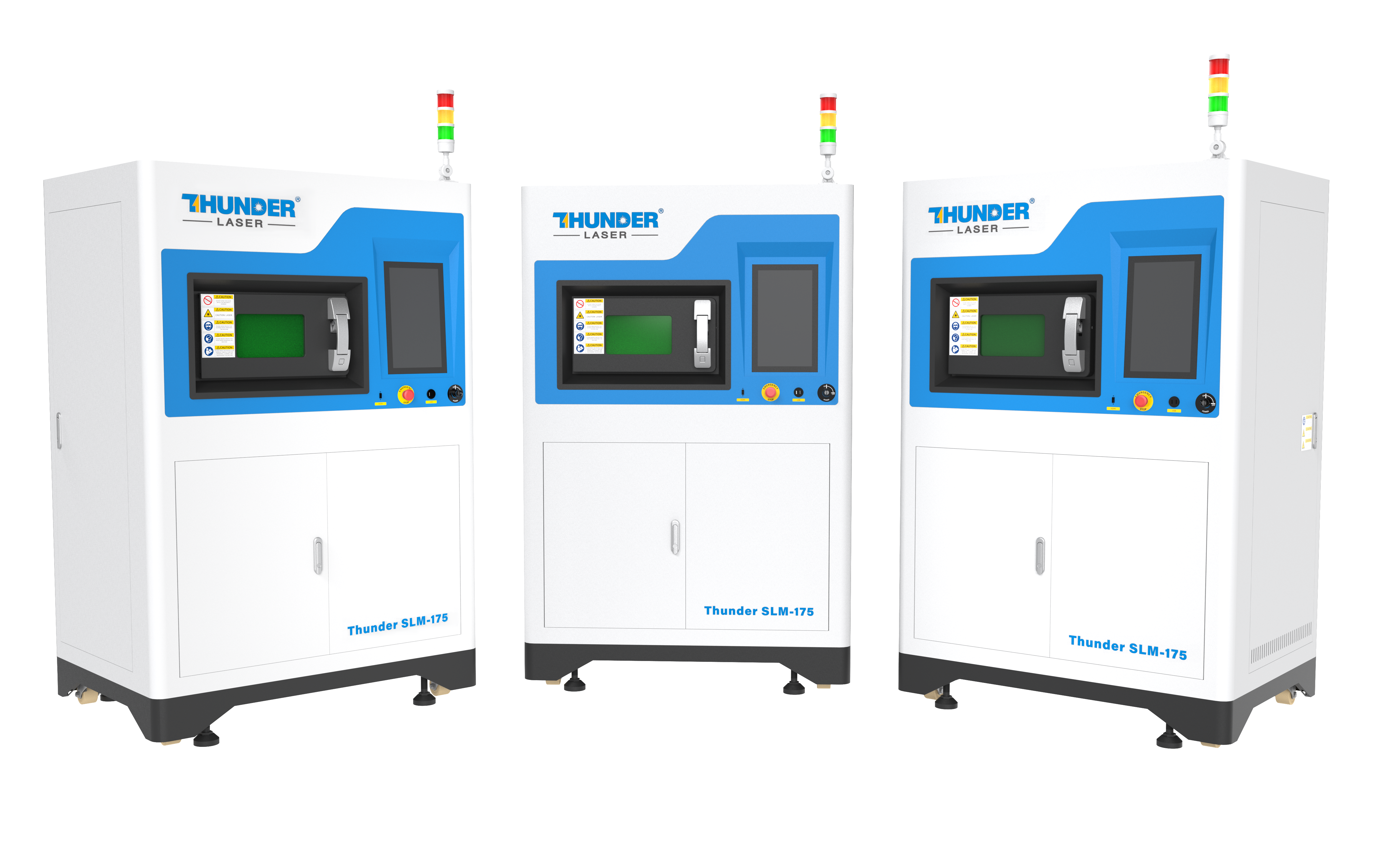

6. Thunder SLM-175: A Compact Industrial Solution for Aerospace R&D

For organizations exploring aerospace additive manufacturing without the cost and footprint of large-scale foundry equipment, the Thunder SLM-175 offers a compact industrial-grade solution. It features a 500W fiber laser, an adjustable beam diameter of 40–100 μm, and ±0.05 mm accuracy for high-precision metal parts.

Its 85% powder recovery rate helps make expensive aerospace alloys more economical to use, while Thunder Make software optimizes laser trajectories to improve efficiency by 15%. With its modular footprint and precision-focused design, the SLM-175 can support research, prototyping, and small-batch aerospace production.

7. Conclusion

The convergence of SLM technology and aerospace engineering has opened a new dimension of design. By moving toward monolithic, optimized, and lightweight structures, aerospace manufacturers can reduce material waste, simplify assemblies, and produce complex parts more efficiently.

As the technology matures, platforms that offer high precision, material versatility, and reliable process control will continue to support the next generation of aircraft, spacecraft, propulsion systems, and aerospace R&D.
