Coated Stainless Steel Tumbler
2026-09-04WHAT ARE YOU LOOKING FOR?
Search Across Products, Blog Posts, Support Content, And Resources.
2026-09-04
Key Information
Laser Machines
Material Needed
Coated Stainless Steel Tumbler / Rotary Attachment
Project File Download
Software Used
Tested by
Thunder Laser Application Team
Setting 1
Laser Engraving
Speed: 1700mm/s
Max Power: 25%
Frequency: 50kHz
DPI: 0.02
Passes: 5
Introduction
A coated stainless steel tumbler is a practical item that becomes much more personal with a custom laser-engraved name, logo, or graphic.
This project uses a Thunder Bolt and a rotary attachment to engrave the coated surface of a tumbler, revealing a clean contrast underneath. It is a great option for personalized gifts, branded drinkware, event items, and small custom orders.
Once the basic setup is ready, you can easily change the artwork for different names, patterns, or business logos while keeping the same workflow.
For more laser engraving ideas and machine information, explore the Thunder Bolt series and browse more projects in the Inspiration Library.
Before your work begins
Make sure the Thunder Bolt and rotary attachment are connected and operating normally
Prepare a clean, dry coated stainless steel tumbler for engraving
Check that the tumbler is installed straight and securely on the rotary attachment
Confirm the artwork size, engraving area, and rotary setup before processing
Operational Process
STEP01
Install the Rotary Attachment & Position the Tumbler
Install the rotary attachment on the Thunder Bolt and make sure it is connected properly before placing the tumbler.
Mount the coated stainless steel tumbler securely on the rotary attachment and align it so the engraving area faces upward. Check that the tumbler rotates smoothly, stays level, and does not slip during processing.
STEP02
Import & Adjust the Design File
Import your design into LaserMaker and adjust the artwork size to fit the available engraving area on the tumbler.
Check the artwork position and orientation carefully, especially if you are engraving a name, logo, or one-sided graphic. Set the engraving parameters to 1700mm/s speed, 25% max power, 50kHz frequency, DPI 0.02, and 5 passes.
STEP03
Set the Correct Laser Focus
Set the focus at the center of the coated stainless steel tumbler surface where the design will be engraved.
You can use auto focus first and then confirm the height manually if needed. Since the tumbler is curved, keeping the design within a suitable marking width helps maintain more consistent engraving results across the surface.
STEP04
Frame the Design & Start Laser Engraving
Run the Frame function first to preview the engraving position and verify that the design sits in the correct area on the tumbler.
Once the position is correct, start engraving at 1700mm/s speed, 25% max power, 50kHz frequency, DPI 0.02, and 5 passes. Monitor the machine during processing and make sure the tumbler rotates smoothly and remains secure on the rotary attachment.
STEP05
Post Processing

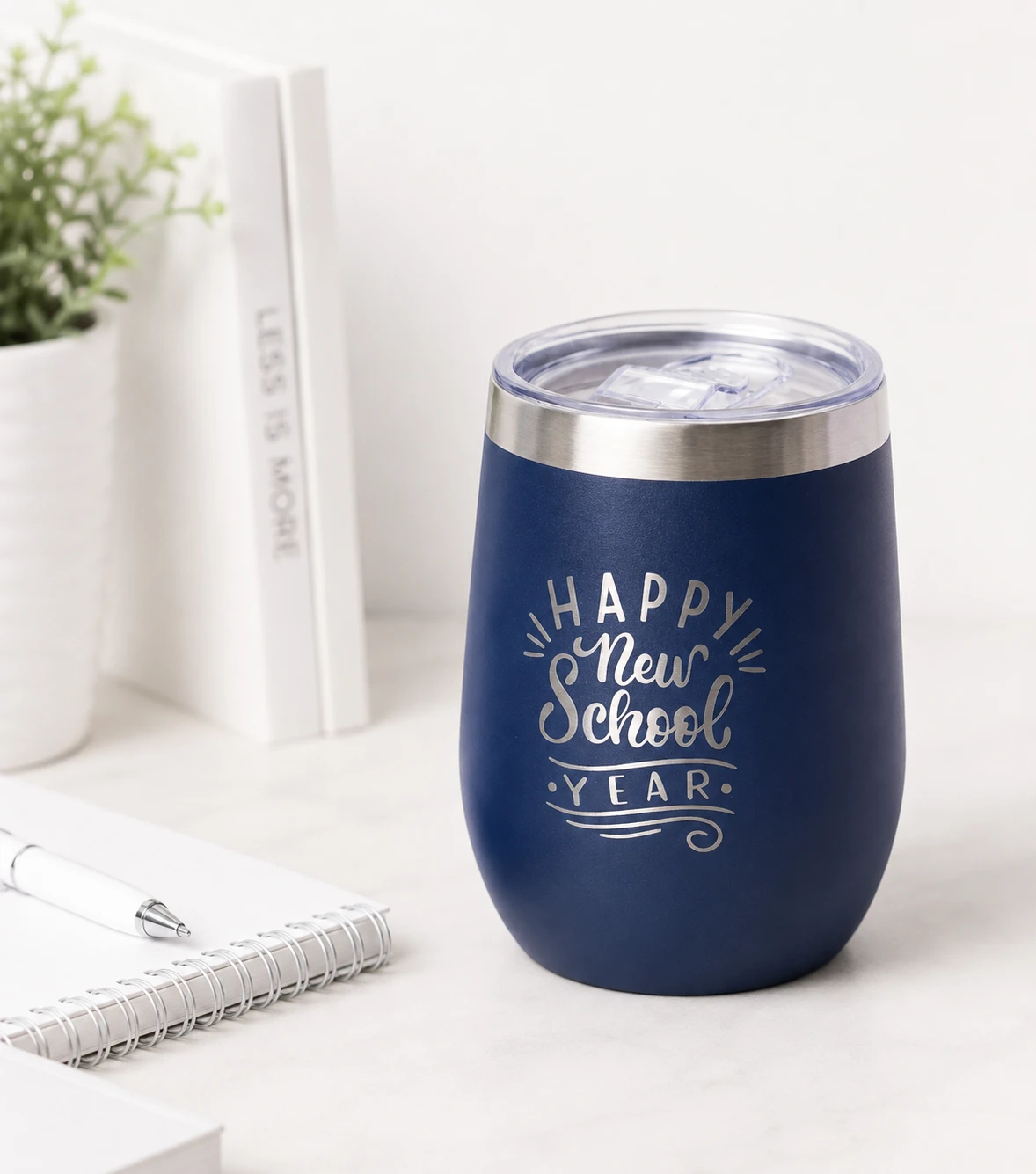

Remove the tumbler from the rotary attachment and inspect the engraved result for clean contrast, clear edges, and correct placement.
Wipe the tumbler gently with a soft cloth to remove dust or residue from the engraved area. If needed, clean the surface again so the exposed stainless steel detail looks crisp and ready for use or gifting.
Come and Try!
My coated stainless steel tumbler is finished. What will you engrave on yours?
Try a name, monogram, logo, or simple graphic to create personalized tumblers for gifts, branded drinkware, event giveaways, or your own custom product line.
For more laser engraved tumblers, coated stainless steel drinkware projects, and custom rotary engraving ideas, explore Thunder Laser machines or contact us to find the right laser engraver for personalized drinkware and small-batch customization.
