In galvo laser marking systems, precision and consistency depend heavily on a single optical component: the F-theta lens. This lens is essential for converting mirror-controlled laser movements into accurate, low-distortion markings across a flat working surface.

Whether you are engraving metal tags, coding plastic parts, or marking QR codes on anodized aluminum, the F-theta lens helps ensure your results are sharp, evenly scaled, and accurately positioned.

1. What Is an F-Theta Lens in Laser Marking?

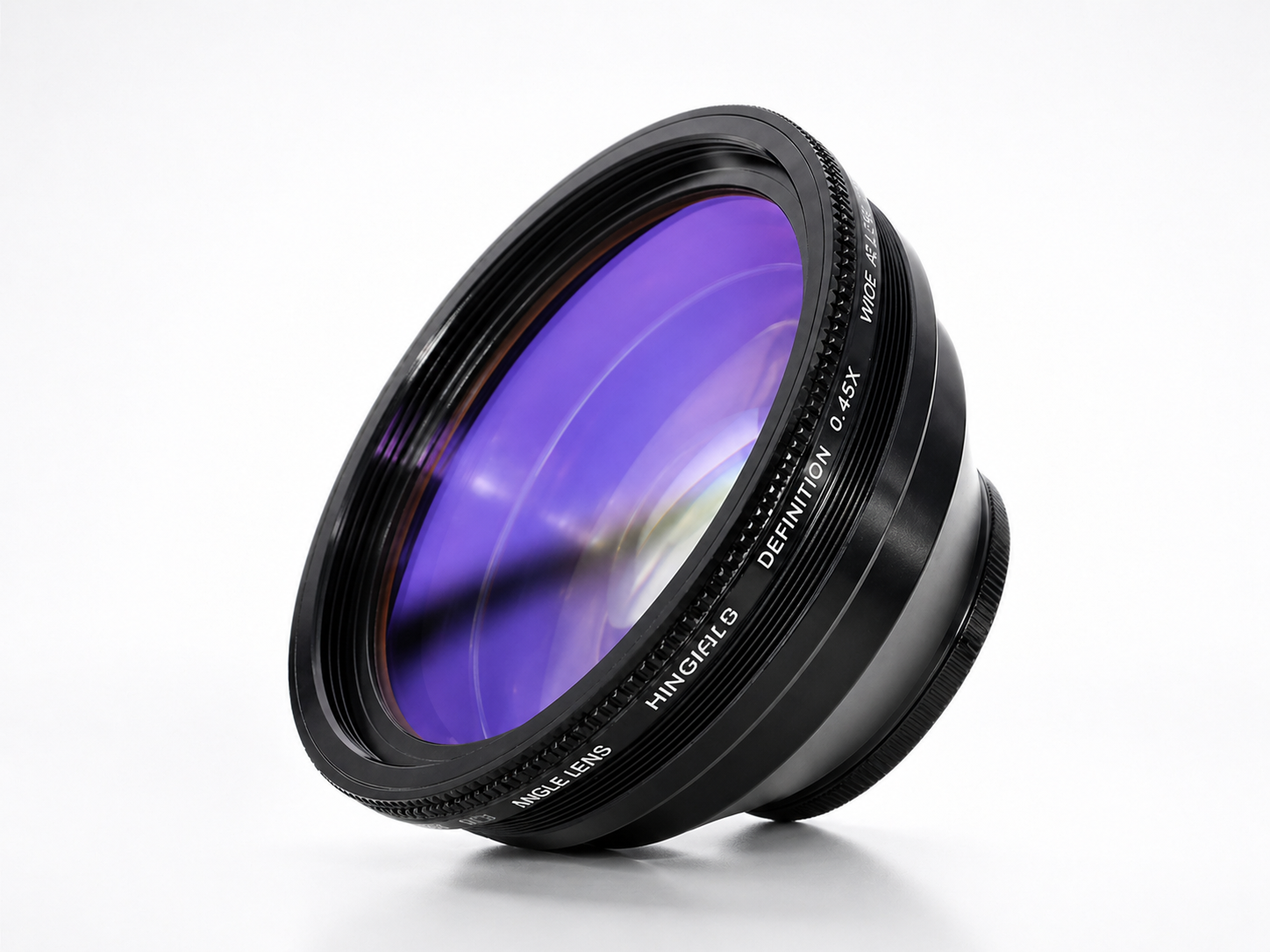

An F-theta lens, also known as a field lens or flat-field focusing lens, is a key optical component in galvo-based laser marking systems. Its primary role is to focus the laser beam onto a flat working surface, ensuring consistent spot quality, minimal distortion, and precise marking across the entire field.

In a typical galvo system, fast-moving mirrors, also called galvanometers, deflect the laser beam along the X and Y axes. However, these mirrors only change the angle of the beam, not its focal position. Without optical correction, the beam may go out of focus near the edges of the marking area, leading to:

• Uneven spot sizes.
• Distorted or blurred marks.
• Inconsistent energy delivery.
• Reduced edge accuracy.

This is where the F-theta lens becomes essential. Designed with a special optical profile, the F-theta lens corrects these distortions by keeping the beam consistently focused on a flat plane, regardless of how far the beam deflects from the center.

In short, the F-theta lens transforms the angled beam path into an optically corrected flat-field projection. This is crucial for achieving accuracy and repeatability in modern laser marking.

2. How to Select an F-Theta Lens for Laser Marking

Not all F-theta lenses are the same. Although they may look similar, each lens is designed to match a specific laser wavelength, output power, and application requirement. Choosing the right field lens ensures high-quality marking results and long-term optical reliability.

Whether you are marking fine serial numbers on metal or large logos on packaging, the right combination of coating, substrate material, and focal length directly affects marking precision, efficiency, and durability.

2.1 Match the Coating to Your Laser Wavelength

Every F-theta lens features an anti-reflective coating designed for a specific wavelength range. This coating plays a crucial role in optimizing marking performance and protecting the lens itself.

The anti-reflective coating should match the operating wavelength of the laser source. A properly matched coating minimizes reflection loss, maximizes laser energy transmission through the field lens, and helps protect the optical surface from high-intensity laser exposure.

Common coatings for F-theta lenses.

2.2 Choose the Right Substrate for Laser Power

The substrate material of an F-theta lens plays a vital role in optical quality, thermal stability, and compatibility with different laser types and power levels. Common substrate options include K9 optical glass, quartz composite materials, and pure fused silica, also known as fused quartz.

K9 optical glass field lenses offer a cost-effective solution with moderate optical performance, but they have relatively low transmission at 355 nm, making them unsuitable for UV lasers. Quartz composite field lenses provide a balanced option in performance and cost, supporting infrared MOPA lasers up to 200W. Pure fused silica field lenses deliver the highest transmission and the lowest thermal expansion, offering excellent resistance to thermal shock. This makes them ideal for UV lasers and high-power laser applications.

Comparison of F-theta lens substrate materials by optical and thermal properties.

2.3 Determine the Right Focal Length for Your F-Theta Lens

Once the wavelength and substrate are correctly matched, the next step is selecting the appropriate focal length for your F-theta lens. Focal length determines the marking field size, spot diameter, and working distance between the field lens and the material surface.

In general, shorter focal lengths produce smaller spot sizes and higher resolution, which makes them ideal for fine, detailed marking. Longer focal lengths allow for larger marking areas but create a slightly larger beam spot and lower energy density, making them more suitable for high-speed or large-format marking tasks.

If you want to understand the general relationship between laser focusing and beam delivery, see How Laser Beam Focus and Delivery Work.

F-theta lens specifications for fiber and MOPA lasers.

F-theta lens specifications for UV lasers.

2.4 Choose by Application

After matching the wavelength, substrate material, and focal length, the next step is choosing the F-theta lens based on your actual marking application.

Different marking tasks require different combinations of marking field size, spot diameter, depth of focus, and energy density. A shorter focal length usually provides a smaller spot size and higher energy density, making it better for fine details. A longer focal length provides a larger marking field and greater depth of focus, making it more suitable for large parts or slightly uneven surfaces.

Below, we use the Thunder Laser Aurora series as an example to explain how to choose the right field lens for different marking needs. If you are still comparing laser marker types, see How to Choose the Best Fiber Laser Machine and Fiber Lasers vs. UV Lasers.

2.4.1 Fine and High-Precision Marking

For tasks that require extremely fine details, such as QR codes on small metal parts, serial numbers, jewelry engraving, electronic components, or medical device labels, a shorter focal length lens such as the F-160 field lens is usually the best choice.

The F-160 field lens offers a relatively small marking area, typically around 110 × 110 mm, but it produces a smaller laser spot and higher energy density. This helps create sharper lines, clearer edges, and more precise markings.

Best for

• Small QR codes.
• Fine text.
• Serial numbers.
• Small metal parts.
• Jewelry engraving.
• High-resolution logos.
• Precision industrial labels.

Advantages

• Excellent for fine details and small features.
• Smaller spot size for sharper marking results.
• Higher energy density for stronger marking performance.
• Better accuracy for small text, codes, and detailed patterns.

Limitations

• Smaller marking area.
• Shallower depth of focus.
• Less suitable for large workpieces.
• Requires more careful focus control, especially for high-power applications.

2.4.2 Medium-Scale General Marking

For general laser marking applications, such as marking serial numbers on PCBs, logos on tools, product labels, nameplates, appliance panels, or medium-sized metal and plastic parts, the F-210 field lens is a balanced option.

The F-210 field lens usually provides a marking field of around 150 × 150 mm. It offers a good balance between marking area, spot size, and working distance. This makes it suitable for users who need flexibility across different materials and product sizes.

Best for

• Product labels.
• Medium-sized logos.
• Nameplates.
• PCBs.
• Tool marking.
• Plastic part marking.
• General metal marking.
• Small-batch production.

Advantages

• Good balance between precision and working area.
• Suitable for many common laser marking jobs.
• More flexible than shorter focal length lenses.
• Easier to use for mixed applications.

Limitations

• Spot size is slightly larger than F-160.
• Very fine details may be less sharp near the edge of the marking field.
• Not as efficient as F-290 for large-area marking.

2.4.3 Large-Area and Deep Marking

For larger workpieces or applications that require a wider marking field, such as automotive VIN numbers, large logos, metal panels, industrial nameplates, or batch marking on bigger parts, a longer focal length lens such as the F-290 field lens is more suitable.

The F-290 field lens offers a larger marking field, usually around 200 × 200 mm. It also provides a deeper depth of focus, giving the system better tolerance for slightly uneven or mildly curved surfaces. However, because the laser spot is larger, the energy density is lower than with shorter focal length lenses.

Best for

• Large logos.
• Automotive VIN marking.
• Large metal panels.
• Industrial nameplates.
• Large product labels.
• Bigger workpieces.
• Slightly uneven surfaces.

Advantages

• Larger marking field.
• Better coverage for big parts.
• Greater depth of focus.
• More tolerant of slight height variation on the material surface.

Limitations

• Larger spot size.
• Lower energy density.
• Lower resolution for very fine details.
• May require parameter adjustment for deeper or darker marking.

In general, shorter focal length lenses such as F-160 generate smaller laser spots with higher energy density, making them ideal for precision marking and detailed engraving. However, they have a smaller marking area and shallower depth of focus.

By contrast, longer focal length lenses such as F-290 provide a larger marking field and greater depth of focus, making them more suitable for larger parts and slightly uneven surfaces. However, they produce a larger spot size and lower energy density, so they are not the best choice for very fine details.

F-theta lens focal length comparison: F-160 vs. F-210 vs. F-290.

Tips: F-theta lenses are typically identified by standardized model codes that combine key specifications. A code such as F-160(110)-1064 means:

• F-160: the focal length is 160 mm.
• (110): the corresponding marking field is approximately 110 × 110 mm.
• 1064: the field lens is coated for a 1064 nm laser wavelength, commonly used with fiber or MOPA laser marking systems.

3. How to Clean and Replace Your F-Theta Lens

Proper maintenance of your F-theta lens is essential for consistent laser marking quality and long-term optical performance. Over time, dust, residue, or wear can degrade field lens performance, leading to marking inconsistencies or reduced efficiency.

Using the Thunder Laser Aurora series as an example, this section explains recommended procedures for safely cleaning and replacing your F-theta lens. Following these best practices helps the machine operate at peak performance and reduces the risk of costly downtime.

3.1 What You Need

• Lens cleaning swabs, such as high-quality lint-free swabs.
• Lint-free cloth for gentle wiping without leaving fibers.
• Clean, soft, lint-free gloves.
• Anhydrous ethanol, recommended for quick evaporation and optical coating safety.
• Lens cleaning solution, such as a generic eyeglass cleaner if ethanol is unavailable.
• New F-theta lens, if replacing.
• Corresponding autofocus and calibration files, if changing focal length.

Important: Avoid using isopropyl alcohol. Based on user feedback, IPA may damage the anti-reflective coating of the lens over time.

3.2 Step-by-Step Cleaning and Replacement Guide

Step 1: Power Off and Cool Down

Turn off the laser marking machine and allow the field lens area to cool down completely before touching it.

Step 2: Put On Clean Gloves

Before handling the field lens, wear clean, soft, lint-free gloves to prevent contamination from skin oils or dust.

Step 3: Rotate and Remove the F-Theta Lens

Hold the scanner head steady and rotate the F-theta lens counterclockwise to unscrew it from the galvo mount. Handle only the edge of the field lens barrel and avoid touching the glass. Place the field lens on a clean, dust-free surface with the optical face upward.

Step 4: Inspect the Field Lens Surface

Under clean lighting, check for dust, smudges, or coating damage. If the field lens appears dirty, clean it. If it is scratched, fogged, or being changed to another focal length, replace it.

Step 5: Clean the F-Theta Lens

Moisten a lint-free swab or optical cloth with a small amount of anhydrous ethanol. Using gentle pressure, wipe the F-theta lens in a single circular motion from the center outward. Do not rub back and forth or apply liquid directly onto the glass. Allow the F-theta lens to air dry naturally in a clean environment.

Step 6: Reinstall the Cleaned or New F-Theta Lens

Carefully align the F-theta lens with the galvo mount and rotate it clockwise to screw it back into place. Avoid touching the glass and do not overtighten. The F-theta lens should be snug but not forced.

Step 7: Load Autofocus and Calibration Files, If Replaced

If you have changed to a different focal length lens, such as from F-160 to F-290, load the appropriate configuration files into the system:

• Autofocus parameter file.
• Lens correction or calibration file.

These files ensure accurate focal positioning and correct field distortion, especially on large marking areas.

Step 8: Perform a Test Mark

Once the F-theta lens is installed and calibrated, run a test mark to verify beam focus, spot clarity, and positional accuracy. If needed, make fine adjustments through the software to ensure optimal marking quality.

By following the correct steps, including powering down, using clean tools, handling optics carefully, and loading the correct calibration files, you can avoid costly marking defects and extend the life of your equipment.

Learn more: How to Replace Field Lens and Set Focus Length for AURORA Series.

4. Conclusion

F-theta lenses are key to precise and consistent laser marking. Choosing the right F-theta lens and maintaining it properly through correct cleaning and replacement helps ensure better marking results and protects your laser system.
