In laser engraving and cutting, the work table is the surface that supports the material during processing. It may look like a simple machine component, but it directly affects material stability, airflow, backside burn marks, cutting cleanliness, and engraving consistency.

Choosing the wrong work table can lead to problems such as smoke stains, uneven support, material warping, poor flatness, and visible burn marks on the back of the material. Different work table designs, such as honeycomb, blade, pin, and vacuum tables, are used to solve different processing challenges.

This guide explains how each laser work table works, which materials it is best suited for, and how to choose the right table for cleaner, more stable engraving and cutting results.

1. Why the Laser Work Table Matters

A laser work table may look like a simple support surface, but it has a direct impact on the final engraving and cutting result. The way the material is supported affects airflow, heat buildup, smoke removal, backside burn marks, and even engraving consistency.

This becomes especially noticeable during laser cutting. If the material is placed directly on a flat board or another solid backing surface, smoke, heat, and debris have nowhere to go once the laser cuts through the material. They can become trapped underneath the workpiece, leaving stains or burn marks on the back side. In some cases, the backing surface can also reflect heat or laser energy back toward the material, making the marks more obvious around the cut lines.

A proper laser work table helps create space beneath the material. That space allows smoke, hot gases, and cutting residue to move away from the processing area instead of collecting under the workpiece. With better airflow and less direct contact, the material is more likely to come out cleaner, especially on the bottom side.

The work table also affects how stable the material stays during processing. Thin sheets, lightweight materials, soft materials, or slightly warped pieces can shift, lift, or curl if they are not supported properly. Even a small movement can affect cutting accuracy or cause uneven engraving, especially when the focus distance changes across the material surface.

That is why different laser work tables are designed for different purposes. Choosing the right work table can make the difference between a clean, stable result and one affected by smoke stains, burn marks, material movement, or uneven focus.

2. Main Types of Work Tables for Laser Engraving and Cutting

Different laser work tables are designed for different materials, thicknesses, and processing needs. The main differences between them are material support, contact area, airflow, hold-down ability, cleaning difficulty, and backside burn mark control.

The four common types of laser work tables are:

• Honeycomb work table.
• Blade work table.
• Pin work table.
• Vacuum work table.

Each type has its own strengths and limitations. Understanding how they work can help you choose the right table for your material and application.

2.1 Honeycomb Work Table

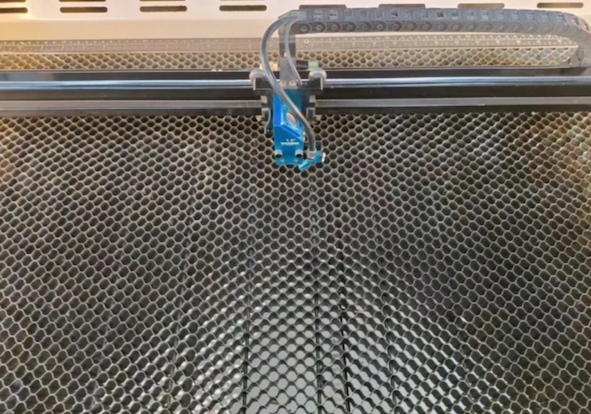

A honeycomb work table, also known as a honeycomb laser bed or honeycomb table, is one of the most common work tables used in laser engraving and cutting machines. It is usually made of metal and consists of many small grid-like cells that form a structure similar to a honeycomb.

These cells may be hexagonal, square, or other grid shapes. The open-cell structure allows air, smoke, heat, and cutting debris to pass through the table instead of staying trapped under the material.

The main advantage of a honeycomb work table is that it provides broad and even support for the material. This makes it suitable for thin, lightweight, small, or flexible materials that need more continuous support during laser processing.

A honeycomb table is commonly used for materials such as paper, cardboard, leather, fabric, thin plywood, MDF, and thin acrylic. It can help keep these materials relatively flat and stable during engraving or cutting.

When used together with magnets, pins, or masking paper, a honeycomb work table can also help hold slightly warped materials more securely. This is useful when processing thin sheets that may lift or move during cutting.

However, honeycomb work tables also have some limitations. Because of the many small cells, dust, resin, oil, smoke residue, and cutting debris can easily build up inside the grid. If the table is not cleaned regularly, airflow may be reduced and residue may transfer to future materials.

For thick sheet cutting, especially when a clean backside is required, a honeycomb table may not always be the best option. The material has more contact points with the table, which can sometimes lead to more backside marks compared with a blade or pin work table.

Takeaway: Honeycomb tables are best for thin, lightweight, small, or flexible materials such as paper, cardboard, leather, fabric, thin plywood, MDF, and thin acrylic. Their main advantages are broad support, good airflow through the table, stable material support, and wide material compatibility. Their limitations are harder cleaning, easier residue buildup, and possible backside marks on some cutting jobs.

2.2 Vacuum Work Table

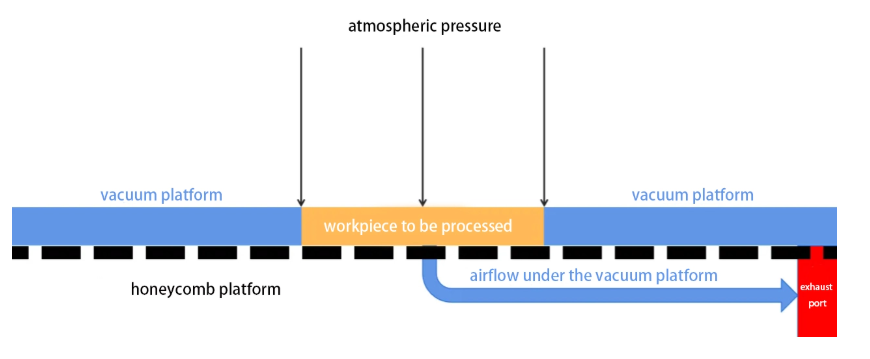

In many laser machines, a vacuum work table can be understood as a variation of a honeycomb or perforated work table with an added vacuum hold-down function. It does not create a true vacuum environment. Instead, it creates airflow and pressure differences that pull the material down and keep it stable during laser engraving or cutting.

The main advantage of a vacuum work table is material stability. It helps prevent thin, lightweight, flexible, or easily wrinkled materials from shifting, lifting, curling, or wrinkling during laser processing.

This is especially important for engraving, because uneven material height can affect the focus distance between the laser head and the material surface. If the material is not flat, engraving depth, color, and detail may become inconsistent.

Vacuum work tables are commonly used for materials such as paper, fabric, films, soft leather, faux leather, and other thin flexible sheets. They are particularly useful when high precision, flatness, and stable positioning are required.

However, vacuum work tables require more setup than standard work tables. The surrounding gaps must be sealed properly so suction is concentrated in the working area. If there are air leaks, or if the material does not fully cover the suction area, the hold-down effect will be reduced.

A vacuum work table is also not always necessary for rigid materials. For large, thick, and flat sheets, a blade work table may be more practical and easier to maintain.

Takeaway: Vacuum work tables are best for thin, lightweight, flexible, or easily wrinkled materials such as paper, fabric, films, soft leather, faux leather, and thin flexible sheets. Their main advantages are flat material holding, reduced shifting, improved engraving consistency, and better support for high-precision processing. Their limitations are sealing requirements, setup time, suitable airflow or suction needs, and reduced value for rigid sheets.

2.3 Blade Work Table

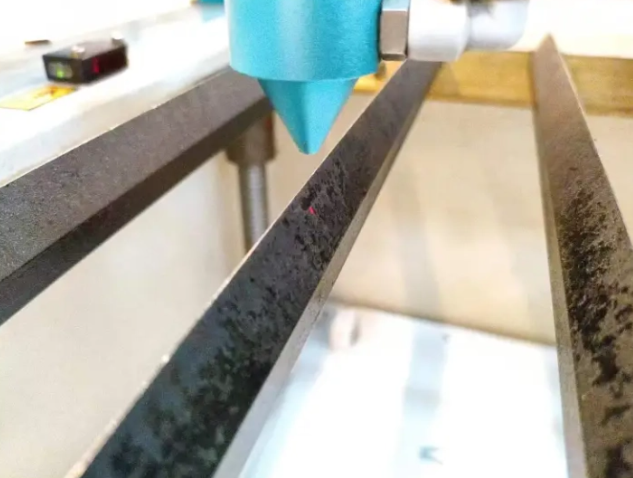

A blade work table is made of parallel metal blades or slats mounted on a frame. Because this type of table is mainly designed for cutting applications, it is often also called a cutting table.

Compared with a honeycomb work table, a blade work table has a much smaller contact area with the underside of the material. This reduced contact area helps smoke, heat, and cutting residue escape more easily during laser cutting.

The main advantage of a blade work table is that it helps reduce backside burn marks, especially when cutting large, thick, and flat sheet materials. Because the material rests on narrow blades instead of a dense grid, there is less surface area for reflected heat, smoke residue, or debris to affect the back of the material.

Blade work tables are commonly used for rigid sheet materials such as acrylic sheets, wood boards, MDF boards, and other large flat materials. They are especially useful when cutting thicker materials where backside cleanliness is important.

Another benefit of blade work tables is easy cleaning. Their structure is simpler than a honeycomb table, so dust, residue, and debris are easier to wipe or brush away.

However, blade work tables are not ideal for every material. Small parts may fall through the gaps between the blades after cutting. Thin, soft, flexible, or easily warped materials may not receive enough support, which can lead to sagging, movement, or uneven cutting.

For these reasons, blade work tables are usually better for large and rigid materials rather than small, soft, or flexible ones.

Takeaway: Blade work tables are best for large, thick, flat, and rigid sheet materials such as acrylic sheets, wood boards, MDF boards, and other rigid sheets. Their main advantages are reduced contact area, fewer backside burn marks, better smoke escape, and easier cleaning. Their limitations are poor support for small pieces, soft materials, flexible sheets, or easily warped materials.

2.4 Pin Work Table

A pin work table consists of upward-facing pins or small cylindrical rods arranged on a base. Instead of supporting the entire material surface, it supports the workpiece at multiple small contact points.

This point-support design greatly reduces the contact area between the material and the table. As a result, it can help reduce backside burn marks, smoke stains, heat buildup, and contact marks during laser cutting.

Pin work tables are useful for applications where the underside of the material needs to stay as clean as possible. They are also helpful for raised cutting setups, because the pins lift the material above the lower table surface and allow more airflow underneath.

A pin work table can be used for irregularly shaped workpieces, semi-rigid materials, or jobs where reducing contact marks is more important than providing full-surface support. It can also be placed on top of another laser bed, such as a honeycomb table, to increase the distance between the workpiece and the lower surface.

This raised setup helps reduce back reflection and allows smoke and hot gases to escape more easily. It can be especially useful when cutting materials that are prone to backside marks.

However, a pin work table does not provide as much continuous support as a honeycomb table. Very soft, thin, or flexible materials may sag between the pins if the spacing is too wide. For materials such as fabric, thin films, or soft leather, a vacuum work table may provide better stability.

Pin work tables are also not designed to clamp or secure the material by themselves. They mainly provide support, so additional fixing methods may still be needed if the material is likely to move.

Takeaway: Pin work tables are best for raised cutting, irregular shapes, semi-rigid materials, and reducing backside contact marks. Their main advantages are minimal contact area, improved airflow, fewer backside marks, and easy cleaning. Their limitations are limited support for soft or flexible materials, possible sagging between pins, and the need for additional fixing.

A comparison of the four main laser work table types, including their best use cases, main advantages, and practical limitations.

3. How to Choose the Right Laser Work Table

Choosing the right laser work table depends on several factors, including material type, material thickness, material size, flexibility, flatness, and the processing result you want to achieve. There is no single work table that works best for every laser engraving or cutting job.

In general, you should choose the work table based on the main problem you need to solve. Some materials need broad support, some need fewer contact points, and some need suction to stay flat during processing.

3.1 For Thin and Lightweight Materials

For thin and lightweight materials such as paper, cardboard, thin plywood, leather, fabric, and thin acrylic, a honeycomb work table is usually a good choice.

The honeycomb structure provides broad and even support, which helps prevent small or thin materials from sagging during laser processing. It also allows air, smoke, and cutting debris to pass through the open cells, helping keep the processing area cleaner.

However, if the material is very soft, flexible, or easy to wrinkle, a vacuum work table may provide better results. The suction can hold the material flatter and prevent it from shifting or lifting during engraving or cutting.

Recommended work table: Honeycomb work table for general thin materials; vacuum work table for flexible or easily wrinkled materials.

3.2 For Large, Thick, and Flat Materials

For large, thick, and flat materials such as acrylic sheets, wood boards, MDF boards, and other rigid sheet materials, a blade work table is often more suitable.

A blade work table has less contact area with the underside of the material compared with a honeycomb table. This helps smoke, heat, and debris escape more easily during cutting and reduces the chance of backside burn marks.

Blade work tables are also easier to clean, making them practical for cutting jobs that produce more smoke, dust, or residue.

Recommended work table: Blade work table.

3.3 For Reducing Backside Burn Marks

If your main goal is to reduce backside burn marks, avoid placing the material directly on a flat backing board. A flat backing surface can trap smoke and heat under the material and may increase back reflection.

A blade work table or pin work table is usually a better option because both reduce the contact area between the material and the table. With less contact underneath the workpiece, smoke and heat can escape more easily.

For large and rigid sheets, a blade work table is usually more practical. For smaller workpieces, raised cutting setups, or applications that need minimal underside contact, a pin work table can be useful.

Recommended work table: Blade work table for large rigid sheets; pin work table for raised cutting or minimal contact support.

3.4 For Flexible or Easily Wrinkled Materials

For flexible or easily wrinkled materials such as paper, fabric, films, soft leather, and faux leather, a vacuum work table is usually the best choice.

These materials can shift, lift, curl, or wrinkle during laser processing. This is especially problematic during engraving because uneven material height can affect the focus distance between the laser head and the material surface.

A vacuum work table uses suction to hold the material flat and stable. This helps improve engraving consistency, reduce distortion, and prevent the material from moving during processing.

Recommended work table: Vacuum work table.

3.5 For Small Parts

For small parts, a honeycomb work table is usually safer than a blade work table because it provides more continuous support.

On a blade work table, small pieces may fall through the gaps between the blades after they are cut. A honeycomb table provides more support points and helps prevent small parts from dropping into the lower area of the machine.

However, honeycomb tables should be cleaned regularly because small cut pieces, dust, and residue can accumulate inside the cells.

Recommended work table: Honeycomb work table.

3.6 For Easy Cleaning and Maintenance

If easy cleaning is a priority, blade work tables and pin work tables are usually easier to maintain than honeycomb work tables.

A honeycomb work table has many small cells that can collect dust, resin, smoke residue, oil, and cutting debris. It may require deeper and more frequent cleaning, especially after processing wood, acrylic, leather, rubber, or other materials that produce residue.

Blade and pin work tables have simpler structures, so debris is easier to remove with a cloth, brush, or suitable cleaning tool.

A vacuum work table may also require extra maintenance because sealing materials such as masking paper, kraft paper, or flexible magnetic sheets need to be removed, cleaned, replaced, or reused after processing.

Recommended work table: Blade work table or pin work table for easier cleaning; honeycomb work table if broader support is more important.

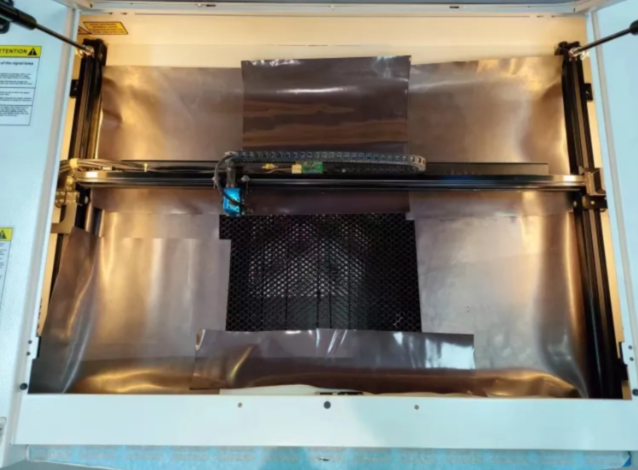

4. How to Set Up a Vacuum Work Table

To set up a vacuum work table, the key is to seal unused airflow paths and leave only the working area exposed. This helps concentrate suction under the material and improves hold-down stability.

You can use masking paper, kraft paper, or flexible magnetic sheets to cover unused areas of the honeycomb work table. The exposed area should match the processing area, while the material itself should be large enough to cover that exposed area.

Step 1: Define the Processing Area

Before sealing the table, confirm the size of the material and the area to be engraved or cut.

For a honeycomb-based vacuum work table, the exposed suction area should be slightly larger than the engraving or cutting area, but smaller than the material sheet. This allows the material to fully cover the opening while keeping suction concentrated under the working area.

Step 2: Cover Unused Honeycomb Areas

Use masking paper, kraft paper, scrap sheets, or flexible magnetic sheets to cover the unused areas of the honeycomb work table.

This step is important because a vacuum work table based on a honeycomb or perforated structure works by drawing air through the open cells or holes. If too many unused cells remain open, air will leak through those areas and reduce the suction under the material.

The goal is to block unnecessary airflow paths so that suction is concentrated in the exposed working area.

Step 3: Leave the Correct Opening Size

Leave an opening only where suction is needed.

The opening should not be too large. If it extends beyond the material edges, air will leak through the uncovered area and reduce the hold-down effect.

The opening should also not be too small. If it does not cover the full processing area, the material may not be held flat where engraving or cutting is taking place.

Step 4: Place and Flatten the Material

Place the material over the exposed opening and make sure it fully covers the suction area.

Flatten the material by hand before processing. This is especially important for soft, flexible, curled, or easily wrinkled materials.

If the material does not fully cover the opening, reduce the opening size or reposition the sealing materials.

Step 5: Close the Machine Cover

For enclosed laser machines, close the machine cover before testing suction or starting the job, following the machine’s normal laser safety requirements.

A closed cover supports safe operation and may help maintain more stable airflow, depending on the machine’s exhaust and vacuum design.

Step 6: Turn On the Airflow or Vacuum Source

Turn on the vacuum source, vacuum adsorption function, or exhaust airflow system before processing.

Without proper airflow, the vacuum work table will not create enough hold-down force to keep the material flat. A proper laser exhaust system can also help remove smoke and fumes from the enclosure during cutting and engraving.

Step 7: Test Suction and Check for Air Leaks

Before firing the laser, check whether the material is being held flat and stable.

If suction is weak, inspect the common leak points:

• Uncovered honeycomb cells.
• Gaps around the table edges.
• Gaps between sealing materials.
• Curled paper or magnetic sheet edges.
• Exposed openings not covered by the material.

Adjust the sealing materials, reduce the exposed opening size, or reposition the material until the hold-down effect is stable.

Learn more: How to use the Vacuum Adsorption Hold-down Function | Thunder Laser Support.

5. Maintenance and Cleaning Tips for Laser Work Tables

Regular maintenance keeps the laser work table stable, clean, and safe to use.

Different work table types require different cleaning methods because their structures collect residue in different ways. Good material preparation also helps reduce table contamination. For more details, see how to store and pre-process materials for better laser cut results.

5.1 Honeycomb Work Table

A honeycomb work table usually requires the most frequent cleaning because its small cells can easily trap dust, resin, smoke residue, oil, and small cut pieces.

If residue builds up inside the honeycomb cells, airflow may become weaker, and dirt may transfer to the back of future materials. This can lead to stains, stronger smoke marks, or less consistent cutting results.

For regular maintenance, remove loose debris after use. A brush, vacuum cleaner, or compressed air can help clear dust and small particles from the cells. For sticky residue or heavy buildup, remove the honeycomb table if possible and clean it more thoroughly with a suitable cleaner.

After cleaning, make sure the table is completely dry before placing it back into the machine.

Key maintenance focus: Keep the honeycomb cells open and clean to maintain airflow and prevent residue transfer.

5.2 Vacuum Work Table

A vacuum work table needs both surface cleaning and sealing-area maintenance.

After each use, remove temporary sealing materials such as masking paper or kraft paper. If flexible magnetic sheets are used, wipe them clean and store them flat so they do not curl.

Check the honeycomb surface, exposed suction area, and surrounding sealed areas for dust, residue, and debris. Any buildup may block airflow or reduce suction strength.

Also inspect the sealing materials and edges for air leaks. Curled paper, dirty magnetic sheets, gaps between sealing materials, or blocked honeycomb cells can weaken the vacuum hold-down effect.

Before the next use, make sure the suction area is clean, the airflow path is clear, and the sealing materials can sit flat against the table surface.

Key maintenance focus: Keep the airflow path clear and make sure sealing materials remain clean, flat, and leak-free.

5.3 Blade Work Table

Most dust, debris, and residue stay on the blade surfaces or fall between the blades. After cutting, wipe the blades with a cloth or use a brush to remove loose debris.

If the blades collect sticky resin or smoke residue, clean them with a suitable cleaner according to the material and machine maintenance guidelines. Also check whether the blades are still straight and properly seated in the frame.

Bent, loose, or heavily contaminated blades may affect material support and cutting stability.

Key maintenance focus: Keep the blade surfaces clean and check that the blades remain straight and secure.

5.4 Pin Work Table

After use, remove dust, small cut pieces, and residue from the base and around the pins. A brush, cloth, or vacuum cleaner can usually handle basic cleaning.

Check the pins regularly to make sure they are not bent, loose, missing, or covered with heavy residue. Since the material rests on small points, damaged or uneven pins may affect material height and support.

If residue builds up on the pin tips, clean them carefully so the workpiece can sit evenly on the table.

Key maintenance focus: Keep the pins clean, upright, and evenly arranged to maintain stable point support.

6. Conclusion

Selecting the right work table and using it correctly are essential steps in achieving high-quality laser processing results. Regular cleaning and maintenance not only extend the table’s service life but also help maintain stable performance over time.

By understanding the strengths and proper applications of each table type, you can significantly improve both the efficiency and quality of your laser engraving and cutting work.
