Laser cutting and engraving produce more than precise results. They also generate smoke, fumes, odors, and particulates that can affect operator health, contaminate the workspace, and damage the machine over time. That is why a reliable laser exhaust system is not optional. It is essential for safe and consistent laser operation.

But which exhaust solution is right for your setup? From fume extractors to ducted ventilation, this guide explains how laser exhaust systems work, what components they include, how to configure them for different workspaces, and how to maintain them for long-term performance.

1. Why You Need a Good Laser Exhaust System

Running a laser machine without proper fume extraction can be risky for both people and equipment. Whether you are cutting wood, acrylic, leather, rubber, or plastics, the laser beam generates intense heat that causes materials to vaporize, ablate, or melt. This process releases a mix of byproducts, including:

If these emissions are not removed efficiently, they can quickly contaminate the workspace and cause several problems:

An effective laser exhaust system addresses these risks by capturing fumes at the source, moving contaminated air away from the processing area, and either filtering it or venting it safely outside. It helps protect operator health, keeps optics cleaner, and supports stable machine performance.

In many commercial, educational, and industrial environments, fume extraction is also part of workplace safety and environmental compliance. Proper ventilation is not only about comfort. It is also about safety, performance, and long-term equipment reliability.

2. Key Components of a Laser Exhaust System

Before choosing a laser exhaust setup, it is important to understand how the system is built. Most systems, whether they vent outdoors or use internal filtration, share several core components. Each part helps capture, contain, move, or filter airborne contaminants generated during laser processing.

2.1 Exhaust Port

The exhaust port is where fumes, smoke, and airborne particles are first collected. It is usually located inside the laser enclosure near the work area, helping capture emissions as soon as they are generated. A well-designed exhaust port prevents contaminants from escaping into the workspace and improves the efficiency of the entire extraction system.

2.2 Exhaust Fan, Blower, or Pump

After fumes are collected, an exhaust fan, blower, or pump creates the negative pressure needed to pull contaminated air out of the laser chamber. Some systems use built-in fans, while others rely on external blowers depending on airflow demand, duct length, filtration resistance, and noise requirements.

This component is responsible for maintaining consistent airflow through the ducting and filters. If the fan is too weak or the airflow path is restricted, fumes may remain inside the machine and affect both processing quality and operator safety.

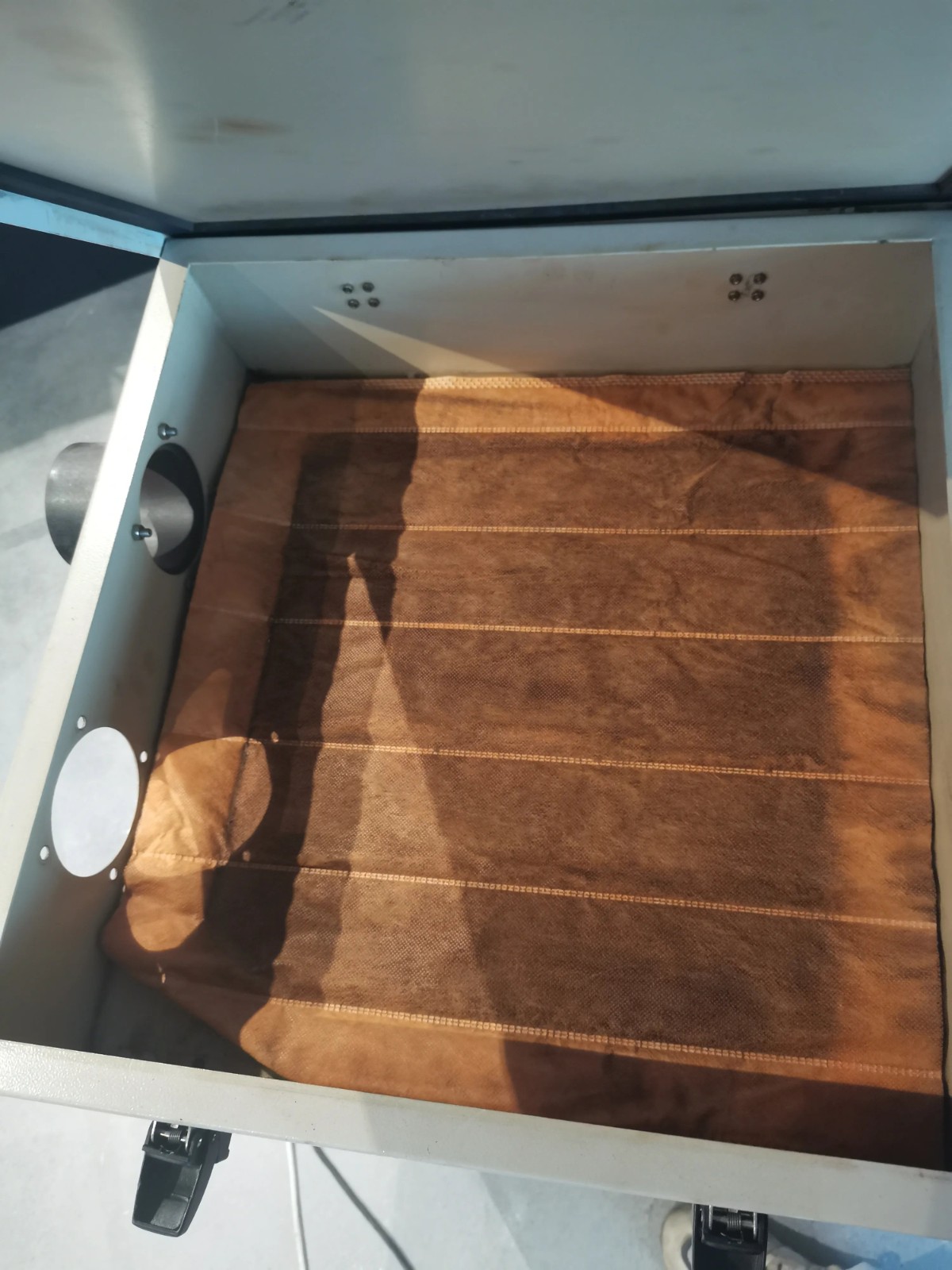

2.3 Filtration Module

The filtration module is the core of many fume extraction systems. It usually includes multiple filter stages designed to capture different types of pollutants. A typical setup may include a pre-filter for larger dust and debris, a HEPA filter for fine particles and smoke, and an activated carbon filter for odors and chemical fumes.

This combination helps reduce both visible smoke and invisible airborne compounds before air is recirculated or discharged. The exact filter configuration should be selected based on the materials being processed and the workspace requirements.

2.4 Exhaust Ducting or Hose

After air is pulled from the laser chamber, it is routed through exhaust ducting, such as flexible hoses or rigid pipes. The ducting guides air to an external vent, fume extractor, or centralized air treatment system.

Duct material, diameter, path length, and sealing quality all affect airflow efficiency and noise levels. A short, straight, well-sealed duct path usually provides better exhaust performance than a long, bent, or compressed hose.

3. How a Laser Exhaust System Works

A laser exhaust system often works together with the air assist system. Together, they manage airflow during laser processing, helping improve cutting quality, keep lenses cleaner, and protect both the machine and the operator.

When the laser starts processing, the air assist system blows a focused stream of air onto the material surface through a nozzle near the laser head. This airflow helps clear melted debris and dust from the cut or engraving area, protects the lens, cools the processing point, and pushes smoke and gases toward the exhaust ports.

At the same time, the exhaust system creates negative pressure near the cutting or engraving area. It pulls smoke, dust, and fumes out of the laser chamber. Depending on the setup, the contaminated air may pass through filters such as activated carbon and HEPA filters before being discharged or recirculated.

This “push and pull” airflow balance is important. Air assist pushes debris and smoke away from the work point, while the exhaust system captures and removes it. When both systems are properly configured, the work area stays cleaner, the optics last longer, and the laser produces more consistent results.

4. How to Configure Your Laser Exhaust System

The right laser exhaust setup depends on where and how you use your machine. A hobby studio, production workshop, and mobile classroom setup may require very different exhaust solutions. Below are three common scenarios.

4.1 Single Laser Machine with Moderate Use

Recommended setup: A standard laser exhaust system with an inline fan, flexible or rigid ducting, an optional carbon or HEPA filter box, and a backdraft damper.

If you operate a single CO2 laser machine and your workspace allows direct ventilation outdoors, ducted exhaust is often an efficient and cost-effective solution. By connecting the machine to a duct that vents outside, you can continuously remove smoke and fumes with relatively simple maintenance.

To improve safety and reduce odors, especially in shared or enclosed spaces, you may add a basic filter box with replaceable carbon or HEPA filters before the exhaust outlet. A backdraft damper or louvered vent cap can also help prevent outside air, dust, or moisture from flowing back into the duct.

4.1.1 Pro Tips

4.2 Multiple Laser Machines in a Production Workshop

Recommended setup: Central ducting system, high-pressure blower, and industrial fume purification unit.

When multiple laser machines run at the same time in a commercial, school, or industrial workshop, fumes can build up quickly. A centralized air handling system helps maintain air quality, reduce lingering smoke, and support workplace safety.

This setup usually connects multiple machines to a shared duct system that feeds into a powerful blower. The air then passes through a centralized purification unit, often with multi-stage filters such as HEPA and activated carbon, before safe discharge.

Although this configuration costs more than a simple single-machine setup, it supports stronger fume extraction, reduces filter replacement frequency, and can better support environmental compliance in production environments.

This setup is especially suitable for:

4.3 Mobile or Temporary Laser Setups

Recommended setup: Built-in air filter, quiet fan, and mobile-friendly cabinet with wheels.

When using a laser machine in temporary environments such as maker fairs, classrooms, mobile demo stations, or exhibitions, you may not be able to rely on external ducting. These spaces may restrict ventilation changes or may not have suitable windows or wall outlets for exhaust hoses.

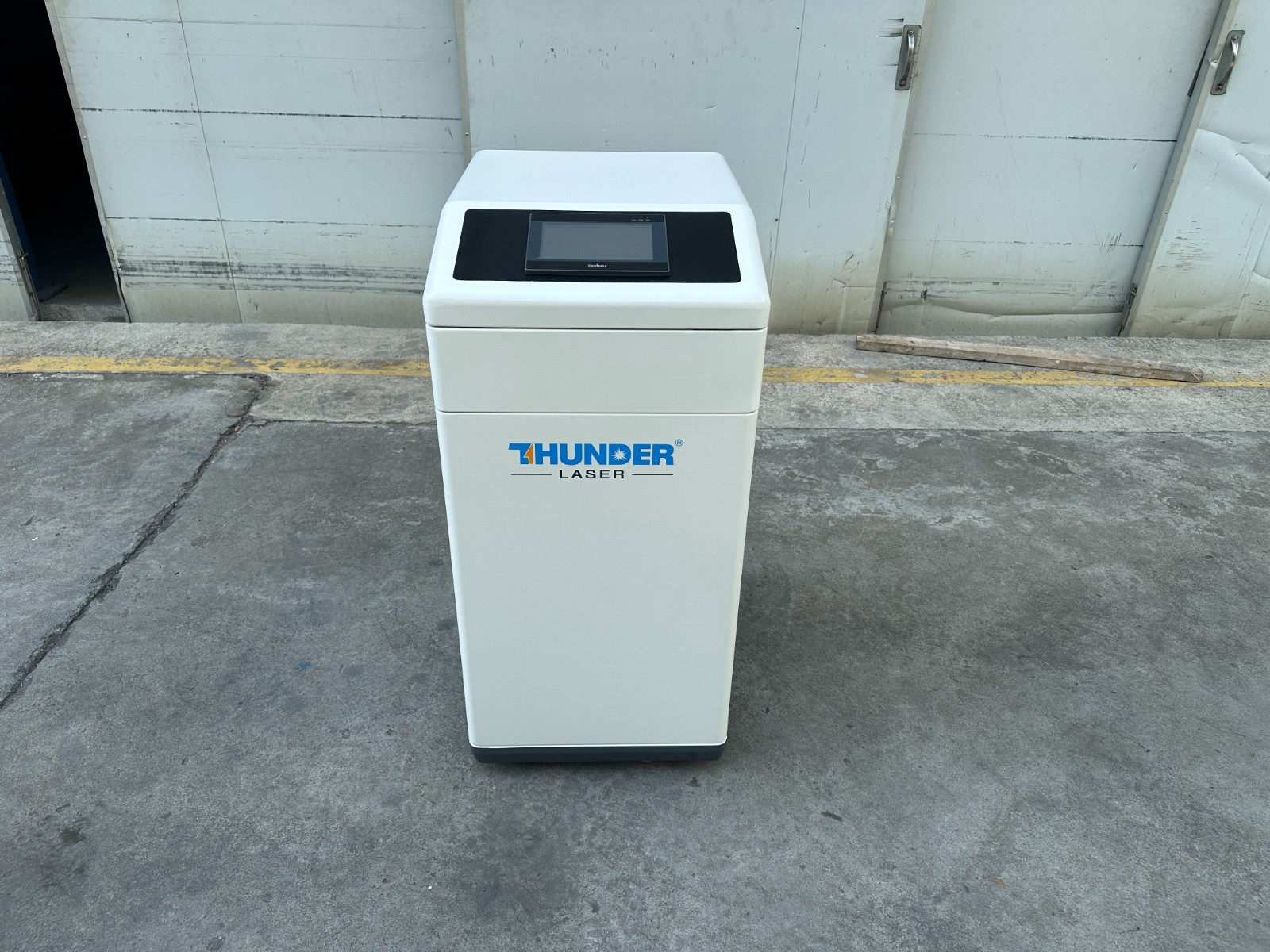

In these situations, a self-contained filtration system is usually more practical. It may be built directly into the machine or placed in a matching cabinet underneath the machine. A suitable mobile setup should include:

While mobile filtration systems are usually less powerful than centralized systems, they can be sufficient for short-term, light-load operation when venue modification is not possible.

This setup is especially suitable for:

5. Laser Exhaust System Maintenance Tips

Proper maintenance helps keep your laser exhaust system efficient, safe, and long-lasting. Follow these best practices to maintain stable airflow and reduce contamination risks.

6. Conclusion

A well-chosen laser exhaust system is essential for safe, clean, and efficient laser operation. Whether you run a single machine, a school lab, a mobile setup, or a full production workshop, the right exhaust configuration protects your equipment, improves air quality, and supports consistent cutting and engraving results.

The best solution depends on your machine, materials, workspace, ventilation options, and production volume. By choosing the right setup and maintaining it properly, you can create a healthier workspace and keep your laser machine performing at its best.
