Laser Cutting - Acrylic Display Stand

Introduction

Looking for a simple yet elegant way to organize your desk or showcase your collectibles?
This laser-cut acrylic display stand is a perfect weekend project that combines creativity with practicality. With a butterfly-inspired base and a sleek transparent finish, it’s both decorative and functional. Whether you’re displaying jewelry, small models, or personal trinkets, this DIY stand adds a touch of style to any space.

Machine Used

Thunder Bolt 30W
See more details about this machine→

Material Needed

5mm Acrylic

Settings

Laser Cutting

Speed:7mm/s
Max Power:100%
Min Power:10%
Frequency:20kHz
Passes:1

Before your work begins

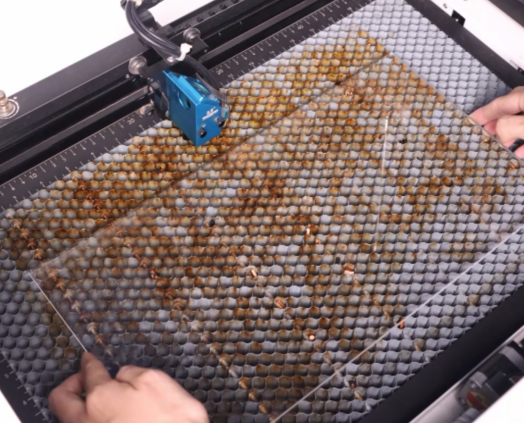

Step 1: Place the Acrylic Sheet on the Work Table

Start by peeling off the protective film from the top surface of the acrylic sheet—the side that faces the laser. This prevents burn marks or smoke stains from forming on the visible surface during cutting. You can leave the bottom film on to protect the underside while it rests on the workbed. Once ready, place the acrylic flat on the laser cutter’s bed and secure it with pins or magnets.

Tips:

There are three common types of pins: T-shaped, L-shaped, and F-shaped. A special use for F-shaped pins is clamping up the plywood to prevent burn marks. When using pins or magnets, pay attention to their height. If they’re too tall, the machine’s sensor or laser head could collide with them and cause damage.

3 common types of pins

F-shaped pin usage

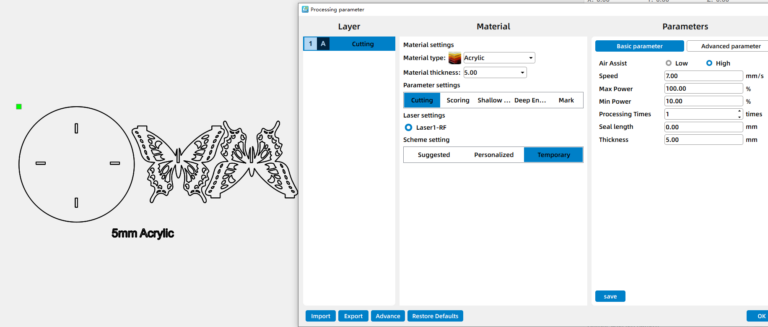

Step 2: Import the File and Check the Settings

Open your preferred laser software (I use LaserMaker) and import the design file. Adjust the size and layout as needed, making sure the designs are evenly spaced to make the most of your acrylic sheet.
For the laser cutting layers, pay extra attention to the minimum power setting. If the min power is too low, it will cause the cutting corners will not cut through; if the min power is too high, the laser cutting will be bad at the corners.

Step 3: Focus Your Laser Machine

Accurate focusing is critical for achieving smooth, clean cuts on acrylic. The Thunder Bolt offers two focusing methods:
·Auto Focus: With one click, the laser head automatically adjusts to the optimal focal distance. This is fast and convenient for flat materials like acrylic sheets.
·Manual Focus: For more control or when working with uneven materials, use the focus stick. Lower or raise the laser head until the focus stick stands perfectly vertical against the acrylic surface—this indicates the correct distance.
Tip: If your material is slightly warped or not perfectly flat, manual focus is recommended for more precise results.

Auto focus

Manual focus

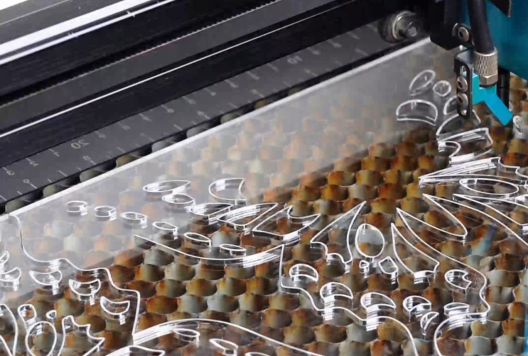

Step 4: Frame the Design and Start Laser Cutting

Before starting the job, run the frame function(also called border) in your software. The laser head will trace the outline of the design with a visible guide light. This helps confirm that the design fits within your acrylic sheet and avoids wasting material. Once everything is adjusted, simply press ‘Start’ to begin laser cutting the acrylic with the Thunder Bolt.

Step 5: Monitor the Laser Cutting Process

Monitor the job as it runs—watch for excessive smoke, movement of the acrylic sheet, or any warning alarms. Never leave the laser unattended while it’s operating.
While observing, remember that the laser beam is extremely powerful. Even with the protective lid closed, avoid staring directly at the marking spot for too long. A quick glance to check progress is fine, but prolonged gazing should be avoided for safety reasons.

Step 6: Assemble the Display Stand

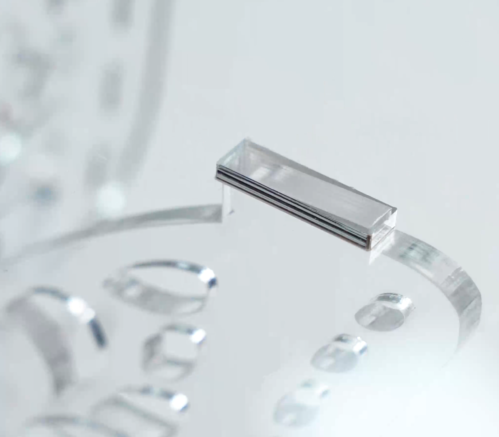

Once all parts are cut, remove them carefully from the laser bed. If the acrylic still has protective film, peel it off for a crystal-clear finish. Align the tabs and slots, then snap them together to form your butterfly-shaped display stand—no glue needed!

Step 7: Complete the Task

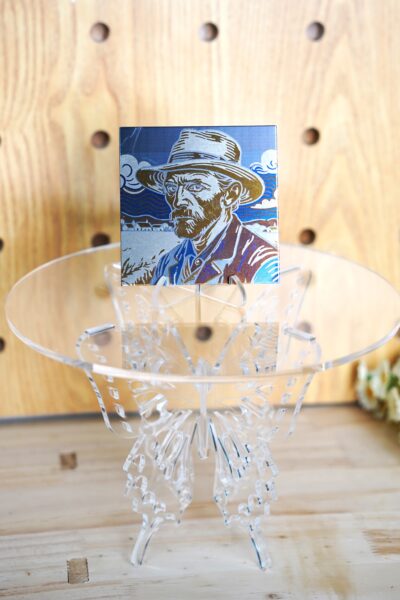

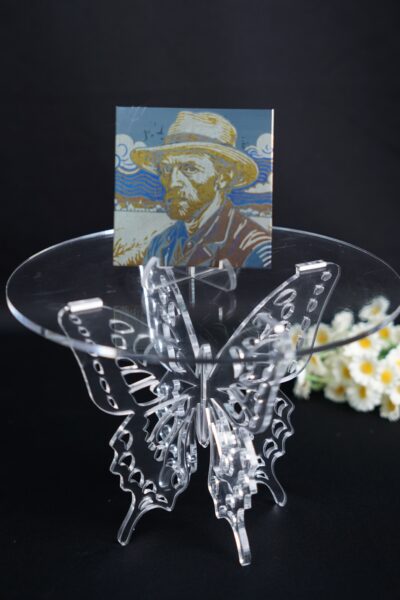

Your acrylic display stand is ready to use. Place it on your desk or shelf and let it elegantly showcase your favorite items.

Come and Try!

Why settle for ordinary when you can create something truly yours?
Fire up your laser cutter, pick your favorite acrylic color, and bring this butterfly stand to life. Whether you’re crafting for your studio, your shop, or simply your workspace—this project is a beautiful way to add personality and charm.
