Introduction

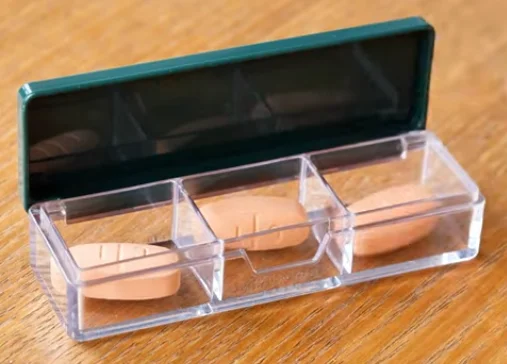

Let’s make daily routines easier with laser marking PET pill box that keeps things clear and organized! With clean and precise laser marking, you can add “Morning,” “Noon,” and “Night” labels that won’t fade over time—making it easy to stay on schedule, even during the busiest days.
Ready to bring clarity and care to someone’s day? Personalize a PET pill box with laser marking and turn routine into reassurance!
Machine Used
Aurora 8
Material Needed
Pet Pill Box
Settings
- Laser Marking
- Speed: 1000mm/s
- Q-Pulse Width: 200ns
- Frequency: 50kHz
- Line interval: 0.05
Check out!
- The machine is connected and operating normally, and the lens cover has been removed.

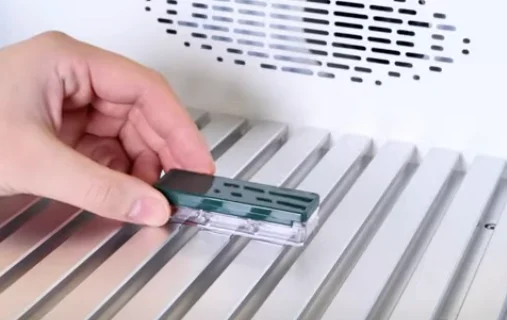

Step 1: Place the PET pill box
Put the PET pill box on the laser bed. Since it is flat, the PET pill box will be well suited for laser marking.
Step 2: Import laser marking file and check out

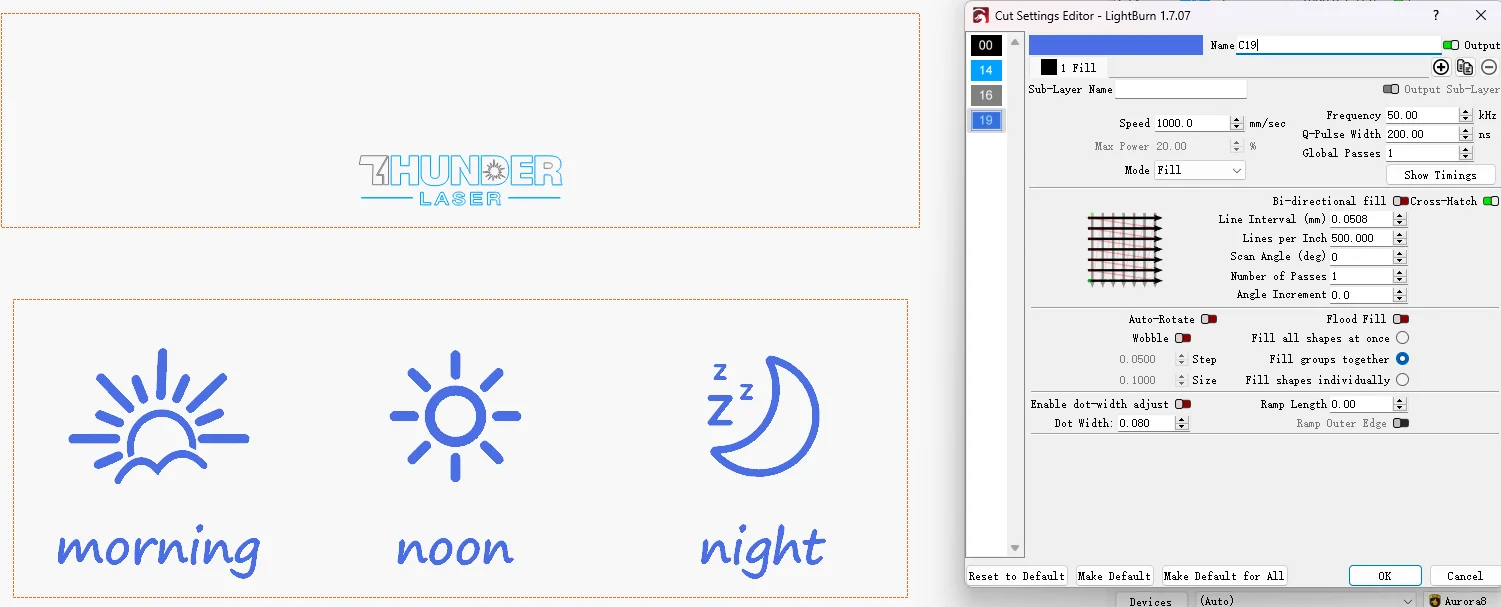

Load your design into LightBurn software, adjusting its size and position to fit you PET pill box. Then make sure the laser marking parameters are set correctly.
Step 3: Don't miss the focus
Missing the focus is one of the biggest reasons for laser marking failure. So don’t forget to click the AF button for auto focus. Of course, manual focus is also effective.
When two red dots are displayed on the PET pill box, it is out of focus. When the two light dots overlap each other, it means in focus.
Auto focus
Manual focus
Step 4: Ready to start laser marking
Press the frame button and check if the visual red light indicate the right area to be marked. The frame should be located in the middle of thePET pill box. If not, move the pattern positions until they align.
After checking, close the laser door and begin Aurora 8’s operation.
Step 5: Monitor the PET pill box marking process
Stay near the machine throughout operation to monitor for any unusual sounds or alarms. This vigilance ensures safety during laser marking, as the energy is potent. Avoid looking directly at the laser beam, even with protective measures in place.

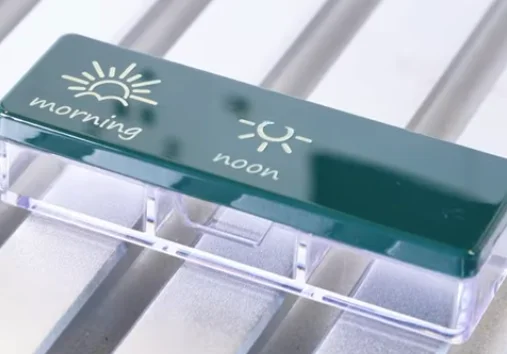

Step 6: Complete the laser marking
Once laser marking is complete, carefully open the door and get your personalized PET pill box. Laser marking does not produce toxic substances, and you can use it after a simple cleaning!
Come and Try!

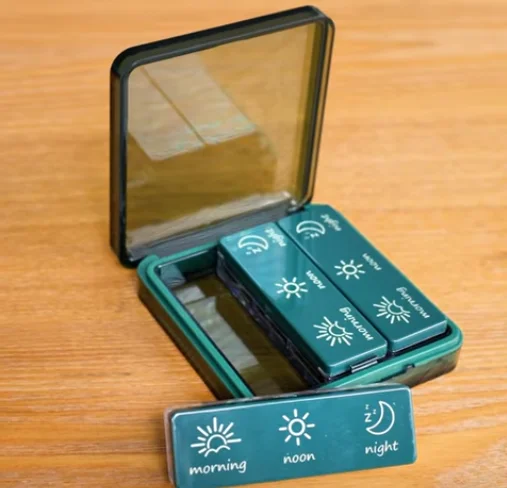

Lightweight, durable, and travel-friendly, these laser marking PET pill boxes are perfect for daily use at home or on the go. Whether you’re creating thoughtful wellness gifts, offering helpful tools for seniors or caregivers, or adding functional items to your product line, laser marking turns a simple container into a dependable companion.
