Fiber Laser Cutting Machine for Metal What Materials Can It Cut?

Introduction

Fiber laser cutting machines are primarily designed for metal processing, making them a popular choice for cutting carbon steel, stainless steel, aluminum, brass, copper, galvanized steel, titanium, and a wide range of metal alloys. However, not every metal responds to a fiber laser in the same way. Material properties such as reflectivity, thermal conductivity, alloy composition, coatings, and surface condition can all influence how suitable a metal is for laser cutting.

In this guide, we’ll look at the most common metals that can be cut with a fiber laser cutting machine, explain which materials are particularly well suited to the process, and highlight the material characteristics you should consider when evaluating fiber laser cutting compatibility.

1. What Metals Can a Fiber Laser Cutting Machine Cut?

A fiber laser cutting machine can process a wide range of ferrous and non-ferrous metals. The most common materials include mild steel, carbon steel, stainless steel, aluminum, brass, copper, galvanized steel, titanium, and various metal alloys.

For most sheet metal applications, mild steel, carbon steel, stainless steel, and aluminum are among the most common materials processed with fiber laser cutting machines. Brass and copper are also widely cut with modern systems, but their higher reflectivity makes machine configuration more important.

Specialty metals and alloys should be evaluated more carefully. Two materials sold under the same general metal category can behave differently if their alloy composition, coating, surface finish, or material condition is different. For unfamiliar or production-critical materials, a sample cutting test is the most reliable way to confirm compatibility.

The table below provides a quick overview of common metals and their general suitability for fiber laser cutting.

General fiber laser cutting suitability and key considerations for common metals.

2. Common Metals for Fiber Laser Cutting: Properties, Grades & Applications

Fiber laser cutting machines can process a broad range of metals, but the exact alloy and grade can influence how the material behaves during cutting. Below are some of the most common metals used in fiber laser cutting, along with representative grades, material characteristics, advantages, and applications.

2.1 Mild Steel and Carbon Steel

Common grades: A36, AISI 1018, and other low-carbon sheet steels.

Typical composition: AISI 1018 contains approximately 0.15–0.20% carbon, with iron making up most of the balance.

Key properties:

• Relatively low carbon content
• Easy to fabricate, form, and weld
• Widely available in sheet and plate
• Generally well suited to fiber laser cutting

Fiber laser cutting advantages:

• One of the most established materials for laser cutting
• Suitable for both simple profiles and complex geometries
• Good choice for repeatable sheet-metal production

Typical applications:

• Machine components
• Brackets and frames
• Electrical cabinets
• Automotive parts
• Structural components
• General sheet-metal fabrication

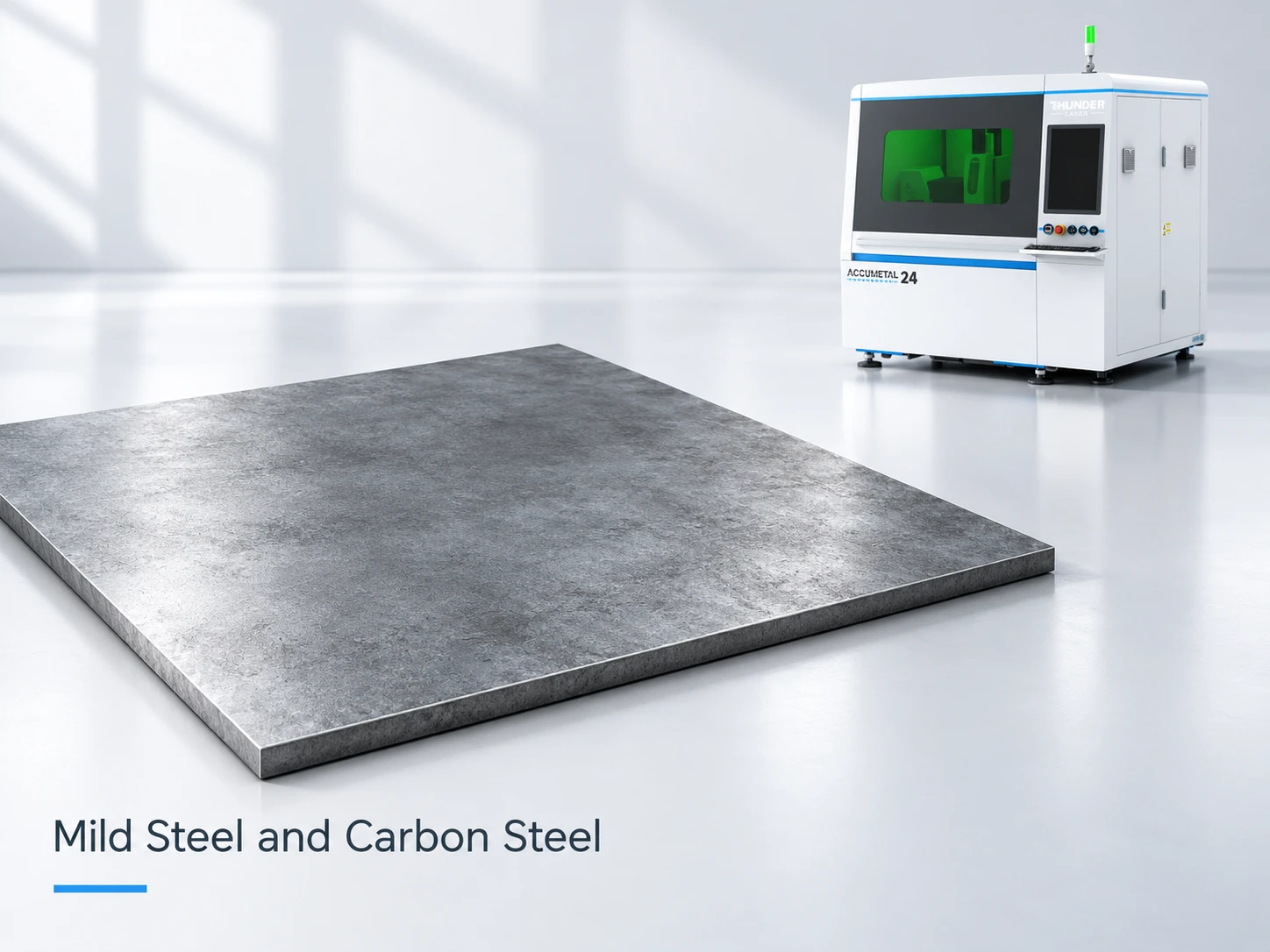

Mild steel and carbon steel samples processed with a fiber laser cutting machine.

2.2 Stainless Steel

Common grades: 304, 304L, 316, and 316L.

Typical composition:

• 304: approximately 18–20% chromium and 8–10.5% nickel
• 316: approximately 16–18% chromium, 10–14% nickel, and 2–3% molybdenum

Key properties:

• Excellent corrosion resistance
• Strong, durable, and visually clean
• 316 provides greater corrosion resistance in more demanding environments
• Available in numerous finishes and sheet grades

Fiber laser cutting advantages:

• Excellent compatibility with precision laser cutting
• Suitable for intricate contours, slots, holes, and detailed parts
• Capable of producing clean edges with the appropriate process
• Well suited to both functional and visible components

Typical applications:

• Food-processing equipment
• Kitchen equipment
• Medical components
• Electrical enclosures
• Architectural metalwork
• Marine and chemical-processing components

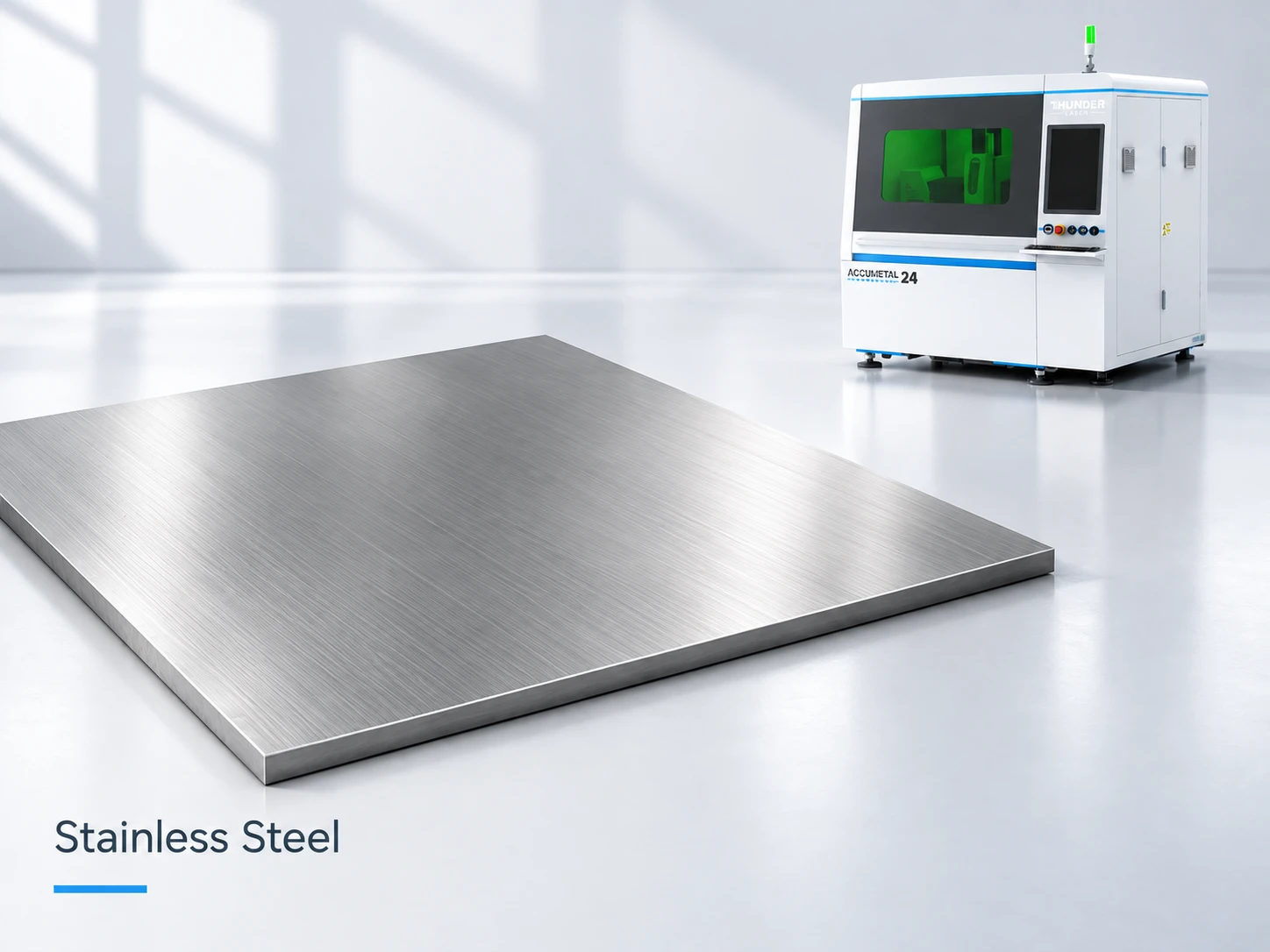

Stainless steel samples processed with a fiber laser cutting machine.

2.3 Aluminum

Common grades: 5052, 6061, and other sheet aluminum alloys.

Typical composition:

• 5052: approximately 2.2–2.8% magnesium
• 6061: approximately 0.8–1.2% magnesium and 0.4–0.8% silicon

Key properties:

• Lightweight
• Corrosion resistant
• High thermal conductivity
• More reflective than carbon or stainless steel

Fiber laser cutting advantages:

• Suitable for precise lightweight metal components
• Excellent for complex sheet-metal profiles
• No physical cutting tool means no tool wear or mechanical contact
• Widely applicable in modern fabrication

Typical applications:

• Automotive components
• Electronics housings
• Signage
• Transportation equipment
• Machinery covers
• Lightweight structural parts

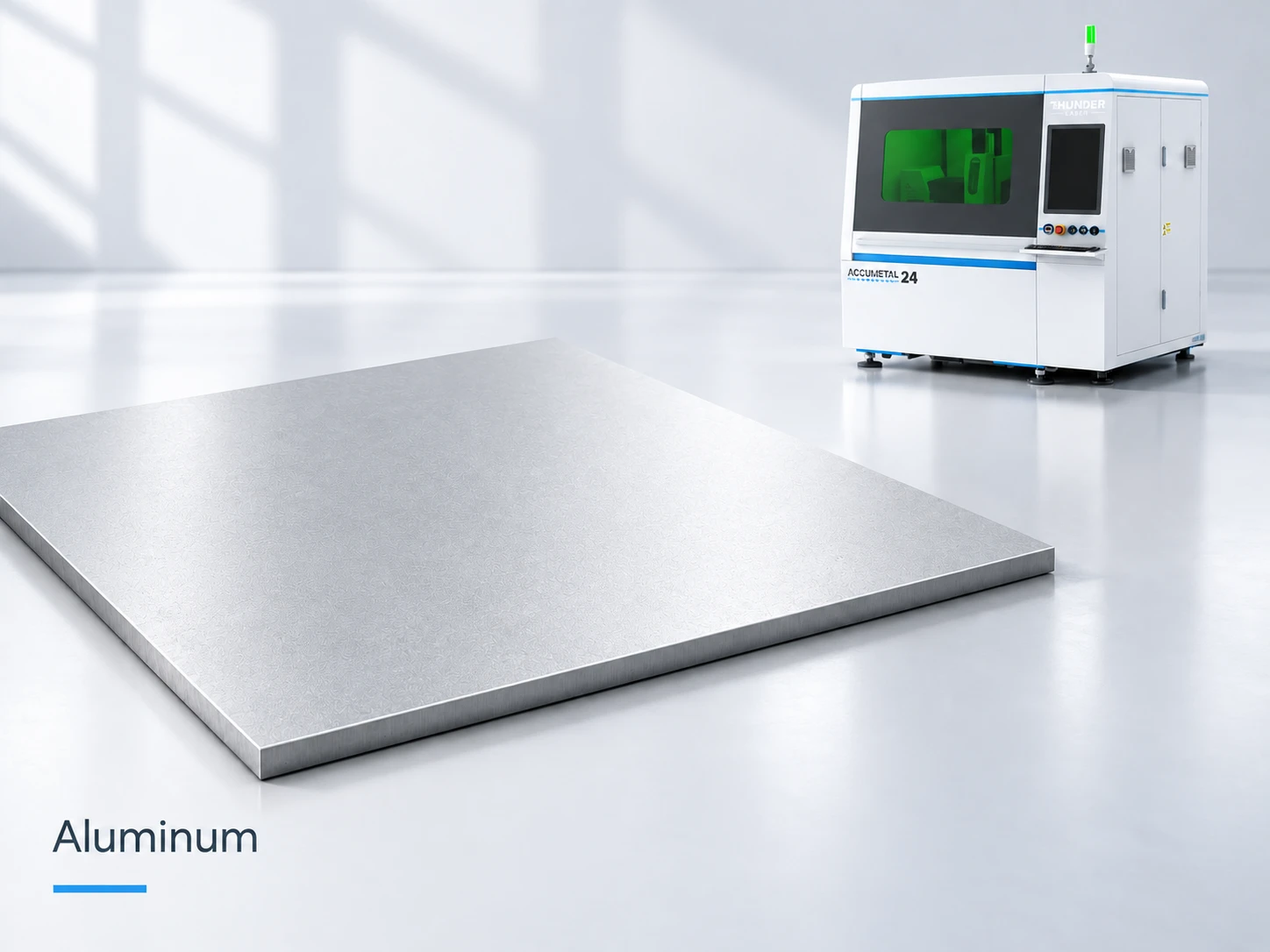

Aluminum samples processed with a fiber laser cutting machine.

2.4 Brass

Common grades: C26000 cartridge brass and other copper-zinc alloys.

Typical composition: C26000 contains approximately 68.5–71.5% copper, with zinc forming most of the balance.

Key properties:

• Copper-zinc alloy
• Good corrosion resistance
• Attractive gold-colored appearance
• Higher reflectivity than steel

Fiber laser cutting advantages:

• Suitable for detailed decorative and functional parts
• Enables intricate profiles without mechanical tooling
• Particularly useful for customized or small-batch metal components

Typical applications:

• Decorative panels
• Signs and lettering
• Hardware
• Electrical components
• Jewelry and accessories
• Interior design elements

Important: Brass is a reflective metal, so the fiber laser cutting machine should be designed to process reflective materials reliably.

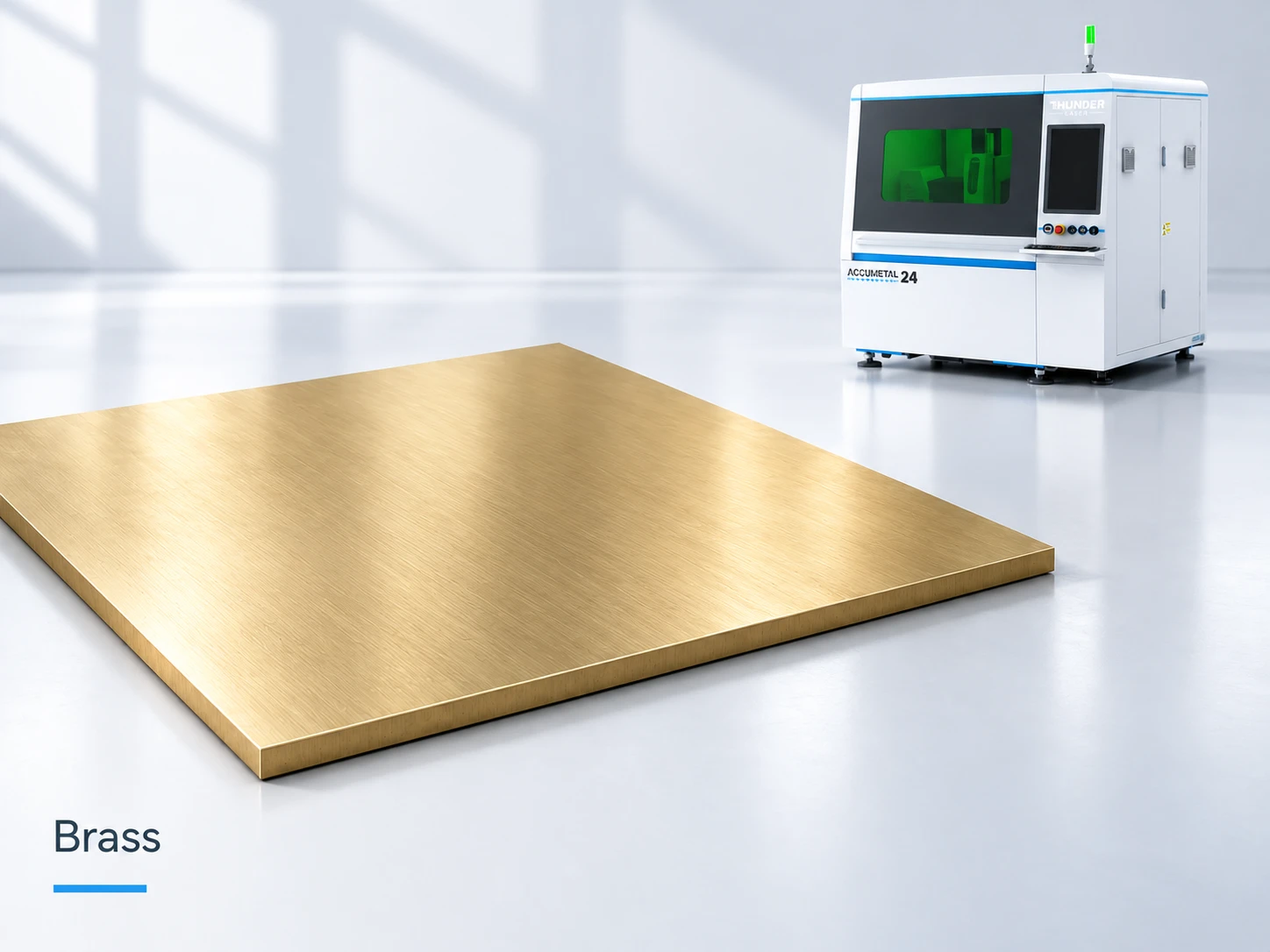

Brass samples processed with a fiber laser cutting machine.

2.5 Copper

Common grade: C11000 electrolytic tough pitch (ETP) copper.

Typical composition: C11000 contains at least 99.90% copper.

Key properties:

• Extremely high electrical conductivity
• Very high thermal conductivity
• Highly reflective
• Excellent corrosion resistance

Fiber laser cutting advantages:

• Enables precise production of conductive and electrical components
• Suitable for complex shapes that would be difficult to produce mechanically
• Useful for high-value precision parts

Typical applications:

• Busbars
• Battery components
• Electrical contacts
• Electronics
• Heat-management components
• Energy-storage systems

Important: Copper is generally more demanding than steel because of its high reflectivity and thermal conductivity. Confirm that the specific machine is rated for copper cutting.

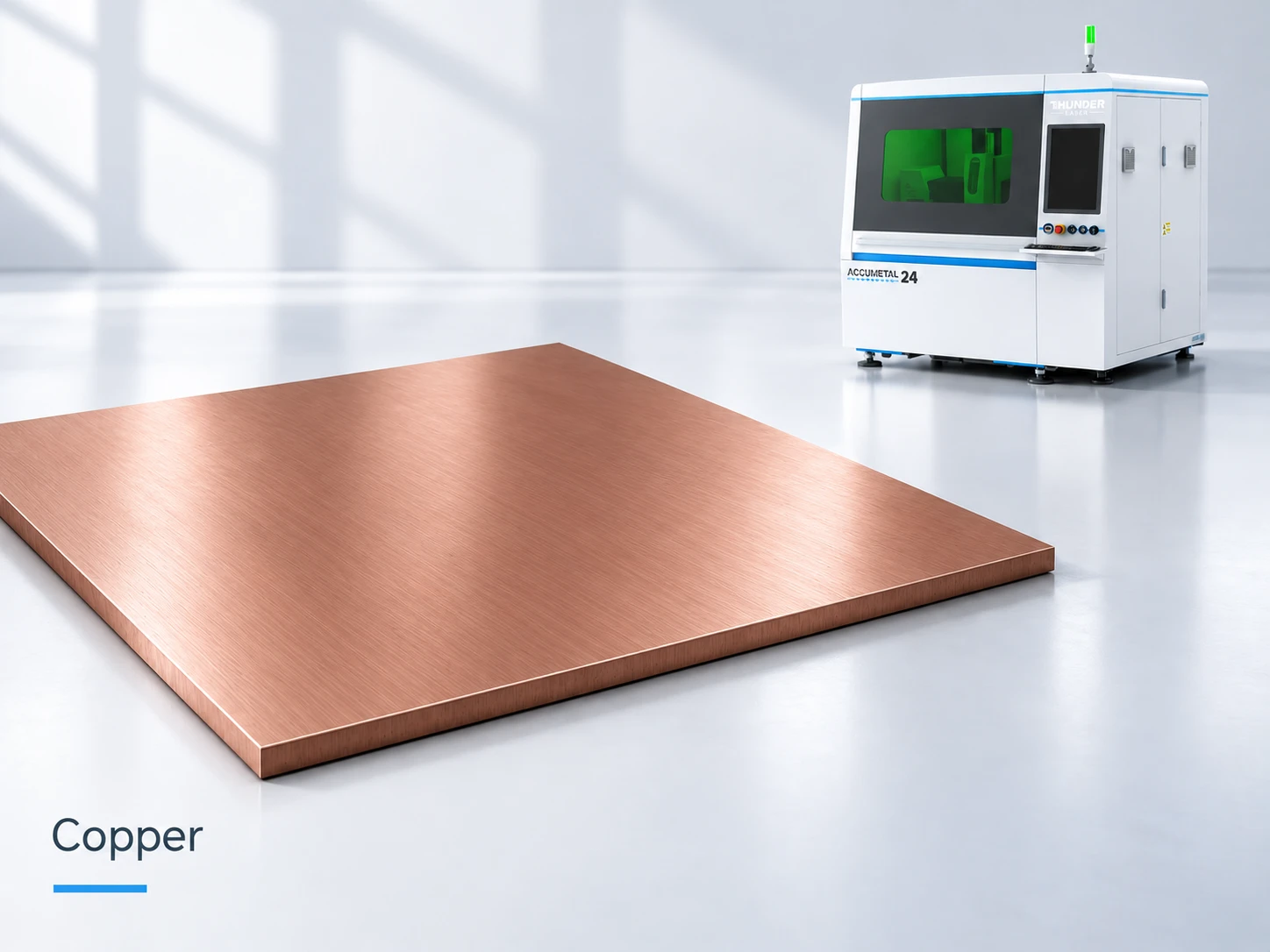

Copper samples processed with a fiber laser cutting machine.

2.6 Galvanized Steel

Common material: Zinc-coated carbon or mild steel sheet.

Typical composition: The base material is usually low-carbon steel with a protective zinc coating applied to the surface.

Key properties:

• Good corrosion resistance
• Lower cost than stainless steel for many applications
• Strong and easy to fabricate
• Available in sheet, coil, and structural products

Fiber laser cutting advantages:

• Well suited to high-volume sheet-metal parts
• Combines the structural properties of steel with corrosion protection
• Suitable for detailed profiles, ventilation patterns, and enclosure components

Typical applications:

• HVAC components
• Electrical cabinets
• Automotive parts
• Roofing and construction components
• Appliance components
• Outdoor equipment

Important: The zinc coating affects cutting behavior and fume generation, so coated materials should be processed with appropriate extraction and safety controls.

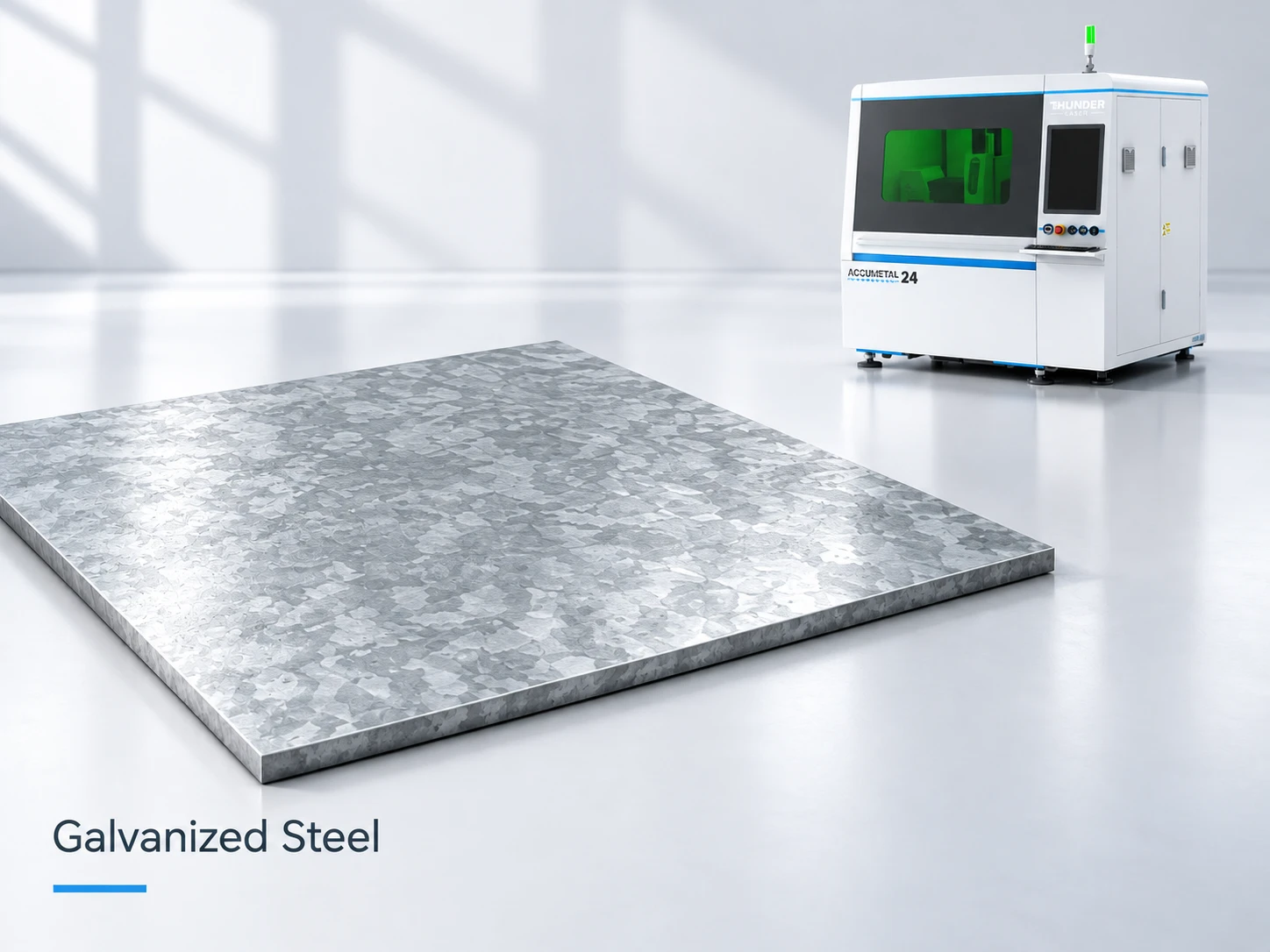

Galvanized steel samples processed with a fiber laser cutting machine.

2.7 Titanium

Common grades: Grade 2 commercially pure titanium and Grade 5 Ti-6Al-4V.

Typical composition:

• Grade 2: at least about 98.9% titanium
• Grade 5: approximately 5.5–6.75% aluminum, 3.5–4.5% vanadium, with titanium forming the balance

Key properties:

• High strength-to-weight ratio
• Excellent corrosion resistance
• Lightweight compared with steel
• Sensitive to oxidation during high-temperature processing

Fiber laser cutting advantages:

• Suitable for high-value precision components
• Allows complex shapes without mechanical contact
• Useful where tight geometry and material conservation matter

Typical applications:

• Aerospace components
• Medical devices
• Marine components
• Performance automotive parts
• Precision engineering

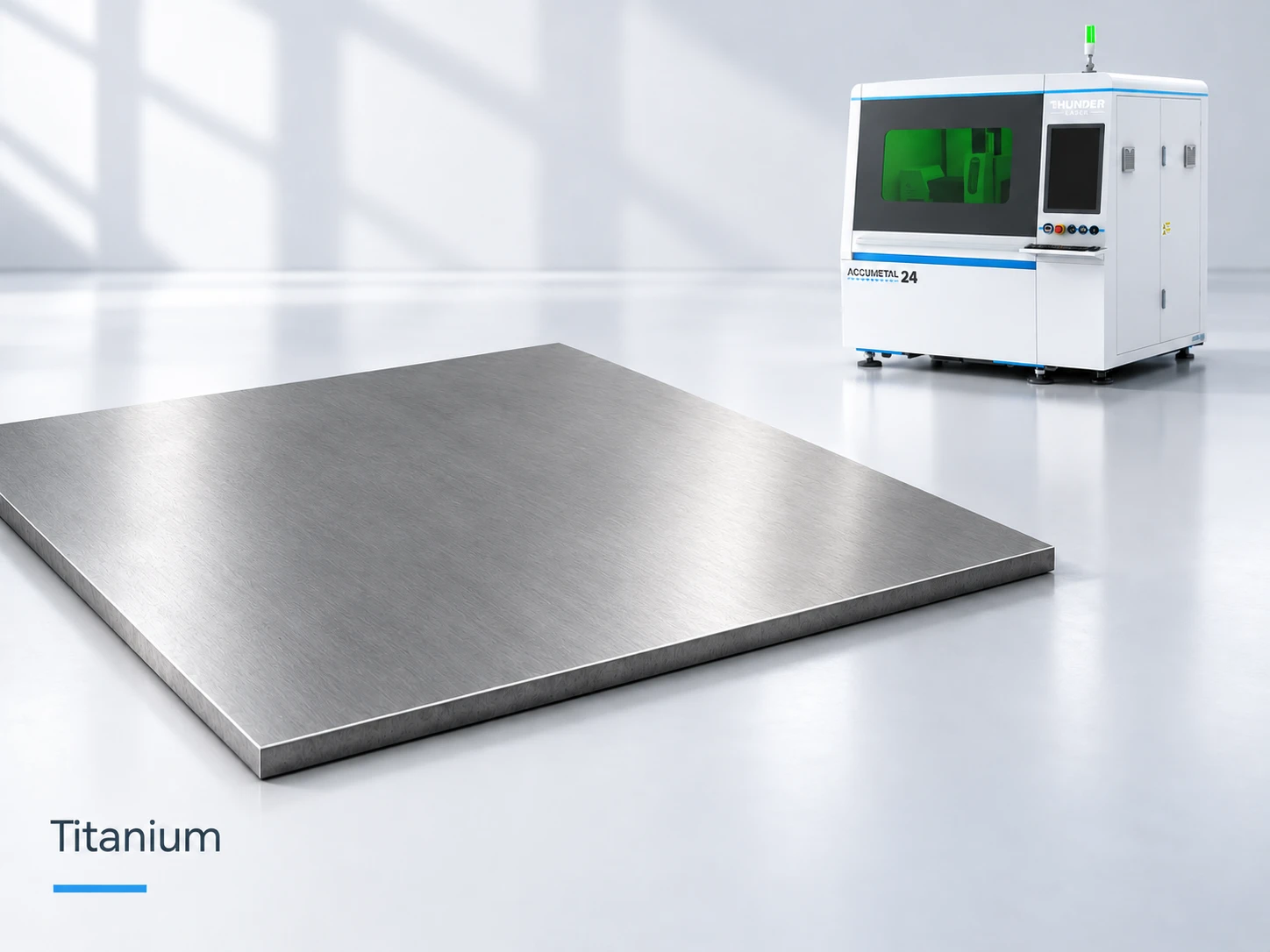

Titanium samples processed with a fiber laser cutting machine.

2.8 Nickel Alloys

Common grades: Inconel 625 and other nickel-based superalloys.

Typical composition: Inconel 625 contains at least 58% nickel, approximately 20–23% chromium, 8–10% molybdenum, and 3.15–4.15% niobium plus tantalum.

Key properties:

• Excellent corrosion resistance
• High-temperature strength
• Designed for demanding industrial environments
• Properties vary considerably between alloy grades

Fiber laser cutting advantages:

• Suitable for precision cutting of high-value specialty components
• Allows complex profiles without mechanical tool wear
• Useful for low-volume and specialized manufacturing

Typical applications:

• Aerospace
• Chemical processing
• Marine engineering
• Energy equipment
• High-temperature industrial components

Important: Nickel alloys vary significantly in composition and behavior. Compatibility should be evaluated by the exact alloy grade rather than treating all “nickel alloys” as the same material.

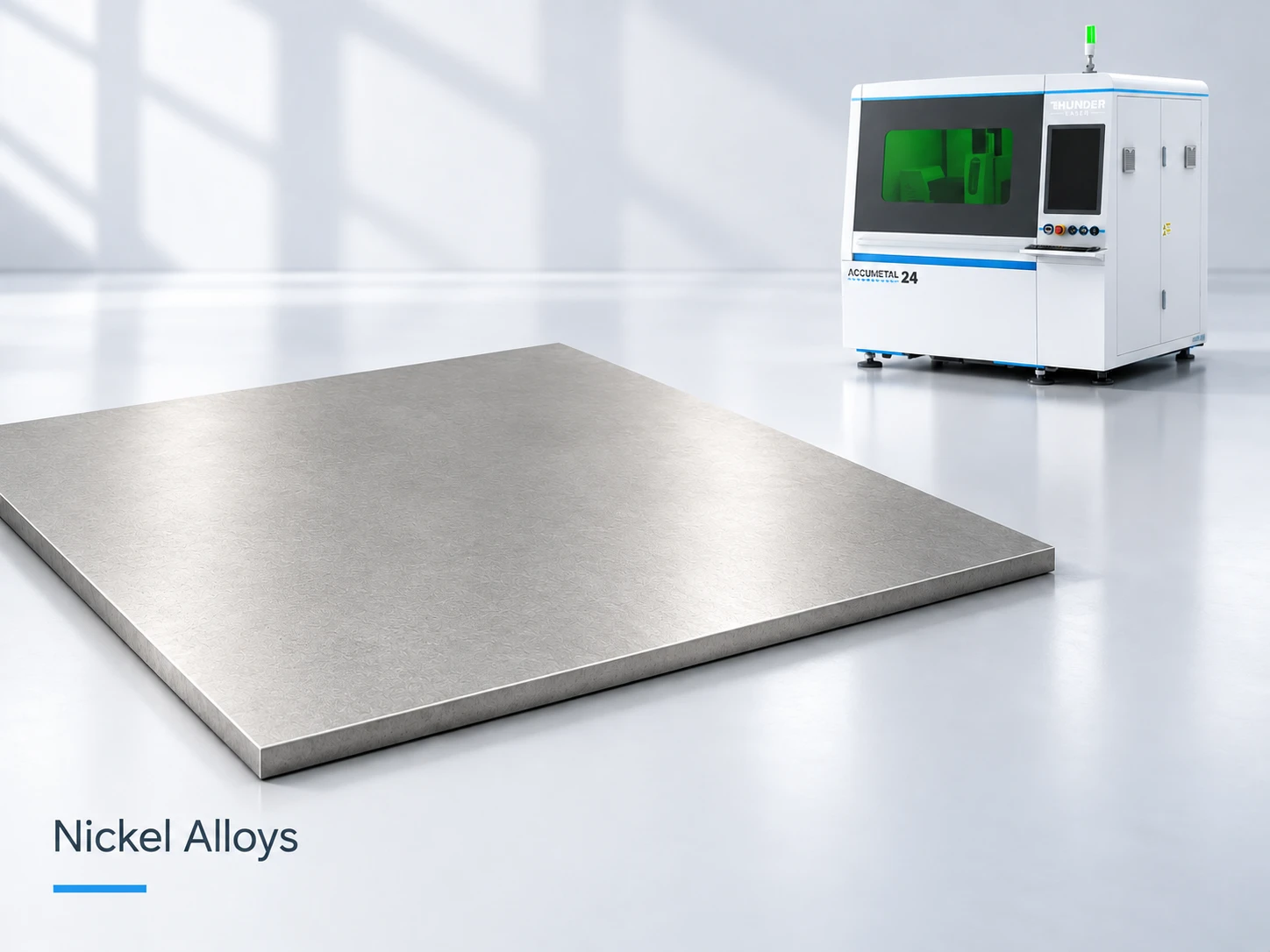

Nickel alloy samples processed with a fiber laser cutting machine.

3. Can Fiber Lasers Cut Coated or Finished Metals?

Yes, fiber laser cutting machines can process many coated or finished metals, but compatibility depends on both the base metal and the surface coating. The metal underneath may be suitable for fiber laser cutting, while the coating can affect cutting behavior, fumes, edge quality, or process consistency.

3.1 Galvanized Steel

Can it be cut? Yes.

• Galvanized steel is typically carbon or mild steel coated with zinc for corrosion resistance.
• The steel substrate is highly suitable for fiber laser cutting.
• The zinc coating can influence cutting behavior and produce additional fumes during processing.
• Common applications include HVAC parts, electrical cabinets, automotive components, and construction products.

3.2 Painted or Powder-Coated Metal

Can it be cut? Often, yes.

• The underlying metal may be fully compatible with fiber laser cutting.
• Paint or powder coating can burn, discolor, melt, or produce fumes near the cut edge.
• Coating composition should be checked before processing, especially for unknown or industrial coatings.
• If appearance is important, the finished edge should be tested before production.

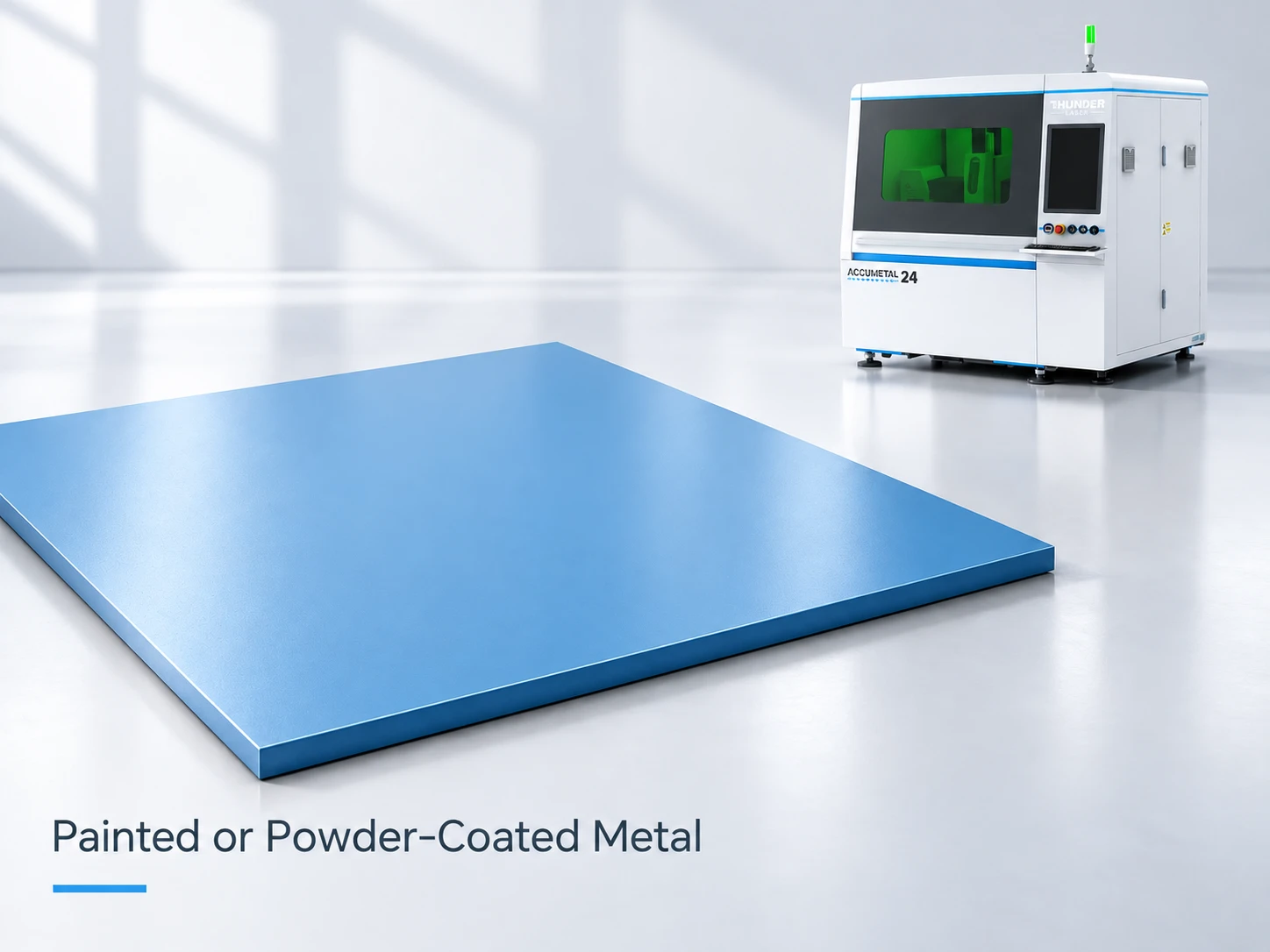

Painted and powder-coated metal samples for fiber laser cutting.

3.3 Plated Metal

Can it be cut? Often, depending on the substrate and plating.

• Examples include nickel-plated, chrome-plated, or zinc-plated metal.
• Both the base material and the plating layer can affect how the material responds to the laser.
• Thin plating generally behaves differently from a thick or multi-layer coating, so testing is recommended for unfamiliar materials.

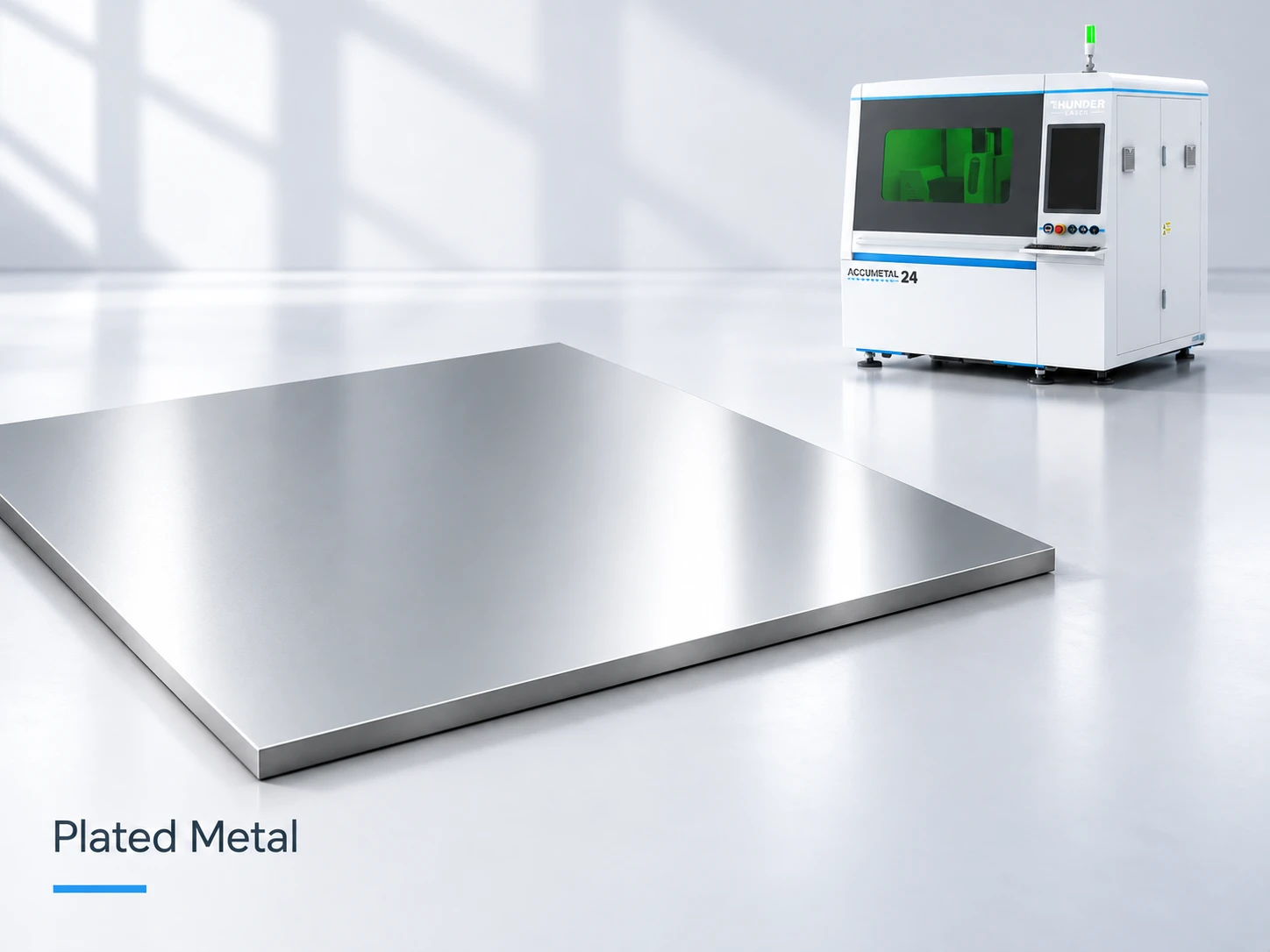

Plated metal samples for fiber laser cutting applications.

3.4 Anodized Aluminum

Can it be cut? Yes.

• The aluminum substrate remains suitable for fiber laser cutting.
• The anodized surface may show discoloration or visible changes near the cut edge.
• This matters most when the finished surface will remain visible in the final product.

3.5 Key Takeaway

A coated metal should not be judged only by the base material. Before cutting, consider:

• Base metal type
• Coating or plating material
• Coating thickness
• Surface finish
• Fume and extraction requirements
• Whether the finished edge must remain visually clean

For unfamiliar coated materials, a sample cut is the safest way to confirm compatibility before full production.

4. What Materials Are Not Typically Cut With a Fiber Laser Cutting Machine?

Industrial fiber laser cutting machines are designed primarily for metal cutting. While the laser may interact with some non-metal materials, that does not necessarily make them practical or recommended for fiber laser cutting.

Materials that are not typically processed with a fiber laser cutting machine include:

• Wood – better suited to CO₂ laser cutting
• Acrylic – CO₂ lasers are generally the preferred choice for cutting acrylic
• Glass – not a standard material for fiber laser cutting machines
• Leather – typically processed with CO₂ lasers
• Fabric and textiles – better suited to laser systems designed for non-metal materials
• Paper and cardboard – generally processed with CO₂ laser cutters
• Many plastics – compatibility varies by polymer, and some plastics can release hazardous fumes when heated

The important distinction is that a fiber laser cutting machine for metal is optimized around metallic materials. If your production involves both metals and non-metals, the appropriate laser technology should be selected according to the material rather than assuming one laser source is suitable for everything.

5. What If Your Metal Is Not Listed?

A metal not appearing in a general compatibility chart does not automatically mean it cannot be fiber laser cut. Specialty alloys, uncommon grades, and coated metals can behave differently even when they belong to the same general material family.

Before processing an unfamiliar metal, check:

• Exact metal type – identify the base material
• Alloy or grade – for example, different stainless steel or aluminum grades may behave differently
• Coating or plating – zinc, paint, powder coating, anodizing, or metallic plating can affect processing
• Surface condition – oxidation, contamination, finish, or protective films may influence the result
• Machine compatibility – confirm that the specific fiber laser cutting system supports the material
• Manufacturer test data – use verified cutting results where available

For uncommon alloys or production-critical parts, a sample cutting test is the most reliable way to confirm material compatibility before moving into full production.

Conclusion

Fiber laser cutting machines are built to handle a wide range of metals, from mild steel and stainless steel to aluminum, brass, copper, galvanized steel, titanium, and specialty alloys. But the right machine starts with the materials you actually need to cut—not just a general compatibility list.

Before choosing a system, confirm your metal type, grade, coating, and production requirements. For reflective metals, specialty alloys, or unfamiliar materials, a real sample cut can give you far more confidence than specifications alone.

Not sure whether a fiber laser cutting machine is right for your material? Send Thunder Laser your metal type, grade, thickness, and application requirements. Our team can help evaluate your cutting needs, recommend a suitable configuration, and arrange a sample cutting test where appropriate.

Explore the Thunder AccuMetal Series or talk to our laser experts to find the right metal cutting solution for your application.
